Heavy Duty Connector, 6 Pin, AC 500V / 16A
from
$81.43
Ex Tax: $81.43
- Stock: In Stock
- Model: SCJ009624
- SKU: SCJ009624
Products Sold: 0
Product Views: 253
Ask a Question About This Product
- Description
Brief
Heavy duty connector 6 pin has optional 4 shell items, working voltage 500VAC, working current 16A, insertion/withdrawal cycles 500 times, temperature range -40℃~+125℃ (-40℉~+257℉) and protection class IP65. The wiring form of 6 pin heavy duty connector is screw connection.
Description
6 pin heavy duty connector with working voltage AC 500V and current 16A.
Specification:
| Basic | Model | SCJ009624 | SOCOJE-HDCN-HE-006-2 | SOCOJE-HDCN-HE-006-3 | SOCOJE-HDCN-HE-006-4 |
| Shipping weight | 1kg | ||||
| Standard | DIN EN 60 664-1, DIN EN 61 984 | ||||
| Number of pins | 6 pin + PE | ||||
| Certificate | CCC, CE, ROHS, RU, CSA, TUV | ||||
| Inserts | Item | HE-006-M | HE-006-M | HE-006-M | HE-006-M |
| Working current | 16A | ||||
| Working voltage | 500V | ||||
| Rated pulse voltage urms | 6kV | ||||
| Pollution degree | 3 (C) | ||||
| Insulation resistance | ≥1010Ω | ||||
| Material | Polycarbonate | ||||
| Working temperature Range | -40℃~+125℃ (-40℉~+257℉) | ||||
| Flammability according to UL94 | V0 | ||||
| Working voltage according to UL / CSA | 600V | ||||
| Insertion / withdrawal cycles | ≥500 | ||||
| Contacts | Item | HE-006-F | HE-006-F | HE-006-F | HE-006-F |
| Material | Copper alloy | ||||
| Surface treatment | Silver/ Gold plating | ||||
| Contact resistance | ≤1mΩ | ||||
| Wiring form | Screw connection | ||||
| Wire specification | 0.14-4.0mm2 AWG 26-12 | ||||
| Tightening torque | 0.5N·m | ||||
| Shell | Hood item | H6B-TS-R0-M20 | H6B-TG-R0-M20 | H6B-TS-R0-M20 | H6B-TG-R0-M20 |
| Hood thread | M20 | M20 | M20 | M20 | |
| Housing item | H6B-AG | H6B-AG | H6B-SGR-2M20 | H6B-SGR-2M20 | |
| Housing thread | - | - | M20 | M20 | |
| Material | Cast aluminum | ||||
| Surface treatment | Powder-coated, gray | ||||
| Interlocking element | Interlocking method: metal elastic pressing, material: galvanized iron | ||||
| Sealing element | NBR | ||||
| Applicable temperature range | -40℃~+125℃ (-40℉~+257℉) | ||||
| Flammability class | V0 | ||||
| Protection class | IP65 | ||||

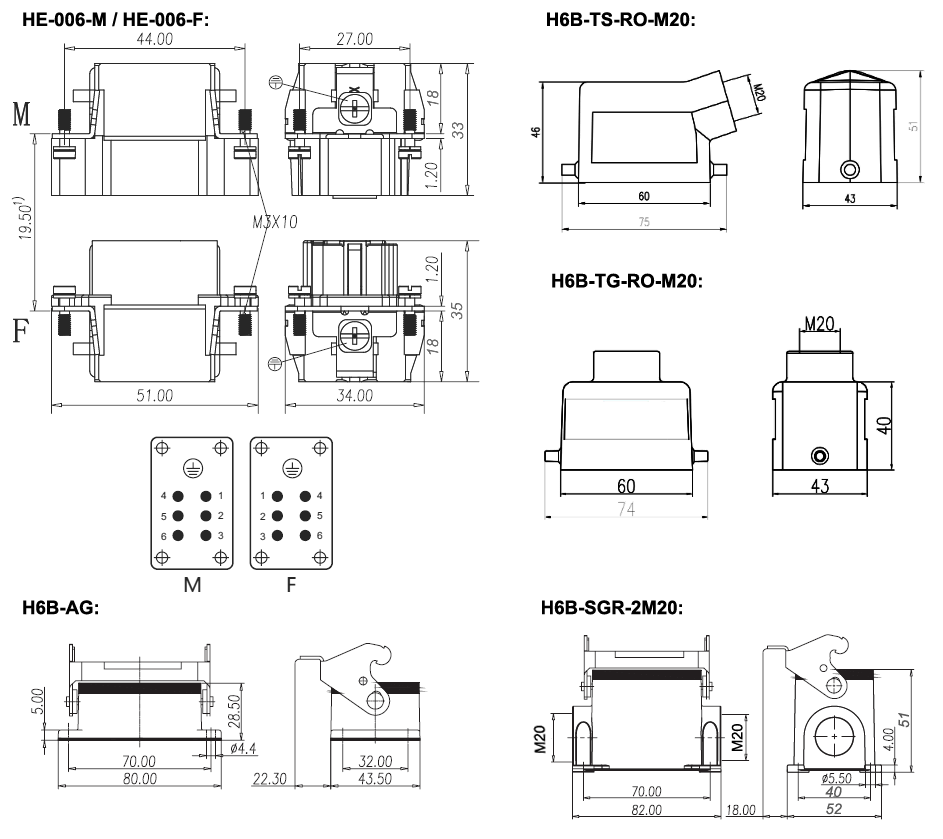

Dimension (unit: mm):
Tips: 4 functions of the heavy duty connector shell
- Shell is the electrical insulation between connectors. It can avoid interference between signals.
- Fix the position of heavy duty connector, it is conducive to the insertion and removal and the stability of the position.
- Provide mechanical protection and support for inserts
- Separate the heavy duty connector from the application environment, reduce the pollution and corrosion of the environment to the connector, and extend the service life of the connector.
