New

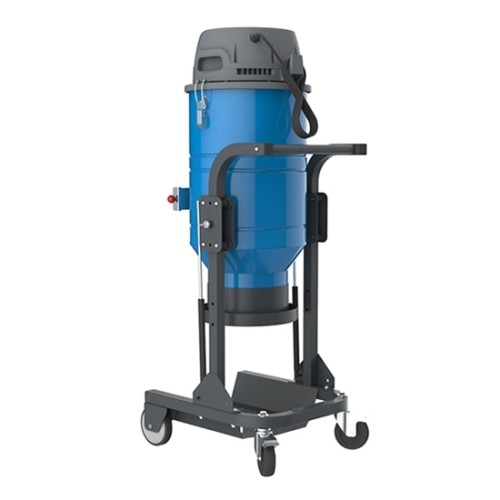

Continuous Duty Industrial Vacuum Dust Extractor
from
$3,416.54
Ex Tax: $3,416.54
- Stock: In Stock
- Model: SCJ009824
- SKU: SCJ009824
Products Sold: 0
Product Views: 274
Ask a Question About This Product
- Description
Brief
Industrial vacuum dust extractor can continuous duty for a long time. High efficiency HEPA filter, cleaning method is jet pulse filter cleaning or automatic self-cleaning. 3.6kW high power, working voltage is 240V single-phase. It is suitable for working conditions with small particle size and large amount of dust.
Description
Features
- The industrial vacuum dust extractor is especially suitable for working conditions with small particle size and large amount of dust such as floor polishing and shot blasting.
- Structure is compact, fuselage height is adjustable, it is convenient for transit transportation.
- Continuous bag design, convenient for loading and unloading. The bag can be pulled continuously. After a certain amount of dust is collected, use a cable tie to seal and shear the bag to continue using it.
- Pressure loss of filter barrel is small, and filtering accuracy is high.
Specification
| Model | SCJ009824 | SOCOJE-IVC-T303 |
| Power (kW) | 3.6 | |
| Voltage | 240V 50/60Hz | |
| Vacuum (mBar) | 200 | |
| Airflow (m3/h) | 600 | |
| Noise (dbA) | 80 | |
| Filter Cleaning Mode | Jet pulse filter cleaning | Automatic self-cleaning |
| Dimension (mm) | 660*675*1200 | |
| Number Of Filter Element* | 1, 2, 4, 6, 8, 10 | |
| Certification | CE | |
| Filter Area (cm2) | 30000 | |
| Filter Type | HEPA filter TORAY polyester | |
| Filter Capacity (H11) | 0.3um>99.95% | |
*Note: Filter element life is 3 months, please select according to your needs.

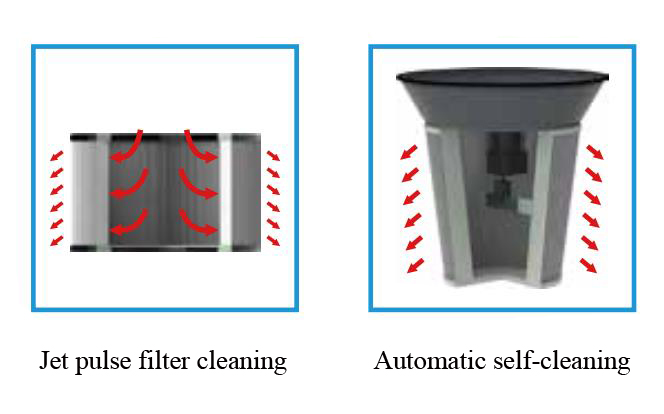

Filter Cleaning Mode Diagram of Industrial Vacuum Dust Extractor

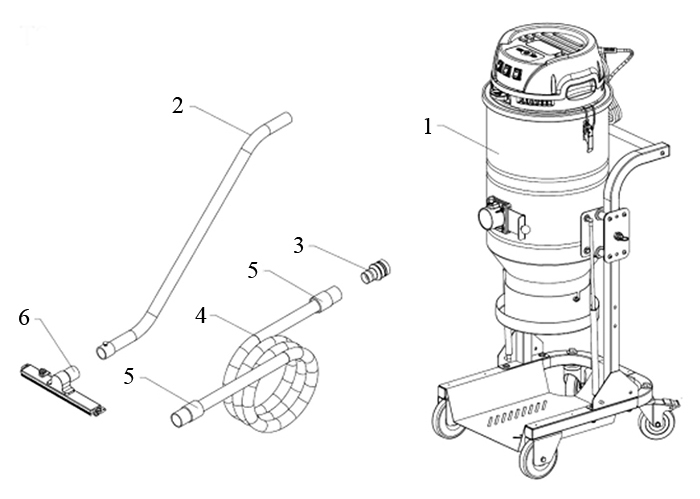

Industrial Vacuum Dust Extractor Accessories and Packing List
| P/N | Description | Unit | Quantity |
| 1 | Vacuum Dust Extractor Host | pc | 1 |
| 2 | D50 S wands | pc | 1 |
| 3 | D70/50 reducer | pc | 1 |
| 4 | D50 EVA anti static | meter | 7.5 |
| 5 | D50 hose cuff | pc | 1 |
| 6 | D50 floor brush | pc | 1 |

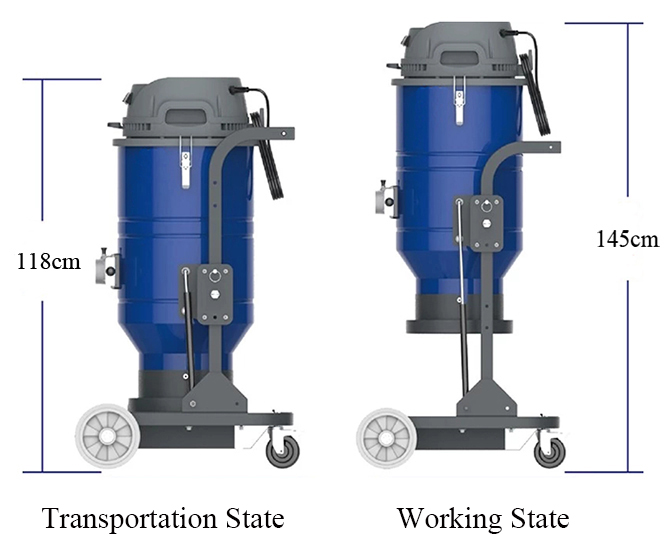

Adjustable Height
Tips: Precautions of continuous duty industrial vacuum dust extractor
- Ground as much as possible (because static electricity may be generated).
- When using industrial vacuum dust extractor to absorb water, it is best to remove the dust bag.
- If the suction of industrial vacuum cleaner drops or there is no suction, check the hose for blockage. If there is no blockage, immediately turn off the power and check if the vacuum dust extractor motor is operating normally. If it is abnormal, please contact the technician immediately.
- When using industrial vacuum dust extractor to absorb relatively small dust, should install primary filter bags and high-efficiency filter bags. It can reduce the damage to motor caused by excessive dust, thereby increasing the life of the vacuum cleaner.
