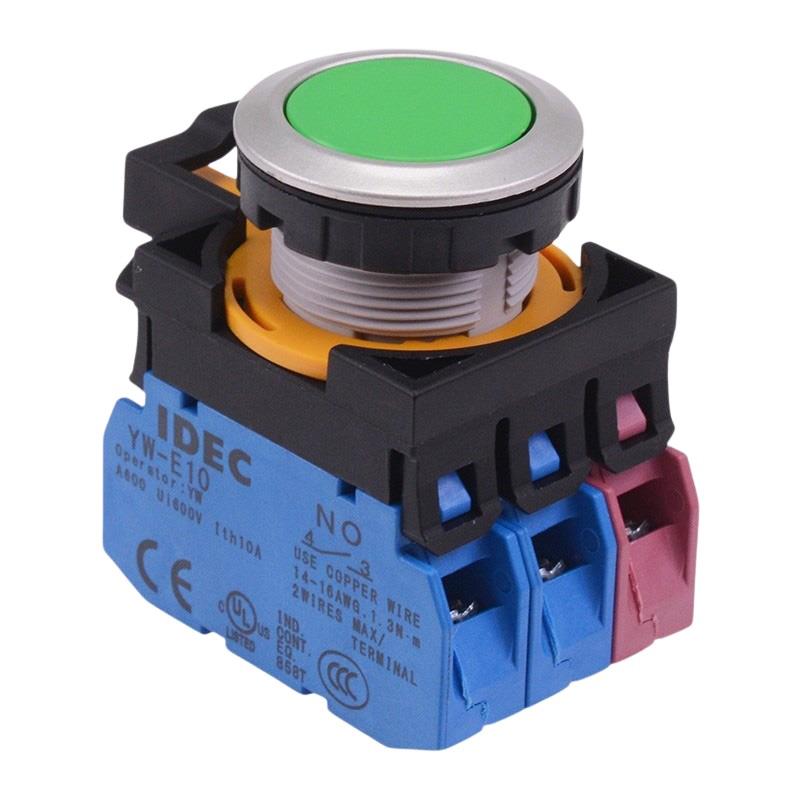

CW4B-M1E21G Green Metallic Momentary Push Button Switch 2NO-1NC IP65

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Green
Contact Configuration	2NO-1NC
Head Type	Flush
Contact Rating	8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating	10A
Illuminated	No
Rated Thermal Current	10A
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +60°C
Panel Cut Out	22.3mm
Product Series	CW
Terminal Type	Screw
Voltage Rating	300V

Description

The CW4B-M1E21G is a flush mount industrial push button switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

Green button

2NO-1NC contacts

Screw contact blocks

Momentary operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
