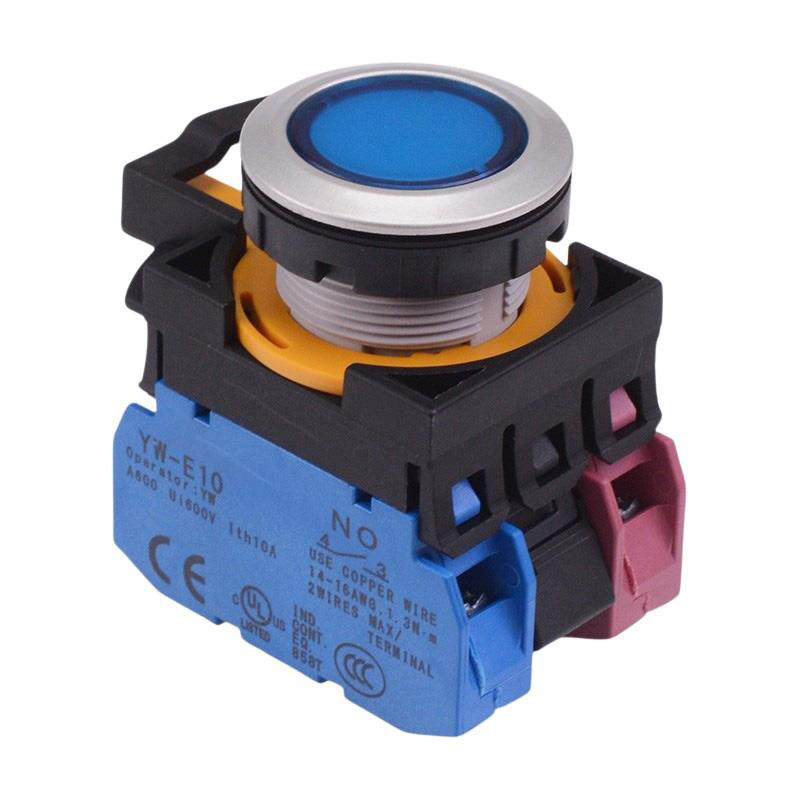

CW4L-M1E11Q4S Blue 24V illuminated Metallic Momentary Push Button Switch 1NO-1NC IP65

CW4L-M1E11Q4S Blue 24V illuminated Metallic Momentary Push Button Switch 1NO-1NC IP65
CW4L-M1E11Q4S Blue 24V illuminated Metallic Momentary Push Button Switch 1NO-1NC IP65
from
$45.03
Ex Tax: $45.03
5 or more $40.07
10 or more $37.37
25 or more $35.12
50 or more $33.32
  • Stock: In Stock
  • Model: SCJ012200
  • SKU: SCJ012200
Products Sold: 0
Product Views: 31
  • Specifications
Attributes List
ActuationMomentary
ColourBlue
Contact Configuration1NO-1NC
Head TypeFlush
Contact Rating8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating10A
IlluminatedYes
Illumination ColourBlue
Illumination Voltage24V
Rated Thermal Current10A
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +55°C
Panel Cut Out22.3mm
Product SeriesCW
Terminal TypeScrew
Voltage Rating300V
  • Description
The CW4L-M1E11Q4S is a flush mount industrial push button switch featuring a sleek and compact metallic design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The metallic design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek metallic design makes the switch perfect for use with industrial machines and control panels.

  • Blue Button
  • 24V LED illumination
  • 1NO-1NC contacts
  • Screw contact blocks
  • Momentary operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • CW4L-M1E11Q4S Blue 24V illuminated Metallic Momentary Push Button Switch 1NO-1NC IP65
