21" x 17" Socoje CNC Column Drill Press For Metal Drilling 1pc
from
$15,900.00
Ex Tax: $15,900.00
- Stock: In Stock
- Model: SCJ004464
- SKU: SCJ004464
Products Sold: 0
Product Views: 218
Ask a Question About This Product
- Description
21" x 17" Socoje CNC Column Drill Press For Metal Drilling 1pc
About this product

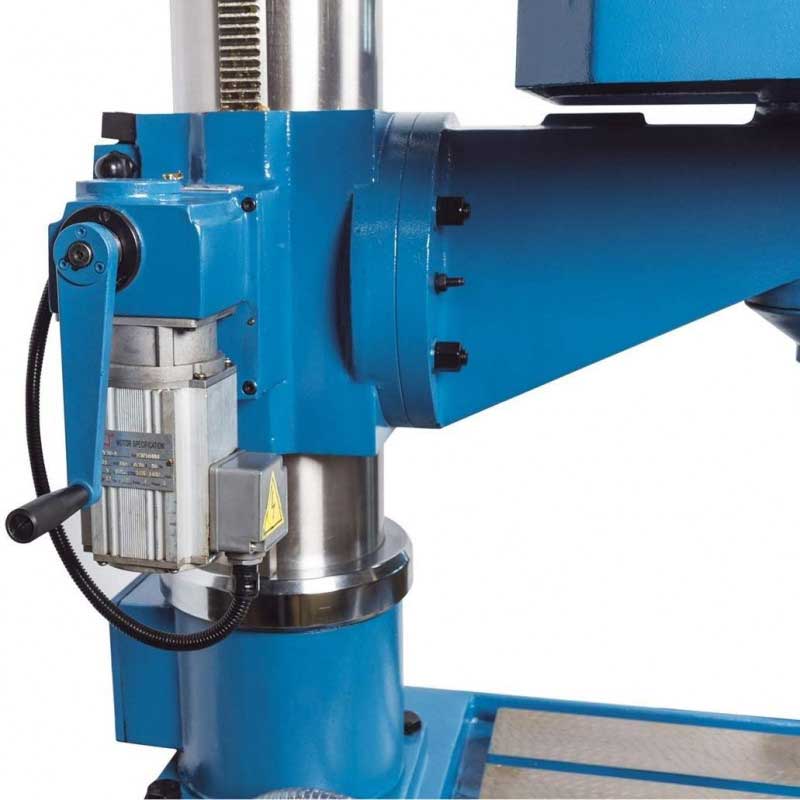

- Motorized table height adjustments

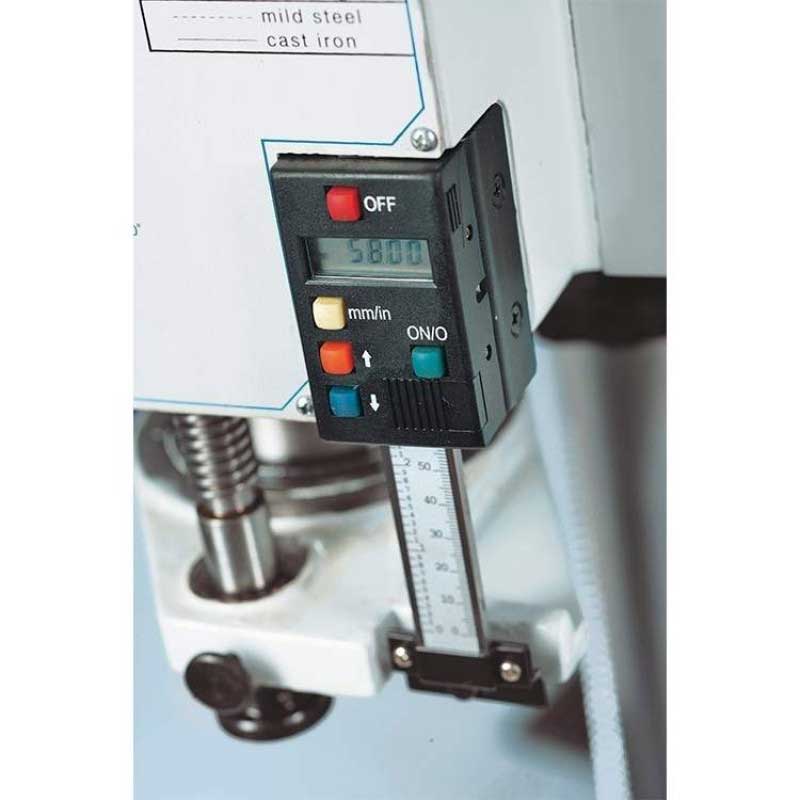

- Digital boring depth display

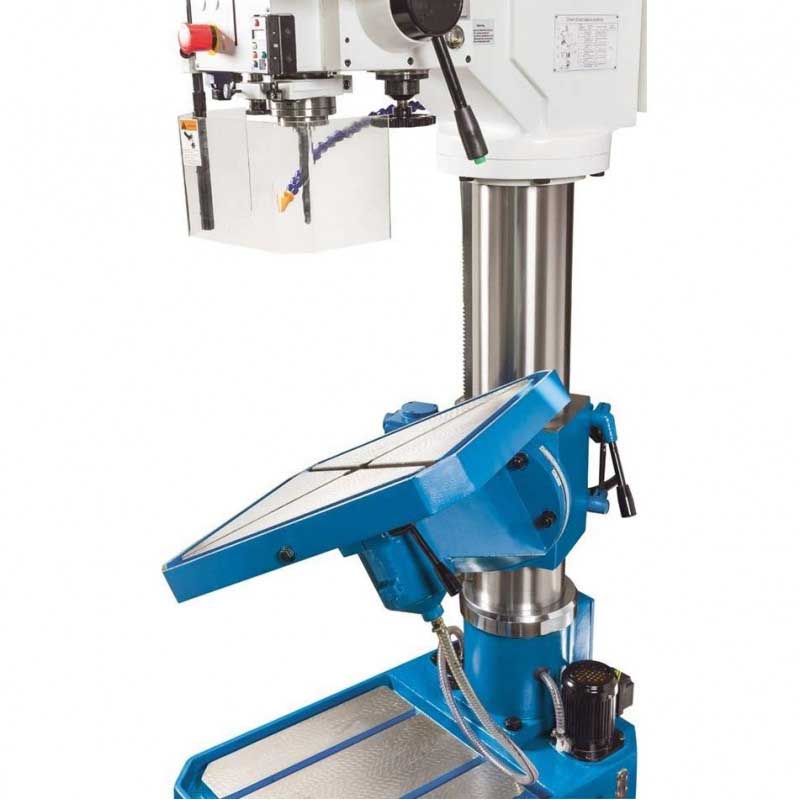

- Large drilling table with circumferential coolant groove, height adjustement, and ± 45° swivel range
- Tapping unit is standard
Knuth Machine Tools offers a wide variety of drill presses from bench-type column drill presses to CNC drill presses. Knuth machines ensure ease of use from their simple and user-friendly design. All of the machines go through testing by trained professionals in Germany and is known for its high reliability and precision.
- Very rigid construction with thick-walled column and large throat
- Infinitely variable speed adjustment with back gearing and digital speed display
- 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
- Motorized table height adjustments
- Digital boring depth display
- Large drilling table with circumferential coolant groove, height adjustement, and ± 45° swivel range
- Tapping unit is standard
| SSB 40 F Super | |
| Working Area | |
| Drilling Capacity | 1.57 in |
| Tapping Capacity, Steel | M 24 |
| Table Set up Area | 21 x 17 in |
| Quill Stroke | 7 in |
| Manual Table Travel | 22.44 in |
| Powered Table Travel | 16.93 in |
| Table Swivel Range (max) | ± 45° |
| Column Diameter | 6 in |
| Spindle Nose-to-table Distance (max) | 26 in |
| Spindle Nose-to-foot Distance | 47 in |
| Throat | 13 in |
| Headstock | |
| Spindle Speed | 60 - 2600 rpm |
| Spindle Mount | MT 4 |
| Feed | |
| Quill Feed | 0.004; 0.008; 0.012; 0.016 (4) in/R in/R |
| Drive Capacity | |
| Motor Rating Main Drive | 2.7 HP |
| Measures and Weights | |
| Overall Dimensions (length x width x height) | 39.37 x 25.59 x 87.4 in |
| Weight | 1100 lbs |
