23" x 18" Socoje Production Drill Press - 220Vac, 3-phase, 60Hz 1 set
from
$17,900.00
Ex Tax: $17,900.00
- Stock: In Stock
- Model: SCJ004463
- SKU: SCJ004463
Products Sold: 0
Product Views: 222
Ask a Question About This Product
- Description

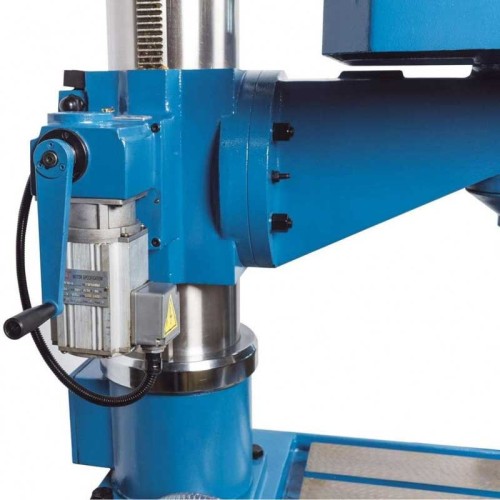

23" x 18" Socoje Production Drill Press - 220Vac, 3-phase, 60Hz 1 set
About this product
- Motorized table height adjustments
- Digital boring depth display
- Large table with circumferential coolant groove, height and tilt adjustment
- Tapping unit is standard
Knuth Machine Tools offers a wide variety of drill presses from bench-type column drill presses to CNC drill presses. Knuth machines ensure ease of use from their simple and user-friendly design. All of the machines go through testing by trained professionals in Germany and is known for its high reliability and precision.
- Very rigid construction with thick-walled column and large throat
- Infinitely variable speed adjustment with back gearing and digital speed display
- 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
- Motorized table height adjustments
- Digital boring depth display
- Large table with circumferential coolant groove, height and tilt adjustment
- Tapping unit is standard
| SSB 50 F Super | |
| Working Area | |
| Drilling Capacity | 1.97 in |
| Tapping Capacity, Steel | M 30 |
| Table Set up Area | 23 x 18 in |
| Quill Stroke | 8 in |
| Manual Table Travel | 20.87 in |
| Powered Table Travel | 16.14 in |
| Table Swivel Range (max) | ± 45° |
| Spindle Nose-to-table Distance (max) | 23 in |
| Spindle Nose-to-foot Distance | 46 in |
| Throat | 14 in |
| Headstock | |
| Speed Range | 50 - 2200 rpm |
| Spindle Mount | MT 4 |
| Feed | |
| Quill Feed | 0.004; 0.008; 0.012; 0.016 (4) in/R in/R |
| Drive Capacity | |
| Motor Rating Main Drive | 3 HP |
| Measures and Weights | |
| Overall Dimensions (length x width x height) | 45.28 x 26.77 x 92.91 in |
| Weight | 1430 lbs |
