Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
0 reviews - Write a review
from
$1,999.00
Ex Tax: $1,999.00
  • Stock: In Stock
  • Model: SCJ004454
  • SKU: SCJ004454
Products Sold: 0
Product Views: 185
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Model NumberVM18L
Item Number10203185
Table size:19-3/4" x 5 - 1/2"
Max. Drilling Capacity5/8"
Max. End Milling Capacity5/8"
Max. Face Milling Capacity2"
Spindle Stroke2"
Range of  Spindle SpeedsVariable 100-2250 rpm
Taper of SpindleR8
Drawbar7/16"-20
GROSS WEIGHT197 lbs
Max. Distance Spindle to Table10-7/8"
Max. Distance Spindle to Column6-5/8"
Packing Size20" x 21-1/4"x32-7/8"
T-Slot Size3 @ 3/8"
T-Slot Centers1-5/8"
Cross Travel (Y-Axis)5-1/2"
Longitudinal Travel (X-Axis)13"
Power RequirementSingle Phase 110V 60Hz
Vertical Travel (Z-Axis)10-7/8"
Table Leadscrew Pitch10 TPI (.100" Per Turn)
Headstock Tilt Lef&Right±90°
Motor Power (Brushless type)1 HP
Net weight155 lbs
  • Description
About this product

1.  3rd generation small compact mill with largest table, tabel travel and motor power in its class, can take on a huge range of workpiece sizes

2. Big powerful 1 HP (750W) Brushless DC Variable Speed Motor

3. Single speed GATES tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning

4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading

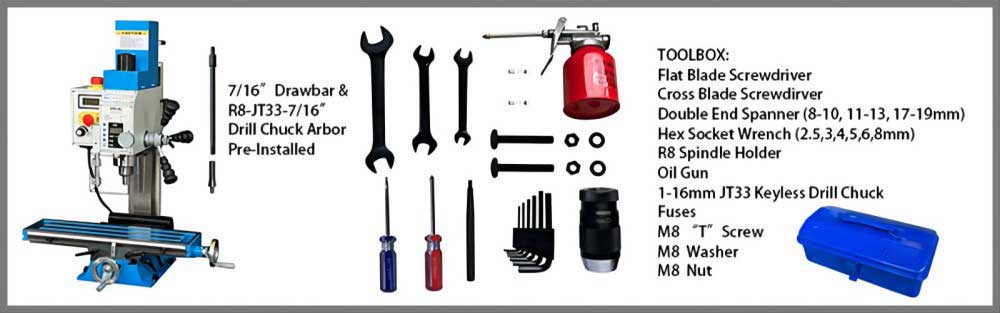

STANDARD ACCESSORIES:

- Keyless drill chuck capacity 5/8" with JT33 taper

- Drill chuck arbor R8/JT33

- 7/16"-20 Drawbar

- Toobox & tools

- Technical documentation

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

New updated features with Keyless drill Chuck, Metal oil gun & Metal toolbox

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

·   Spindle RPM can be monitored on the digital readout .

·   Spindle movement can be monitored on depth ruler in both inch or metric way

·  VM18L has 1HP POWERFUL brushless motor with silent running.  Compare to old DC motor with brush, no need to change the carbon brush any more.

·  High quality electronics used throughout machine for long term reliability

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle
Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

· VM18L precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"

· A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.

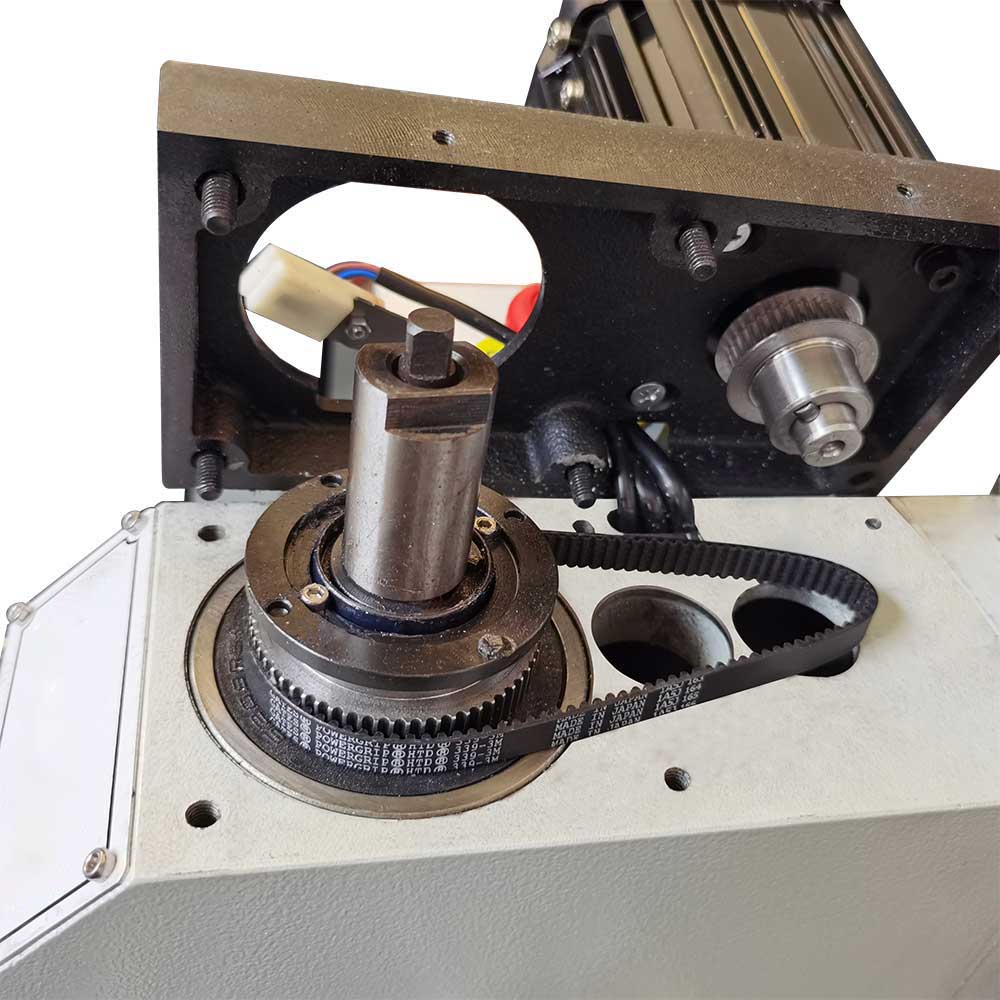

·  Single speed belt drive system provides more quiet and easy operation , avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)

· GATES Tooth belt provide strong and precision transmission

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

· The dovetail rails are equipped with adjustable taper inserts for greater wear resistance.

·  VM18L features tapered gibs with double locks which adds accuracy and rigidity

    Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

    Dovetail column

      Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

      Mill head can be tiltled 90 degress

        Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

        ·  Loosen nut and bolt to adjust the mill head angle
          Socoje VM18L 5-1/2" x 20" Benchtop Milling Machine Variable Speed 100-2250 RPM 1 HP(750W) Brushless Motor Mini Mill Drill with R8 Spindle

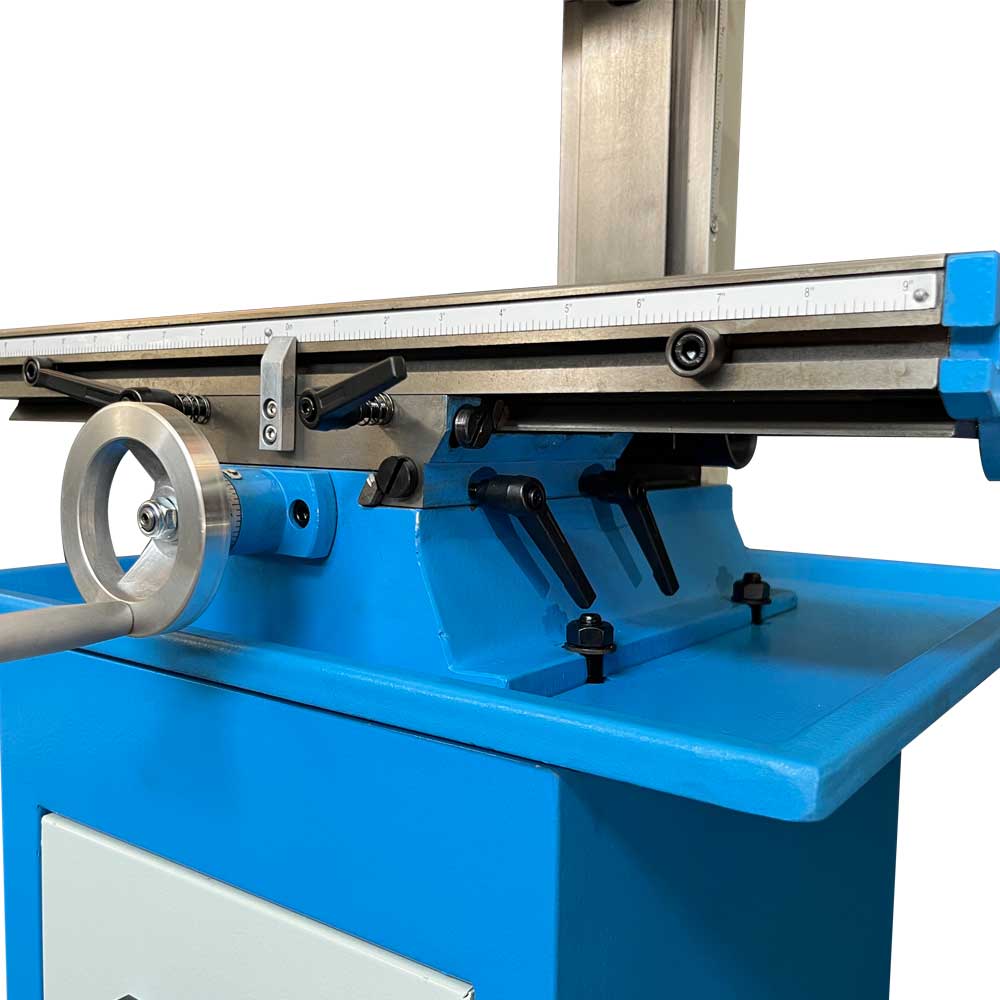

          All leadscrews are true inch pitch screws. Large dials with .002" graduation for easier reading
