Socoje VM32L 8" x 33" Milling Machine Variable Speed 100-2250 RPM 2HP Brushless Motor Mill Drill w/3-Axis DRO, Power Feed and Elevato Motor

Buy Now

Specifications

attribute-list
Model Number	VM32L-DEP
Item Number	10203325
Table size:	33" x 8 - 1/4"
Max. Drilling Capacity	1-1/4"
Max. End Milling Capacity	3/4"
Max. Face Milling Capacity	3"
Spindle Stroke	2-3/4"
Range of Spindle Speeds	Variable 100-2250 rpm
Taper of Spindle	R8
Drawbar	7/16"-20
GROSS WEIGHT	598 lbs
Max. Distance Spindle to Table	18-1/2"
Max. Distance Spindle to Column	8-1/4"
Packing Size	50.4" x 27.55"x48"
T-Slot Size	3 @ 9/16"
T-Slot Centers	2-1/2"
Cross Travel (Y-Axis)	8-5/8"
Longitudinal Travel (X-Axis)	22-1/2"
Power Requirement	Single Phase 110V 60Hz
Vertical Travel (Z-Axis)	18-1/2"
Table Leadscrew Pitch	10 TPI (.100" Per Turn)
Headstock Tilt Lef&Right	±90°
Motor Power (Brushless type)	2 HP
Net weight	510 lbs

Description

About this product

1. VM32L-DEP provides much larger travels and work area with 8-1/4" x 33" worktable

2. Big powerful 2 HP (1500W) Brushless DC Variable Speed Motor

3. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation , super silence runnning

4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y and Z-axis

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading

6. The X-axis table power feed provides precision powered longitudinal table movement with adjustable limit stops for preset range of motion

7. Z-Axis elevator motor with up/down limit stops protection

8. 7" true color LCD screen 3-Axis DRO system with magnetic scale

Want TOP quality from China? Come to , you will get the excellent value!

STANDARD EQUIPMENT:

- Keyless drill chuck capacity 5/8" with JT33 taper

- Drill chuck arbor R8/JT33

- Foot tapping swtich

- 7/16"-20 Drawbar

- Toobox & tools

- Technical documentation

- 3-Axis DRO system with magnetic scales & 7" true color LCD screen

- X-Axis power feed

- Z-Axis elevator motor

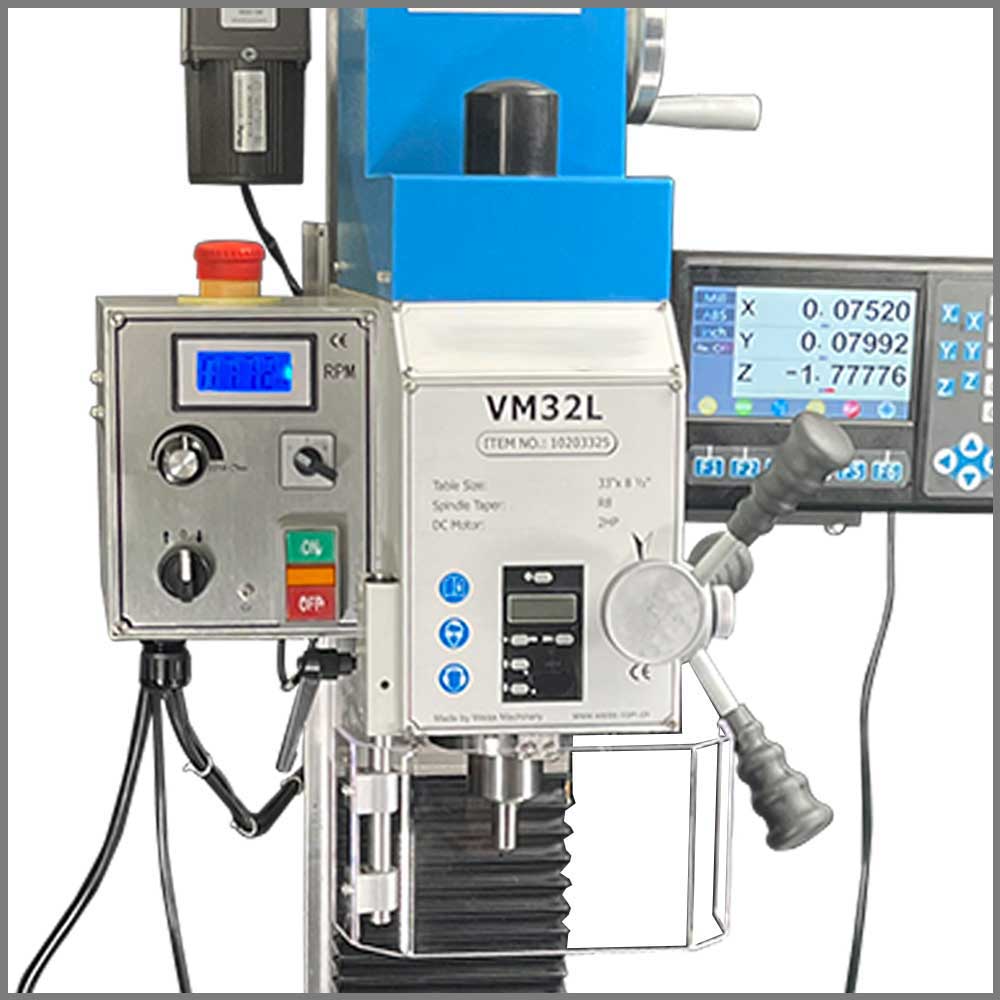

new feature VM32L-DEP with Foot tapping swtich, X-Axis power feed, Z-Axis elevator motor and 3-Axis DRO

· VM32L-DEP Variable speed enables to operate easily

· Spindle is supported by high precision taper roller bearing

· Spindle RPM can be monitored on the digital readout

· Spindle movement can be monitored on depth ruler in both inch or metric way

· VM32L-DEP has 2 HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.

· High quality electronics used throughout machine for long term reliability

· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

· VM32L-DEP precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"

· A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.

· Single speed belt drive system provides more quiet and easy operation , avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)

· Tooth belt provide strong and precision transmission

· The dovetail rails are equipped with adjustable taper inserts for greater wear resistance

· VM32L-DEP features tapered gibs with double locks which adds accuracy and rigidity

Dovetail Column

· Mill head can be tilted 90 degrees

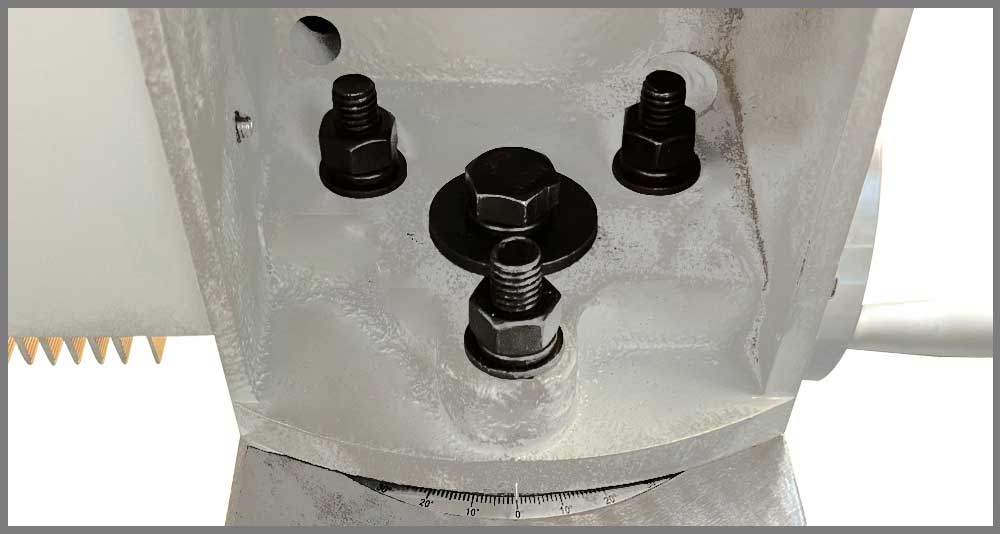

· Loosen three nuts and one bolt to adjust the mill head angle

· The X-axis table power feed provides precision powered longitudinal table movement with quick move button

· Adjustable limit stops for preset range of motion

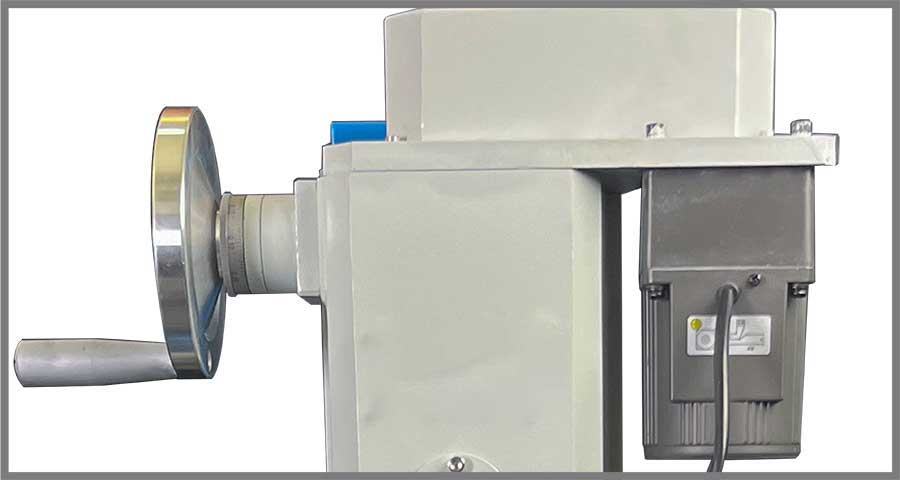

Z-Axis elevator motor

· Z-Axis elevator motor eliminates the need to raise and lower head by hand cranking

· Up and low limited swtich for safety operation

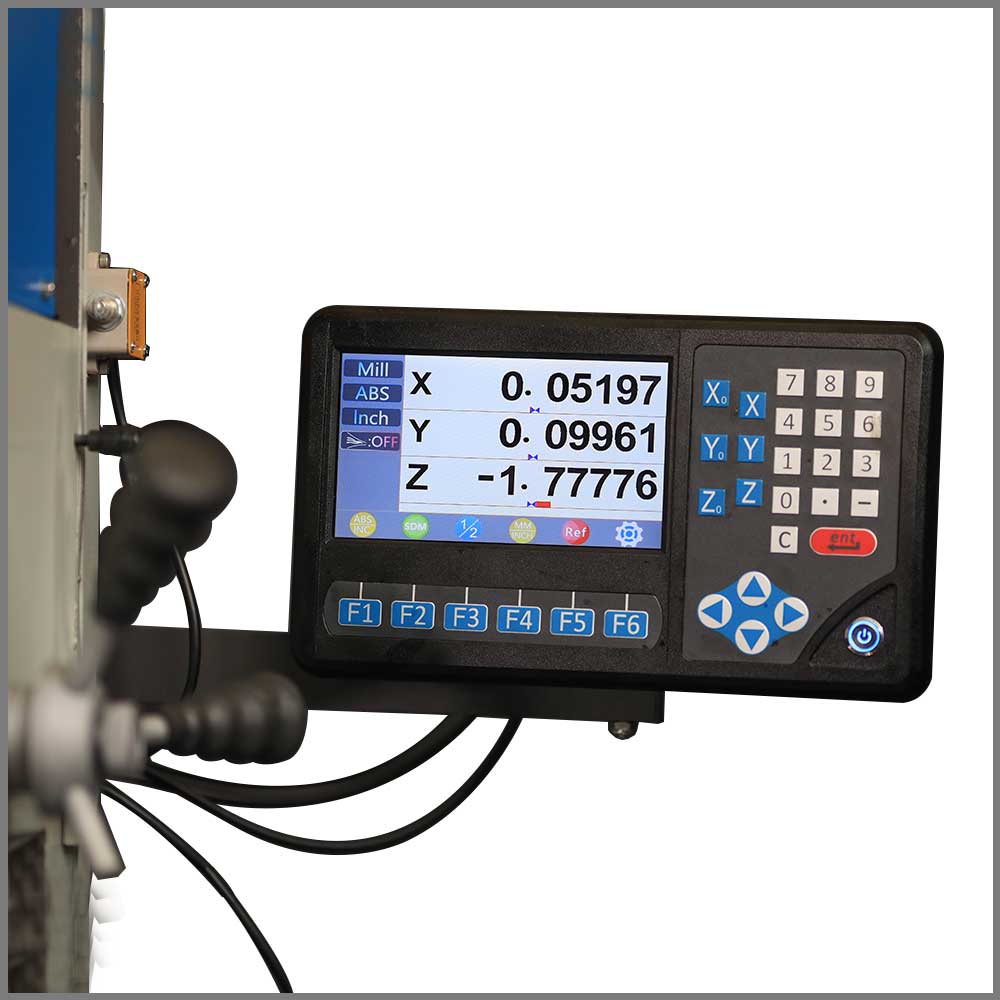

3-Axis Magnetic DRO system

· 7" Ture color LCD screen

· 3 Axis DRO shows the movement of the worktable cross & longitudinal travel and milling head travel

· Contactless magnetic scale measuring system get slim dimension which is simple to intall. It matches IP 67 protection degree and get excellent performance to resist the oil, dust, dirt., etc. The best choice to work under adverse condition.

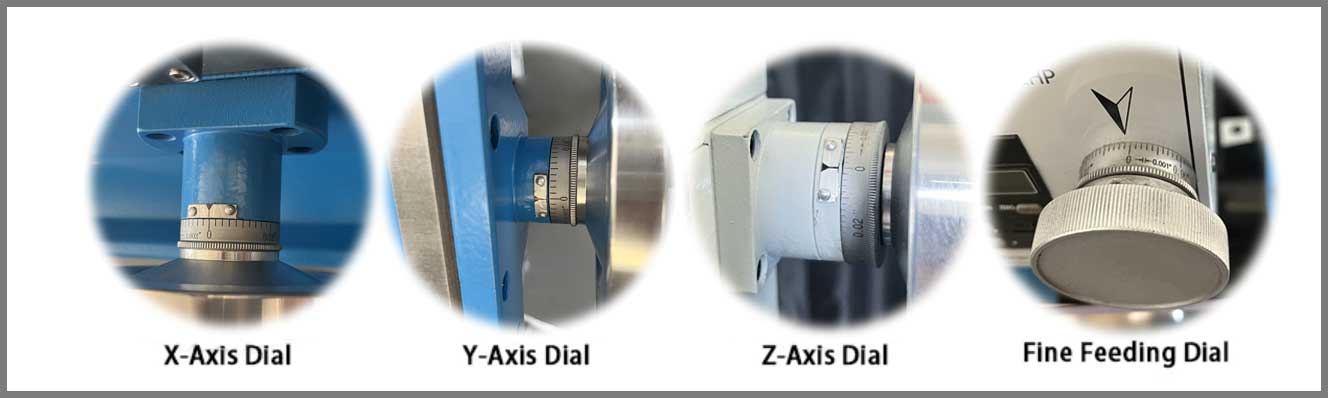

All leadscrews are true inch pitch screws. Large dials with .002" graduation for easier reading
