150W Tuya WiFi Smart Power Electronic Load Tester - DC USB 18650, 48V Battery Capacity Monitor Tool
from
$57.99
Ex Tax: $57.99
- Stock: In Stock
- Model: SCJ002835
- SKU: SCJ002835
Products Sold: 0
Product Views: 522
Ask a Question About This Product
- Description
150W Tuya WiFi Smart Power Electronic Load Tester - DC USB 18650, 48V Battery Capacity Monitor Tool
Features:
Wide Application: This Electronic Load Tester can test all kinds of data cables, chargers, and various DC power adapters. It can also intelligently detect the DC power supply, making it a versatile device for users.
Operating Modes: The device flaunts seven operating modes - Constant Current operation (CC), Constant Resistance operation (CR), Constant Power operation (CP), Constant Voltage operation (CV), Battery Internal Resistance Test Mode (BRT), PT electrical parameters automatic test mode (PT), and CT Cable resistance test mode (CT).

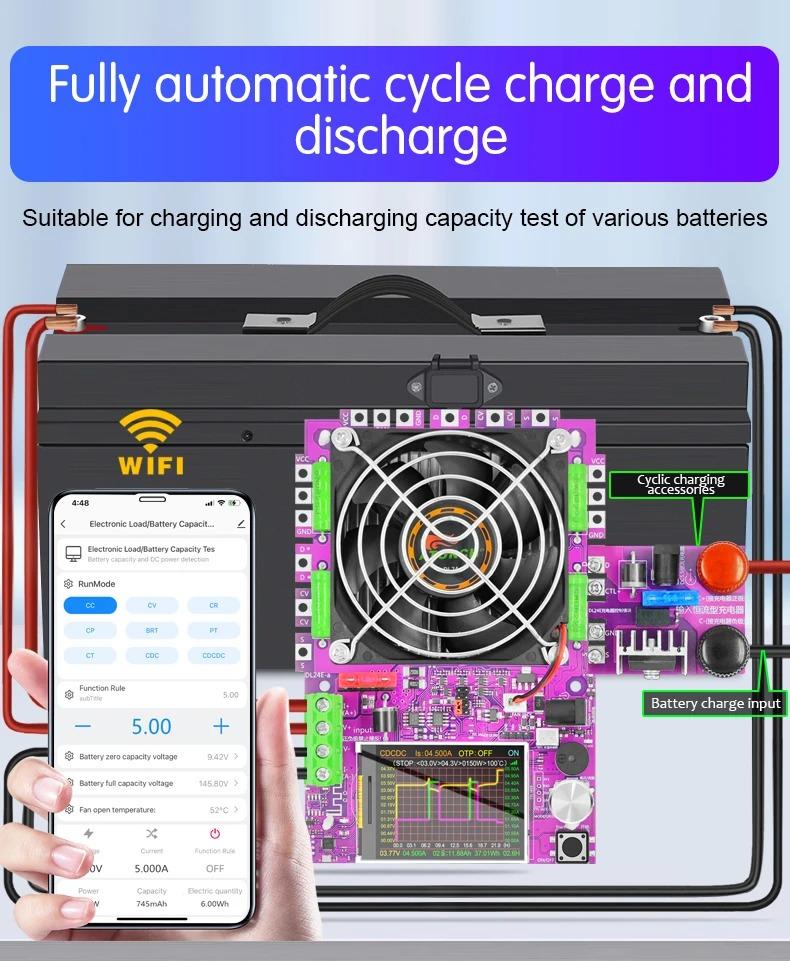

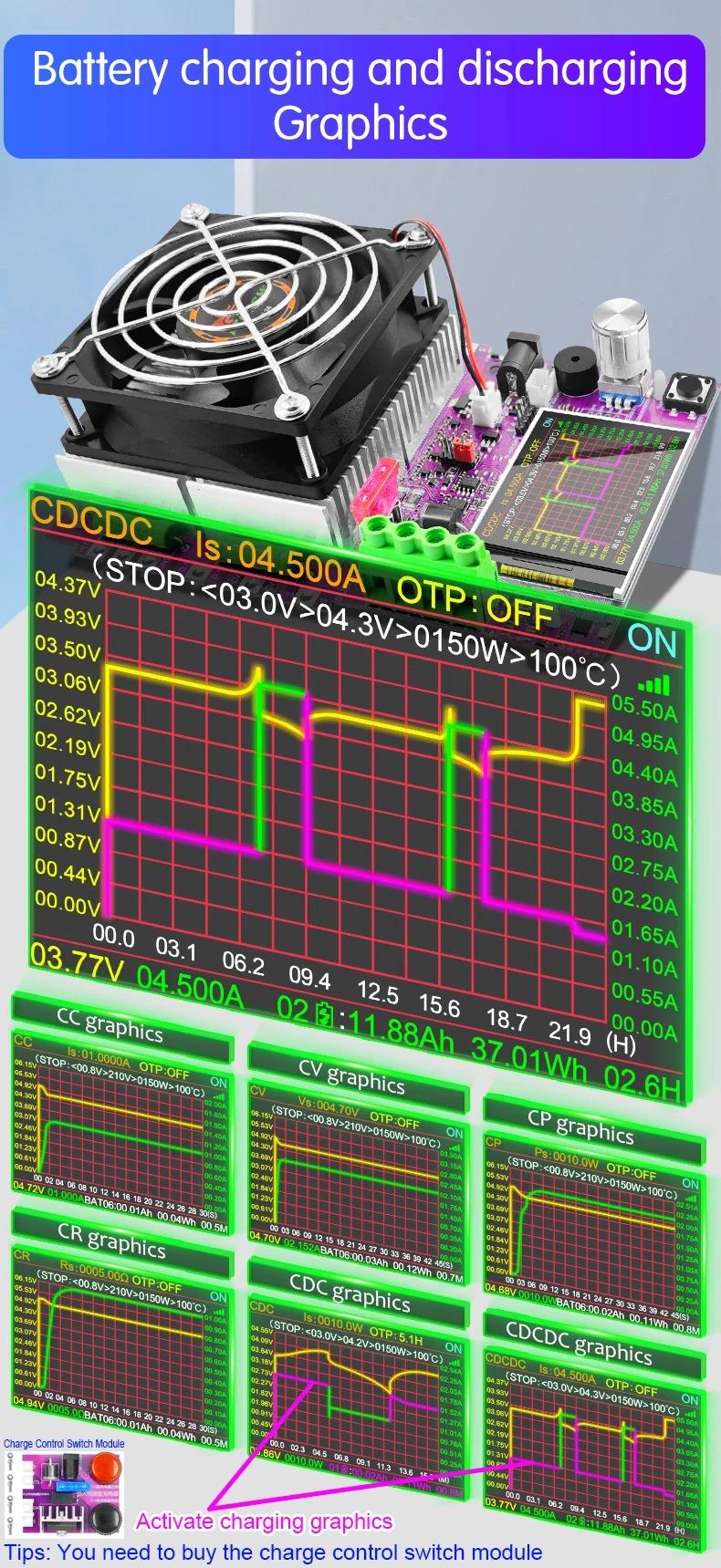

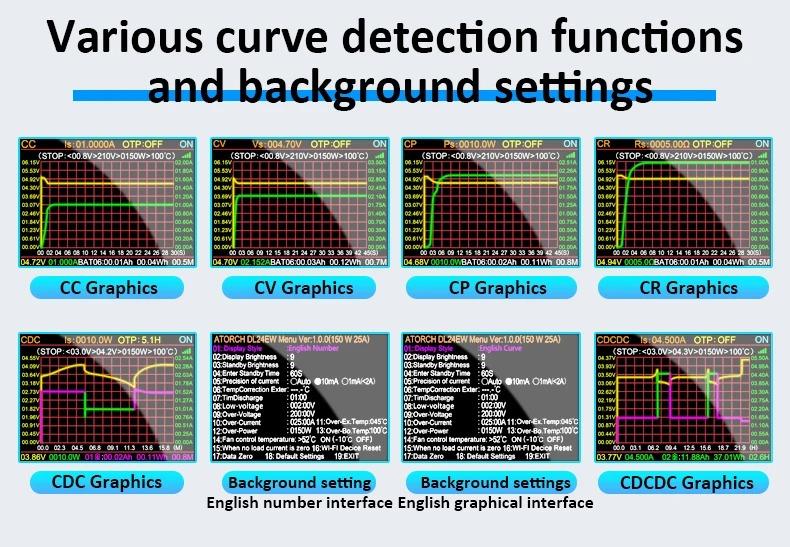

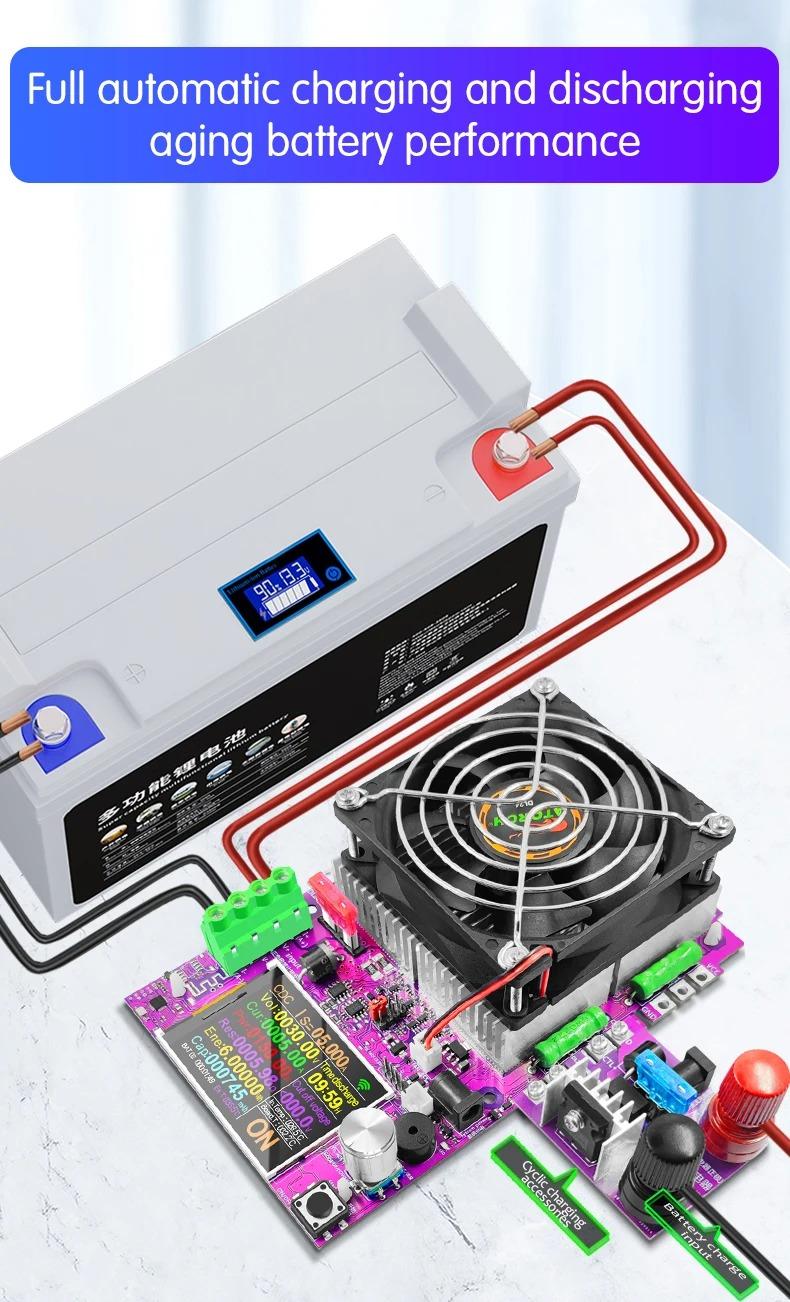

Performance Testing: The Electronic Load Tester can perform various tests like testing the current, voltage, power, and other parameters of various DC power adapters. It also supports discharge curve and charging curve functions, providing comprehensive testing capabilities.

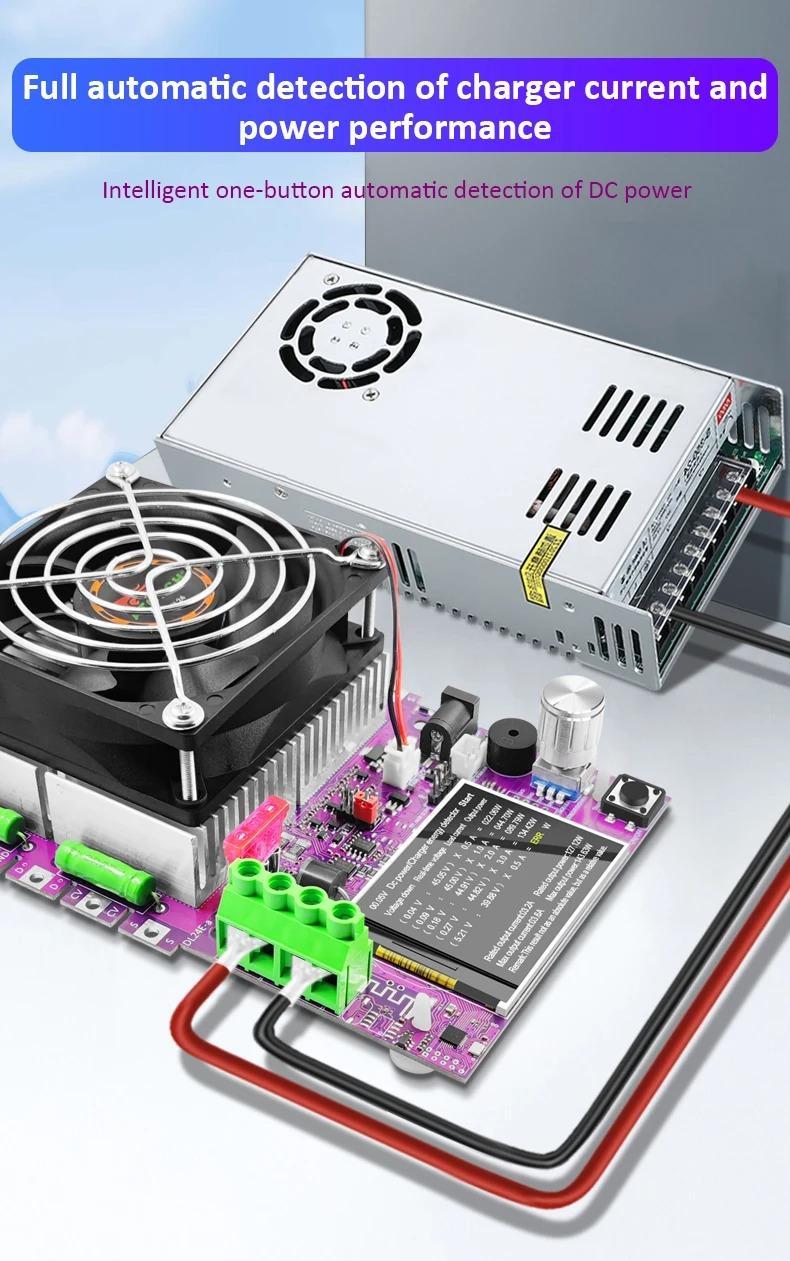

Automatic Detection: Equipped with a PT mode of charger current power performance, the tester can automatically detect and test DC chargers and power supplies, making complex tests precise and simplified.

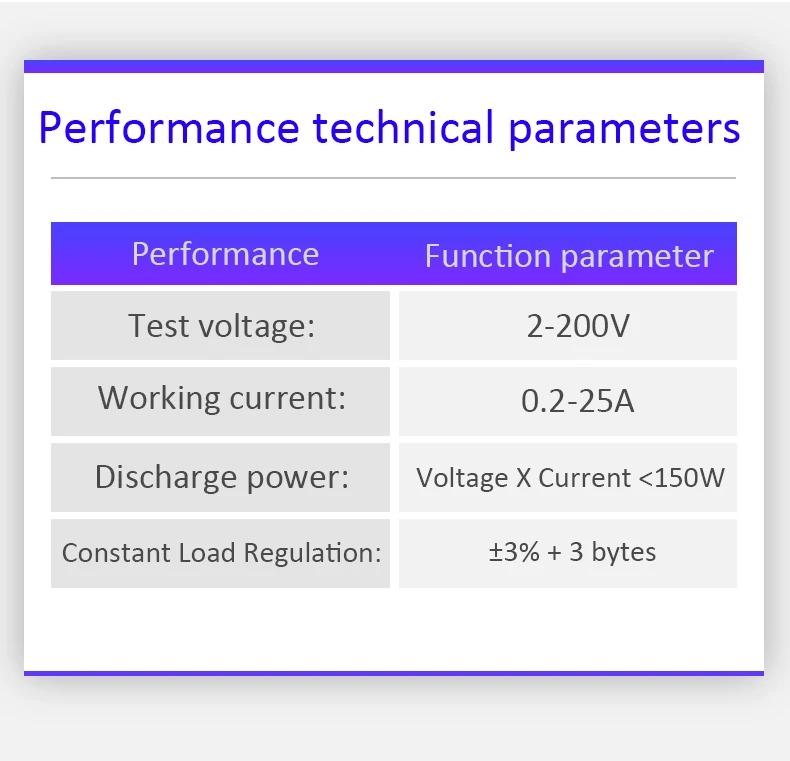

Specifications:
Power Settings: DIY 150W / DIY 300W / DIY 450W / DIY 600W
Default Power: 150W (the jumper has been set to 150W)
Operating Modes: CC, CR, CP, CV, BRT, PT, CT

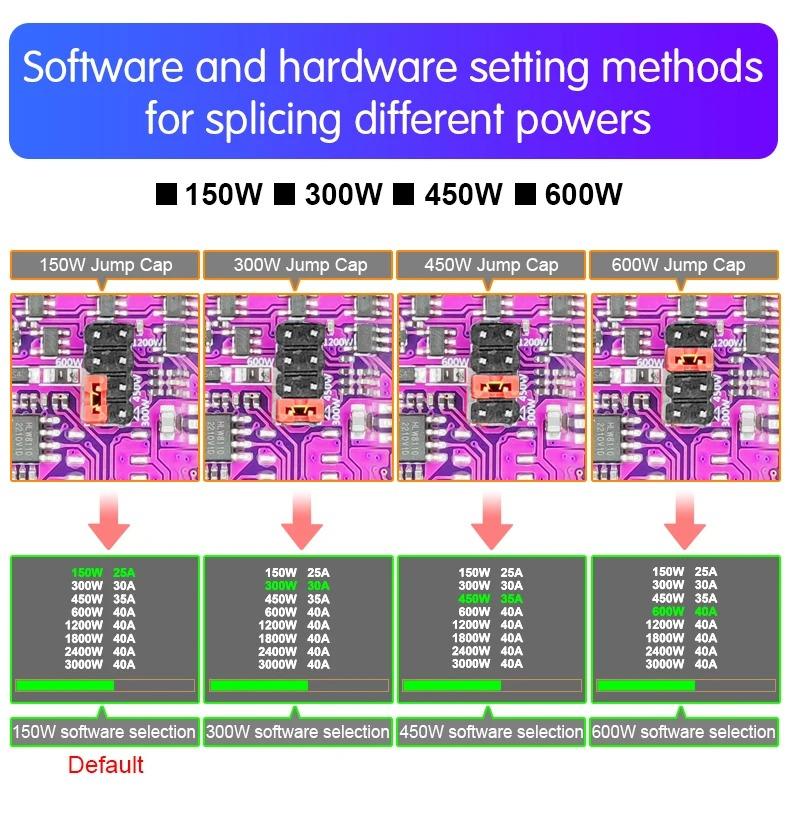

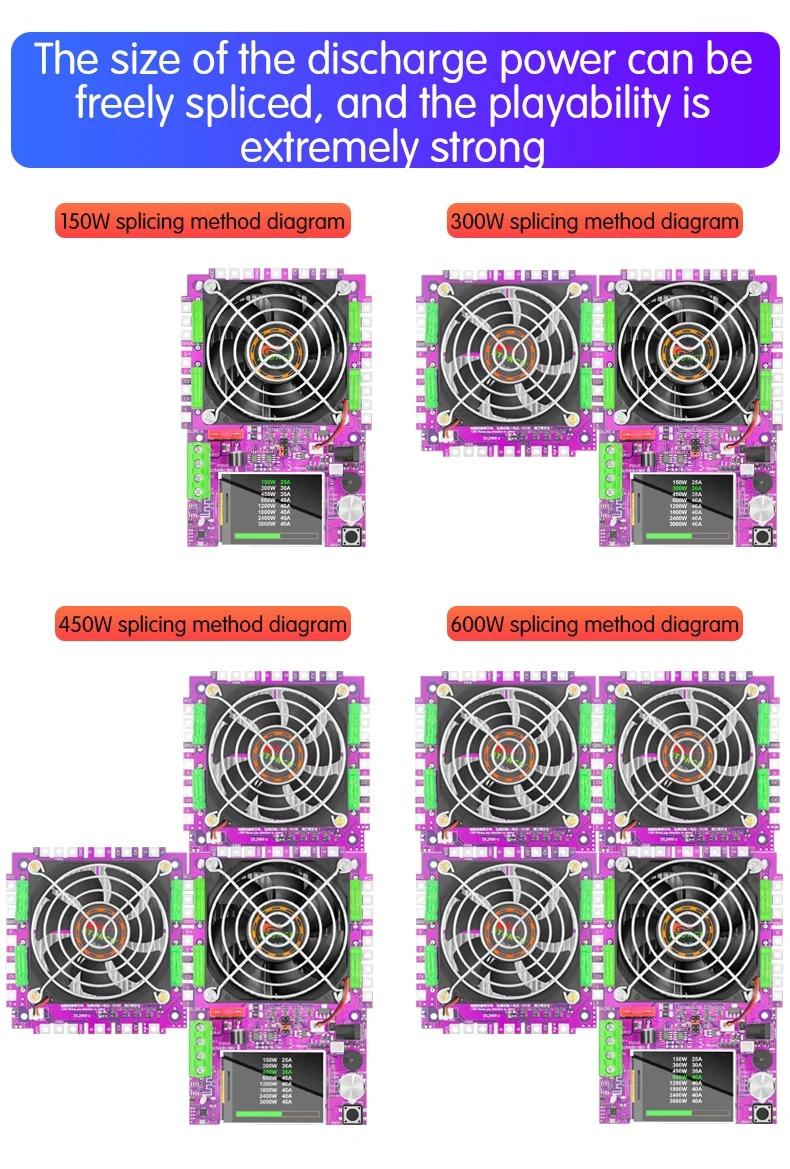

Product jumper position and Setting method(150W~600W)
(DIY 150W / DIY 300W / DIY 450W / DIY 600W)
When product leave the factory, the default is: 150W (the jumper has been set to 150W)
When this product is at different powers, you need to set the jumper, please follow the following method to set！
@150W 3mA~25A (V*A<150W)
@300W 3mA~30A (V*A<300W)
@450W 3mA~35A (V*A<450W)
@600W 3mA~40A (V*A<600W)

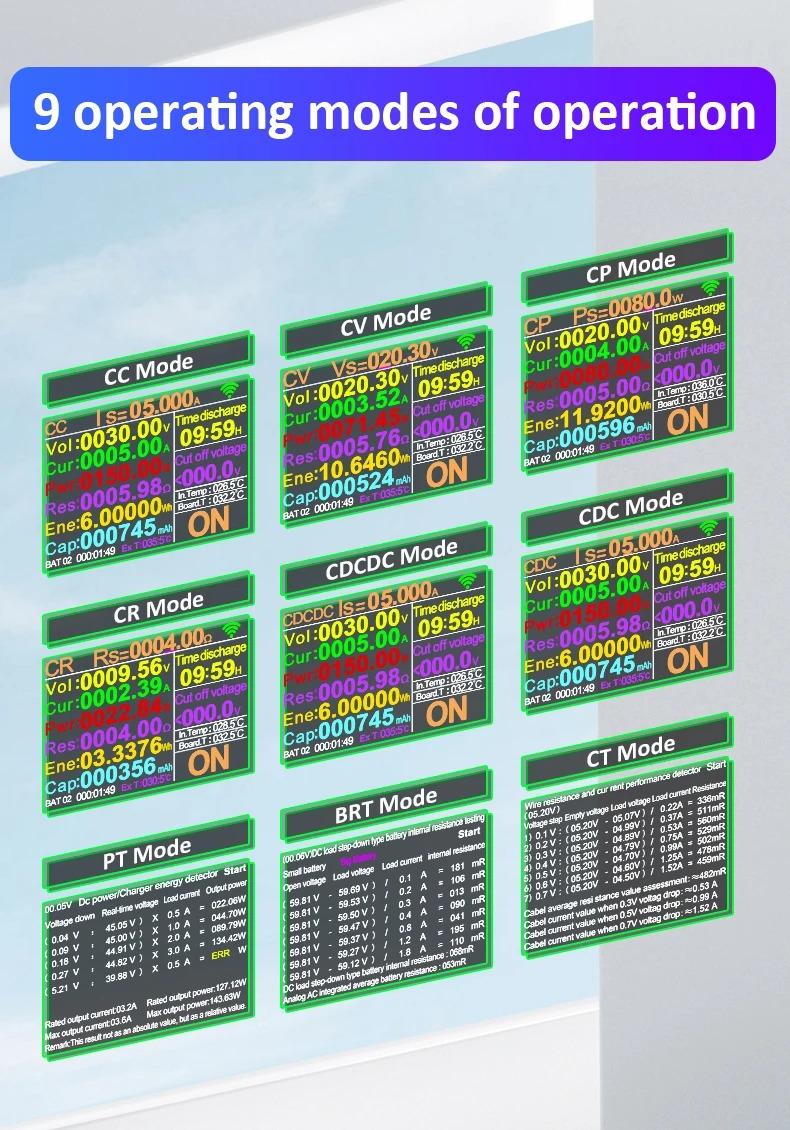

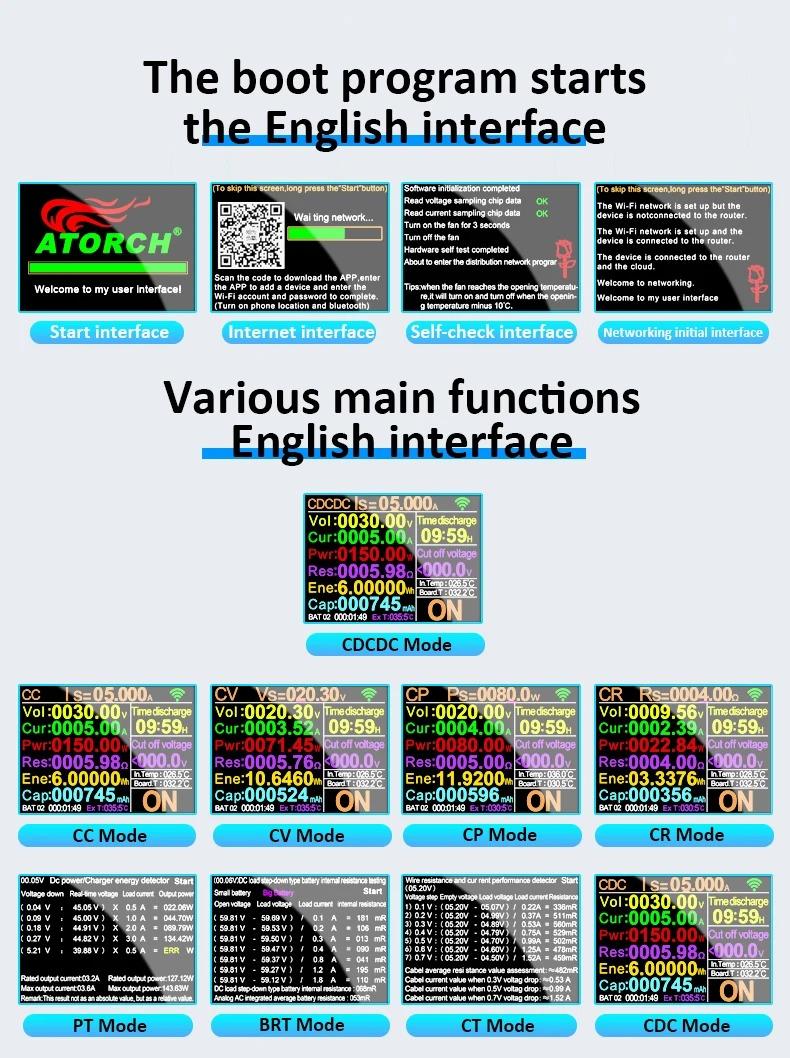

Seven operating modes of operation
1.Constant current operation（CC）
2.Constant resistance operation（CR）
3.Constant power operation（CP）
4.Constant voltage operation（CV）

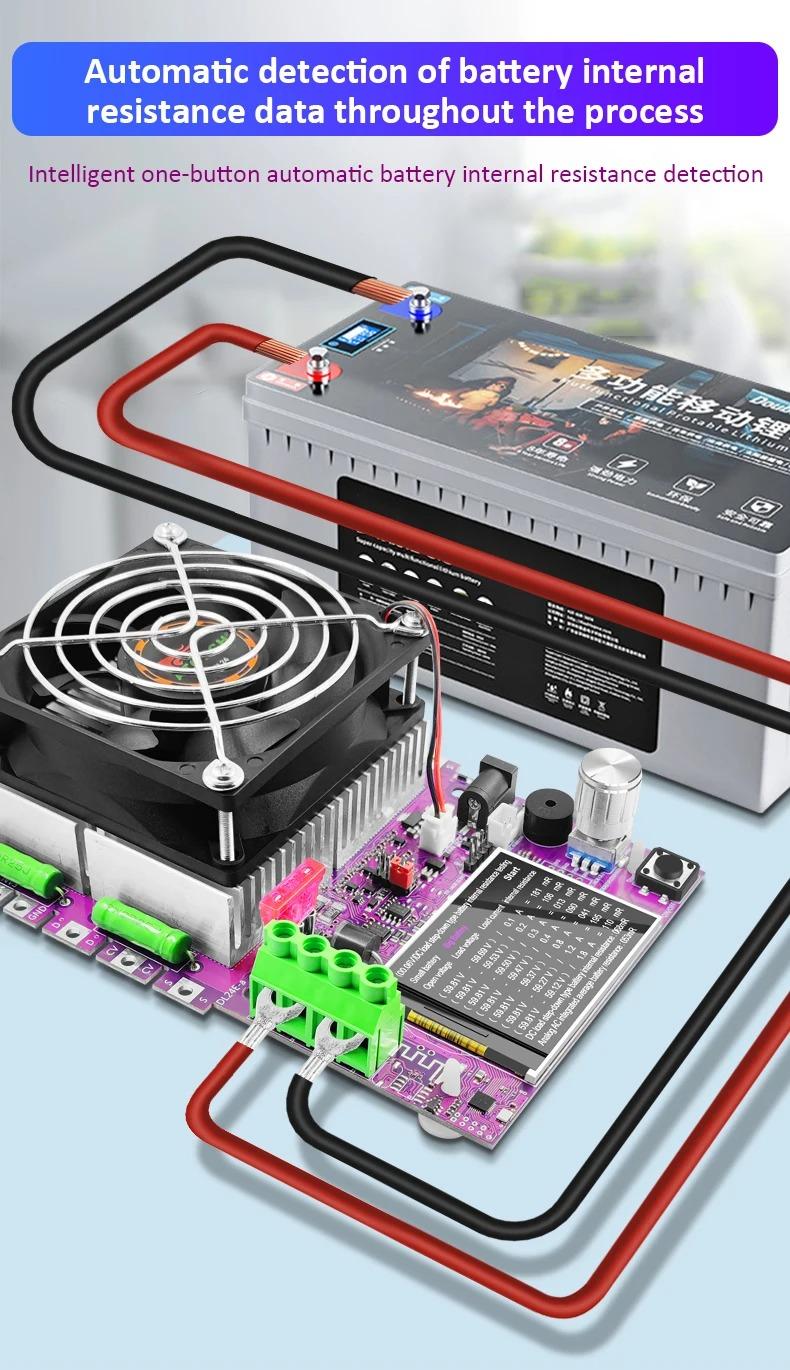

5.Battery Internal Resistance Test Mode (BRT)
6.PT electrical parameters automatic test mode (PT)
7.CT Cable resistance test mode(CT)

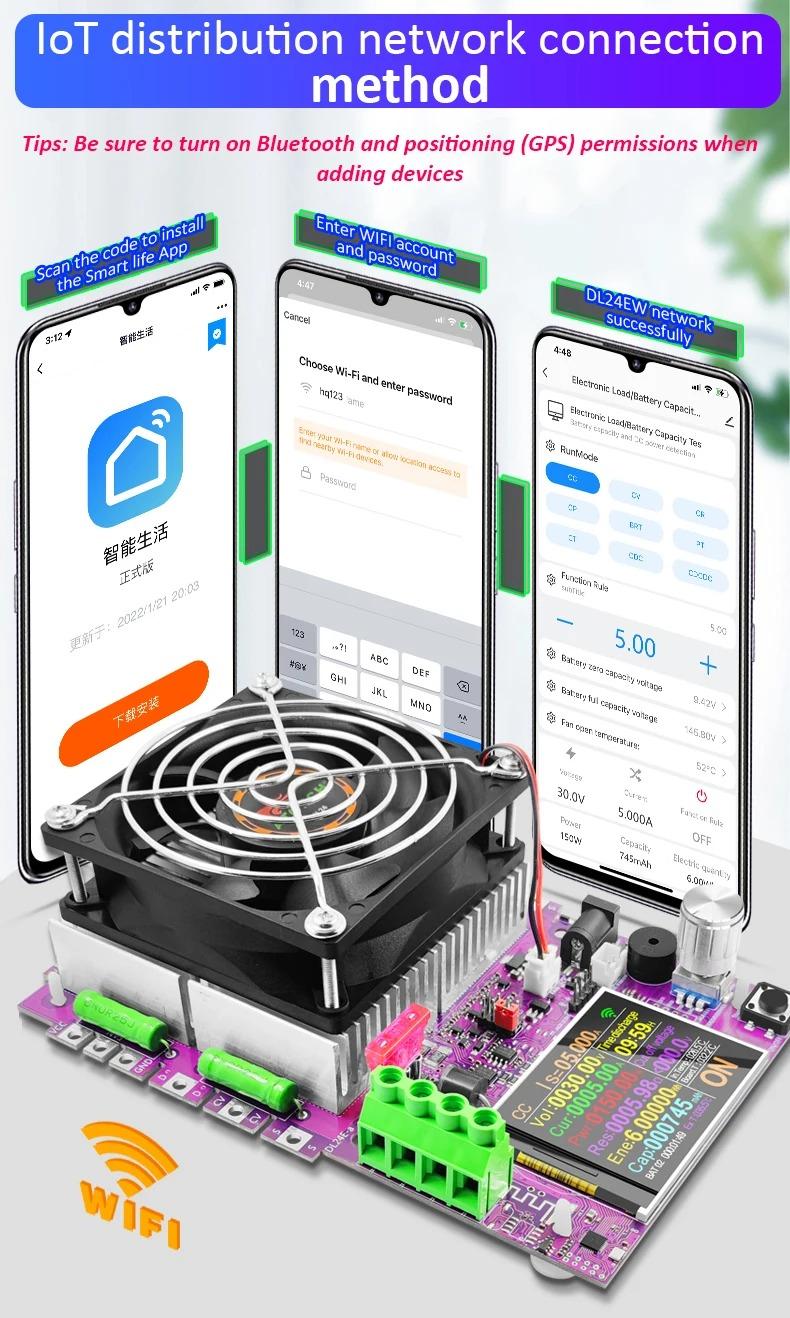

Optional Type: NO WIFI/With WIFI
File Download Way

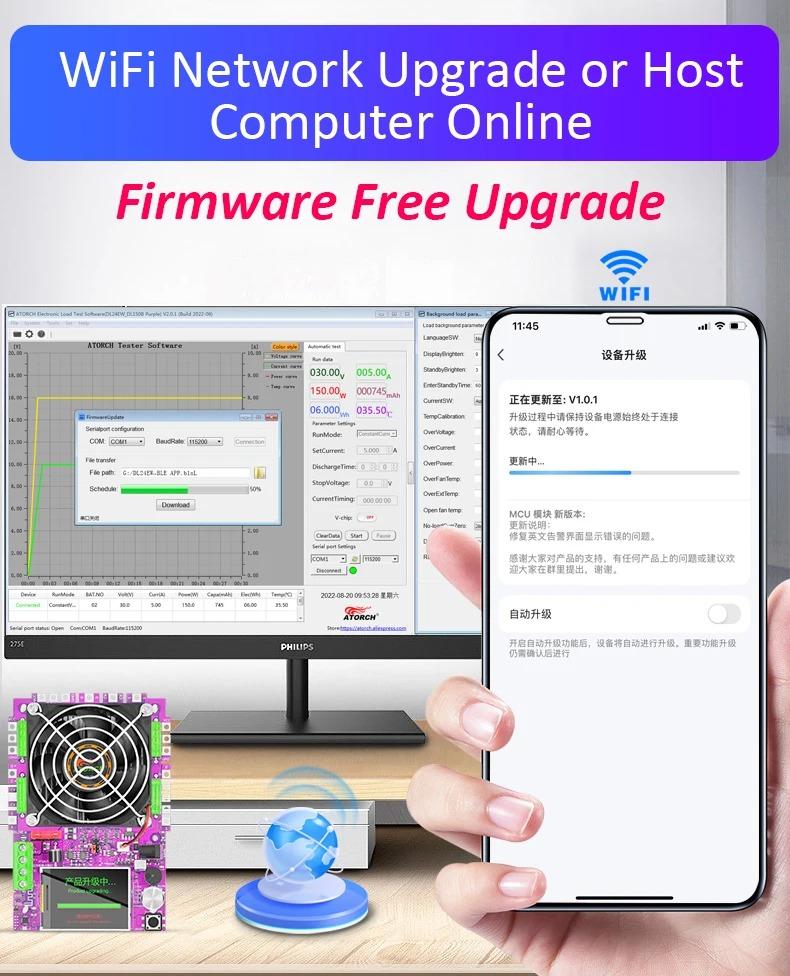

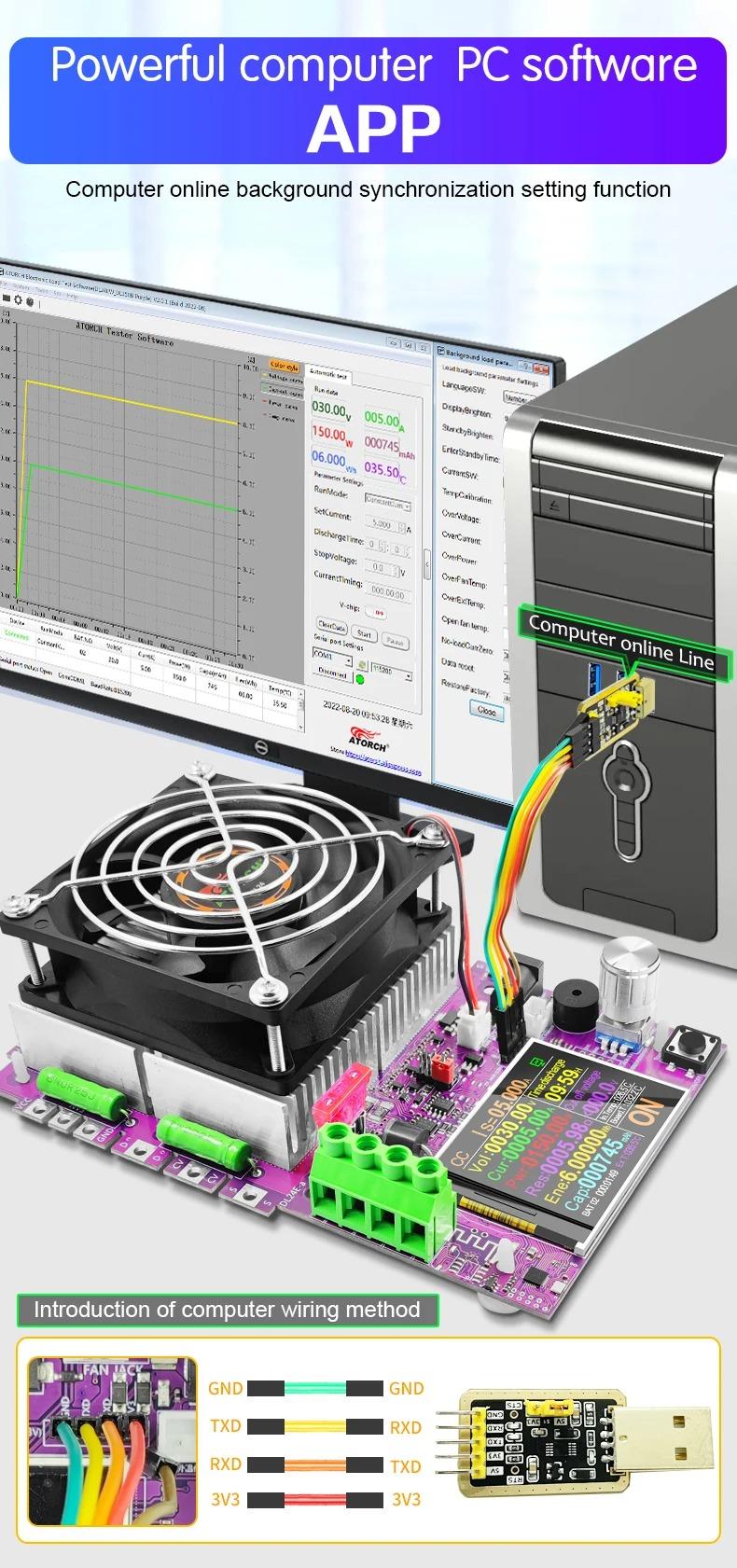

1, User manual, PC software installation instruction and PC software and Android APP download link :
https://www.mediafire.com/folder/fgs8nbwv5ldr9/DL24EW

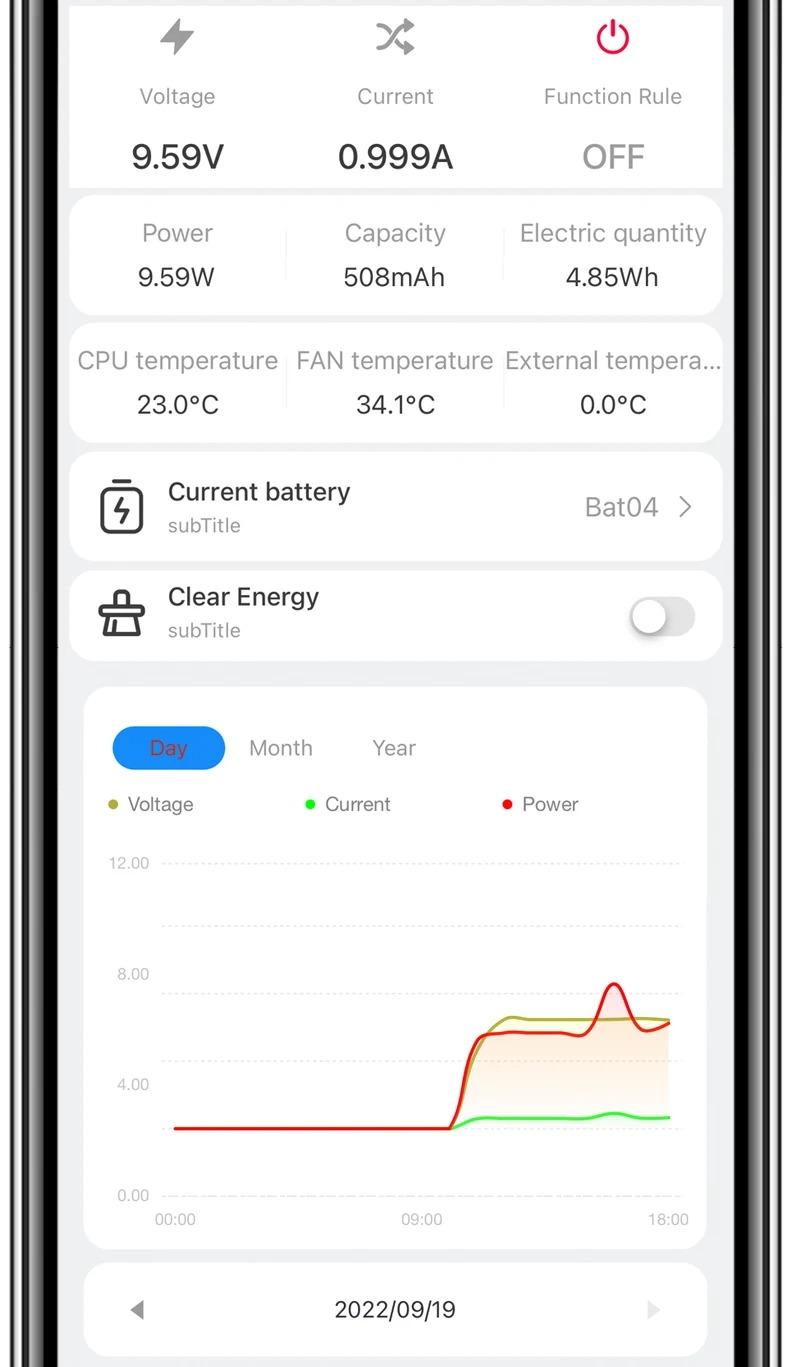

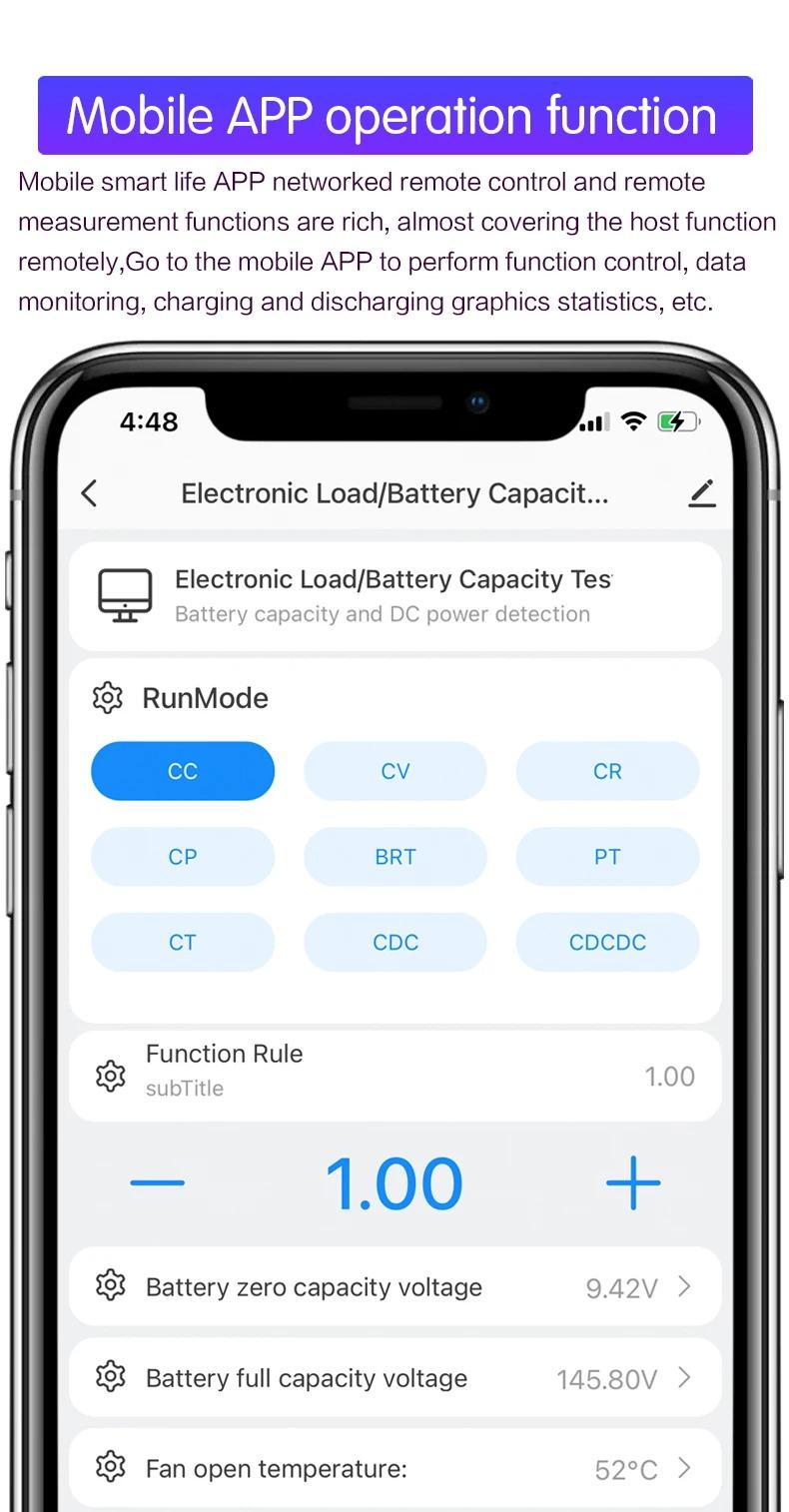

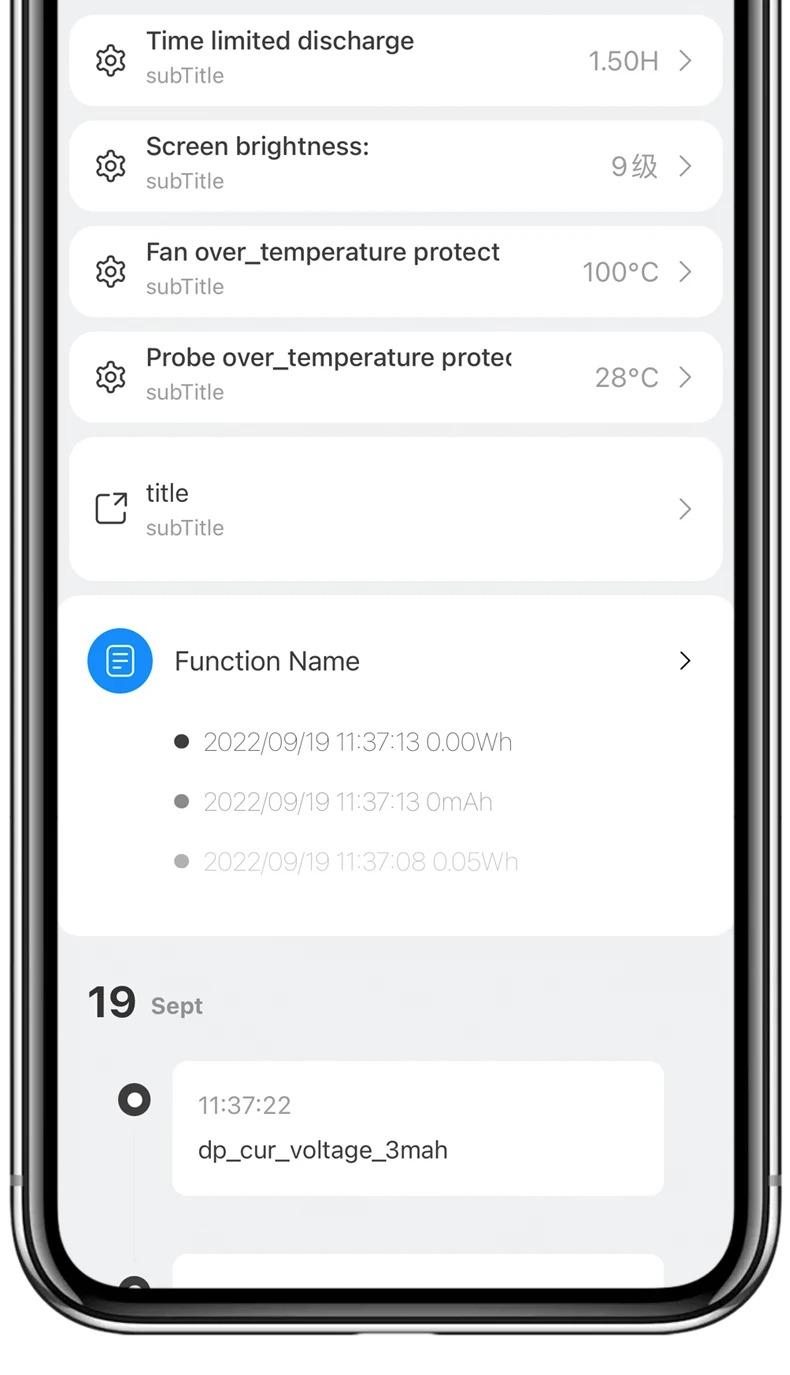

2, IOS APP: search smart life or tuya APP on Phone APP application store to download
3, Android APP: search smart life or tuya APP at Google play to down load

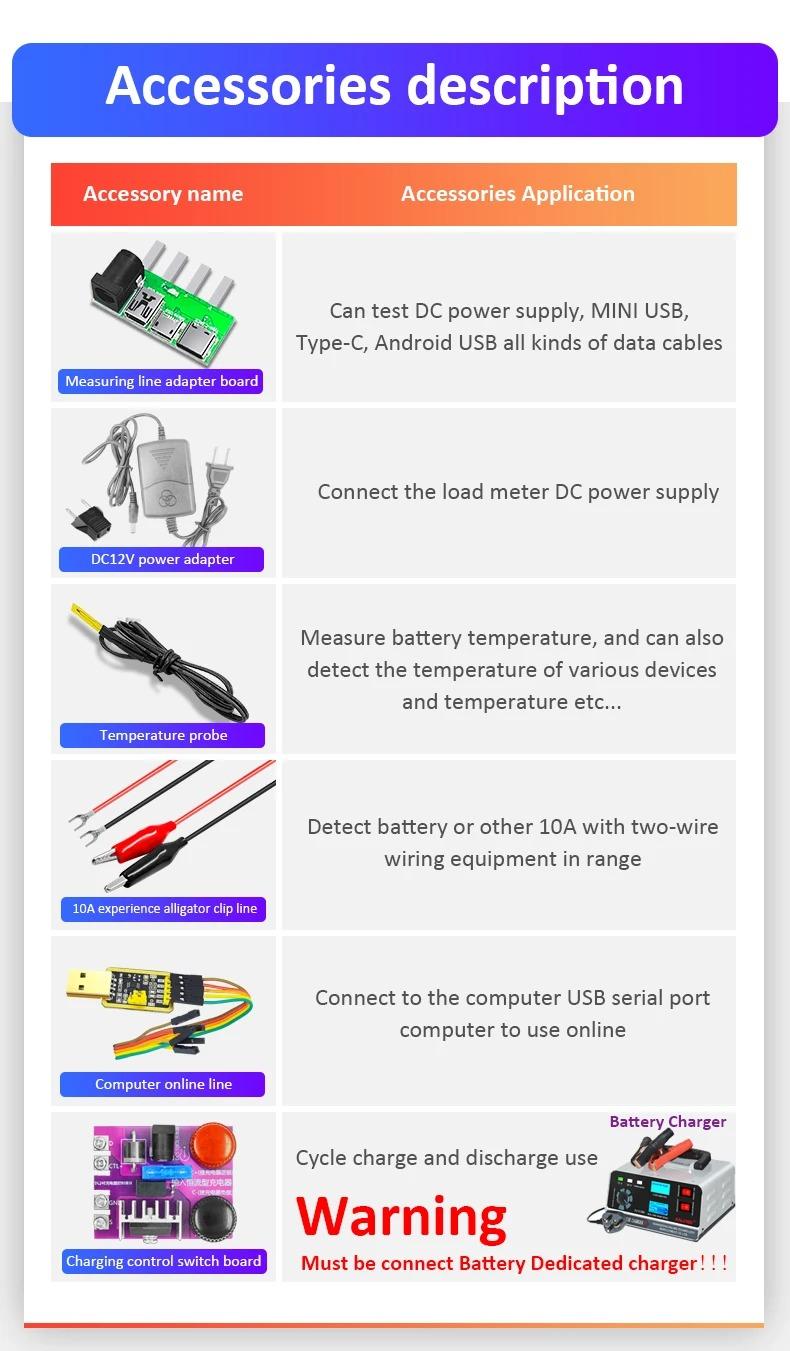

Package Included:
1 x Electronic Load Tester (Type as your choice)
1 x User Manual
