Features:

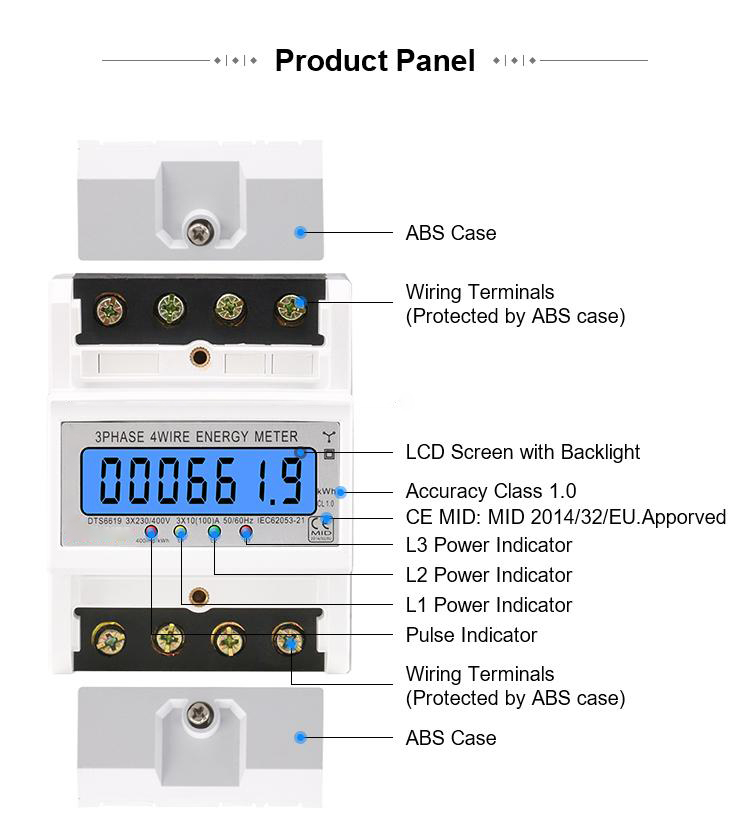

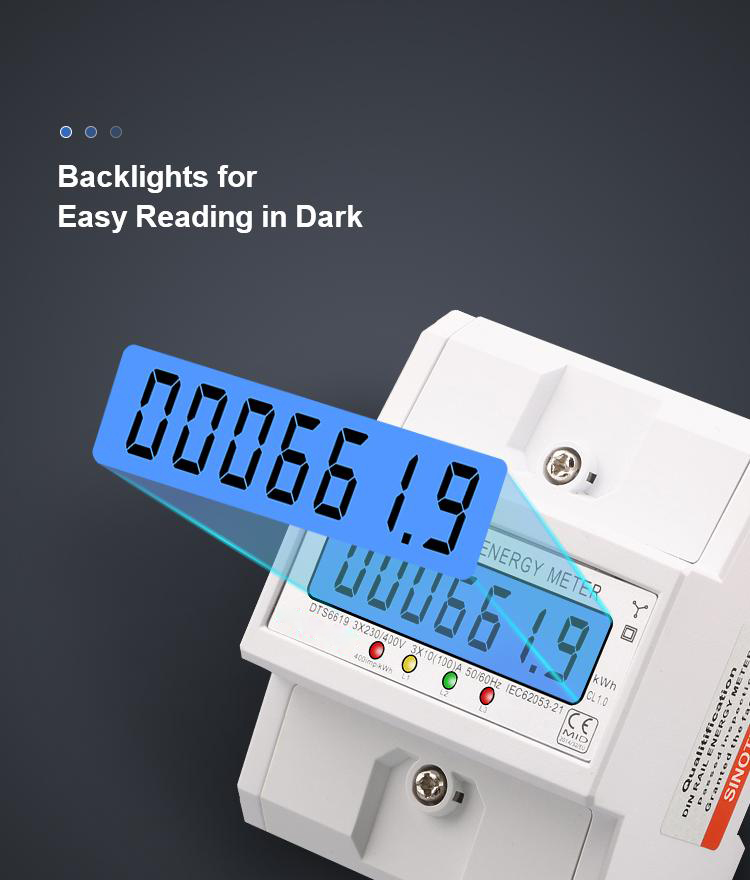

Advanced LCD Display: The DTS6619 model boasts a 6+1 digit LCD digital display with a backlight feature, ensuring easy readability even in poorly lit conditions.
High Accuracy: Offers an impressive 1.0 accuracy level, providing precise and reliable readings every time.
Efficient Energy Measurement: With a reference current of 3 X 10(100A), it accurately monitors the power consumption in your premises.

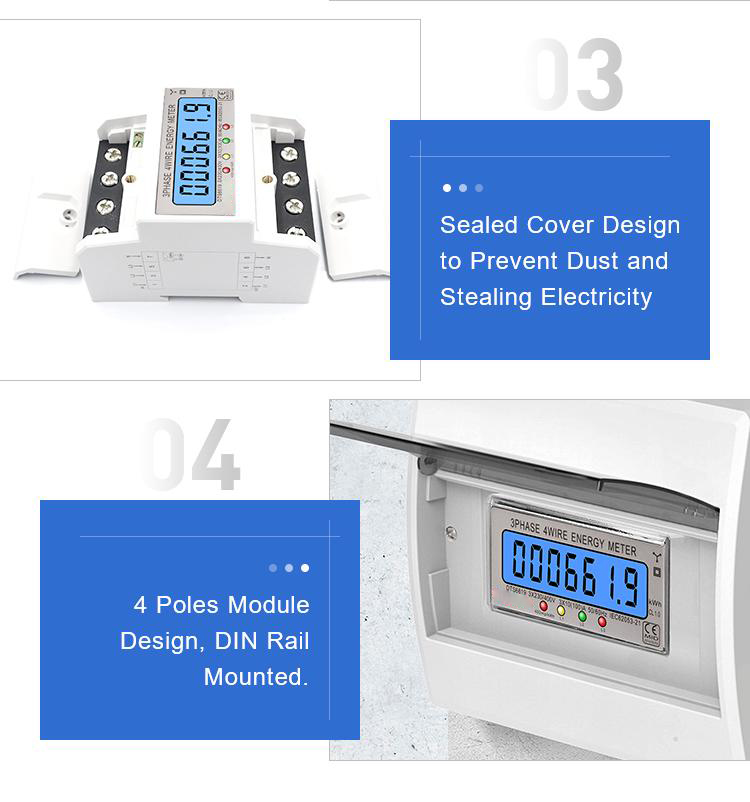

Durable Material Composition: Constructed with robust metal and ABS materials, this power meter promises lasting performance and durability.
Wide Operating Range: Ensures a seamless operation at temperatures ranging from -20 to 55 degrees Celsius.

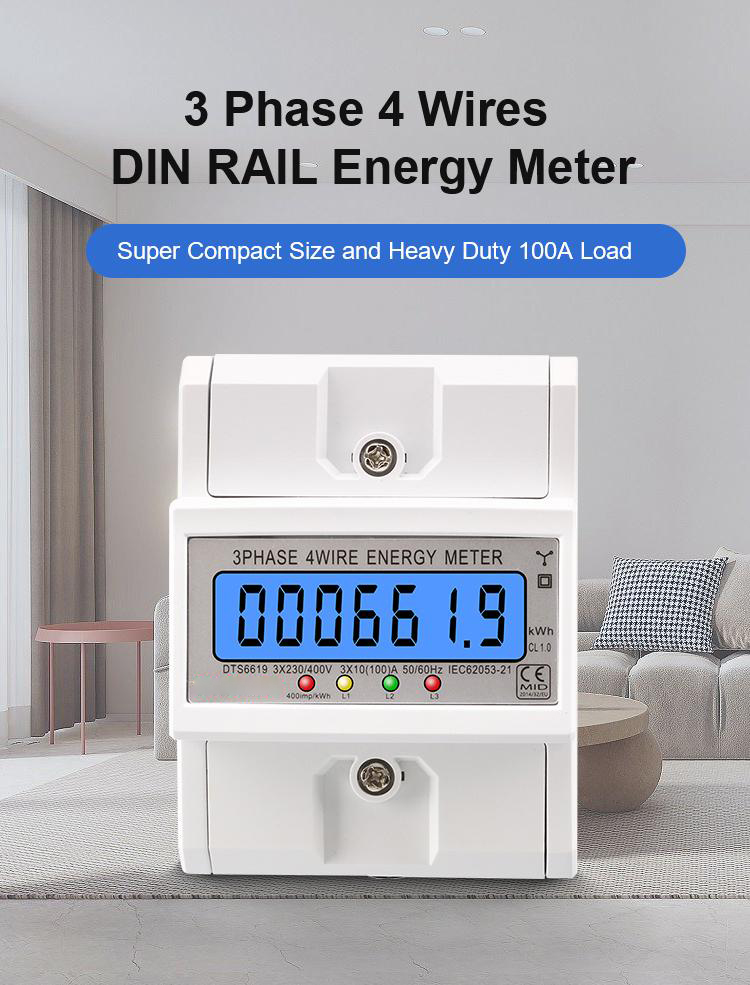

Three-Phase Four-Wire Electronic Type: This smart power meter uses advanced technology to offer accurate and efficient readings across multiple phases and wires.
Ask a Question About This Product
- Description

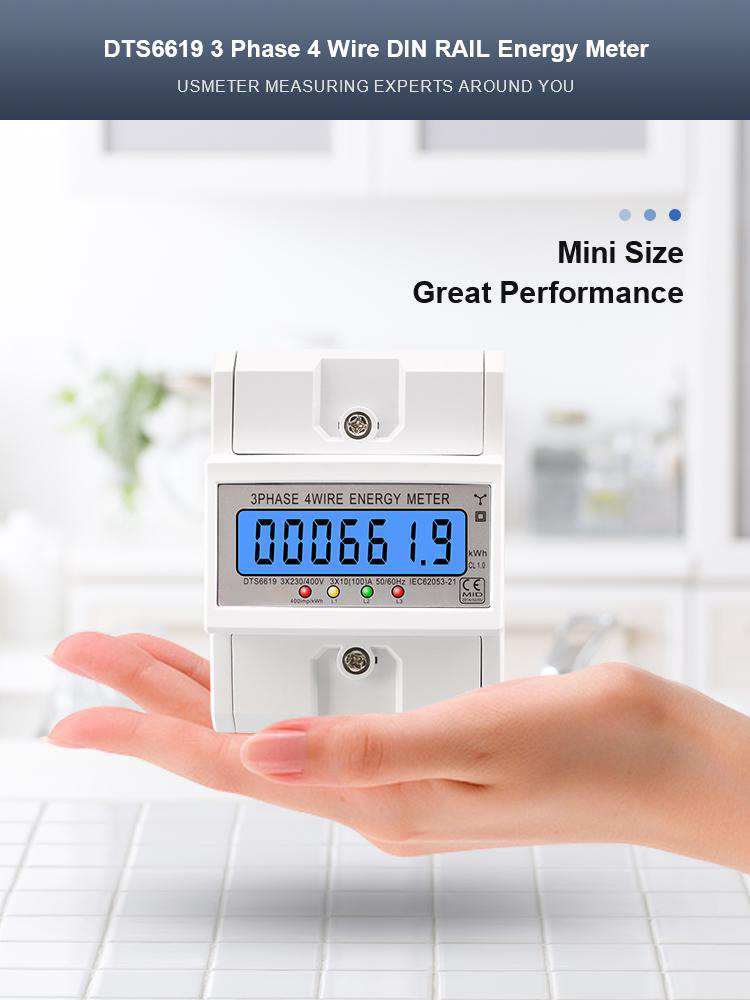

DTS6619 100A LCD Digital Display with Backlight Power Meter in Energy Meters Smart Electric Meter 3 Phase Kwh Meter
Specifications:
Brand Name: SOCOJE
Model Number: DTS6619
Material: Metal + ABS
Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)
Reference Current: 3 X 10(100A)
Rated Frequency: 50/60 Hz
Constant Pulse: 400imp / kWh
Display: LCD 6+1
Power Consumption: ≤2W, 10VA
Starting Current: 0.004Ib
Operating Temperature Range: -20 ~ 55°
Storage Temperature Range: 25 ~ 70°
Operating Voltage Range: 0.9-1.1 Rated Voltage
Utmost Voltage Range: 0.8-1.15 Rated Voltage
Annual Average Humidity: ≤75%

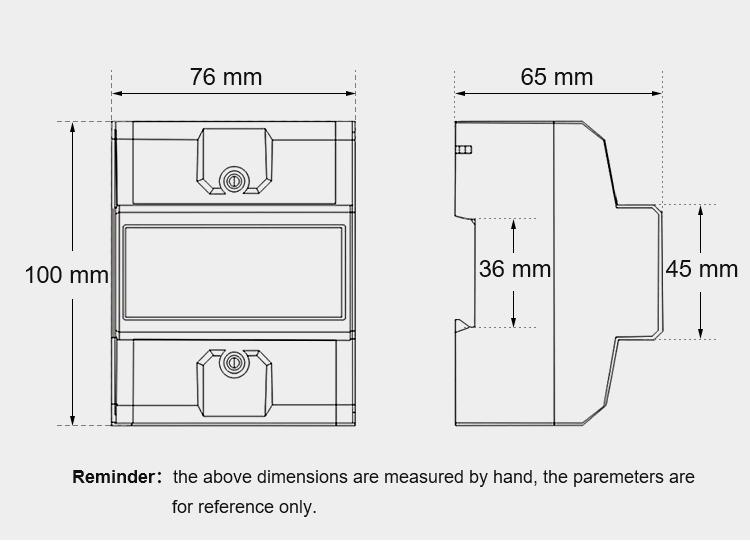

Dimensions: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
Weight: 400g
Max Operating Current: 100A
Measuring Energy Range: 0.0-999999.9kwh
Power Supply: AC
Output Voltage: 380v ac
Rated Voltage: 380v ac
Phase: Three phase
Optional Shell Color: White / Transparent
Package Includes:
1 x DTS6619 Energy Meter(Shell color as your choice)
1 x English Operation Manual
