Blue illuminated On-Off Latching 26mm Push Button Switch DPST FPBR1D1222A12D5

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Material	Silver
Contact Rating	4A 12VDC
Current Rating	4A
Illuminated	Yes
Electrical Life	200,000 Cycles
Illumination Colour	Blue
Illumination Voltage	12VDC
Material	ABS
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP54
Operating Force	8N
Operating Temperature	-40°C to +75°C
Panel Cut Out	26mm
Panel Thickness	1.5-2mm
Product Series	FP
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	12VDC

Description

Blue illuminated On-Off Latching 26mm Push Button Switch DPST FPBR1D1222A12D5

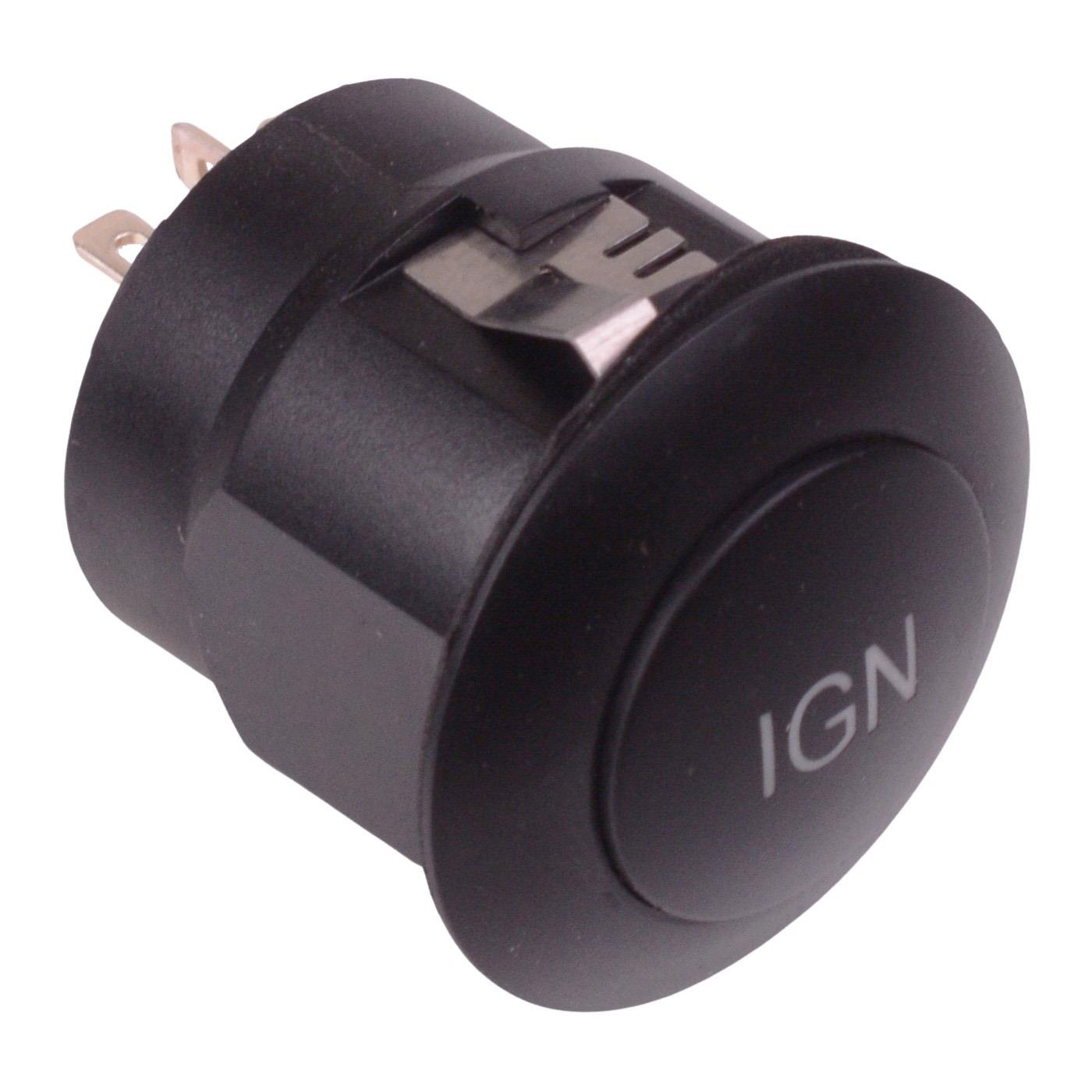

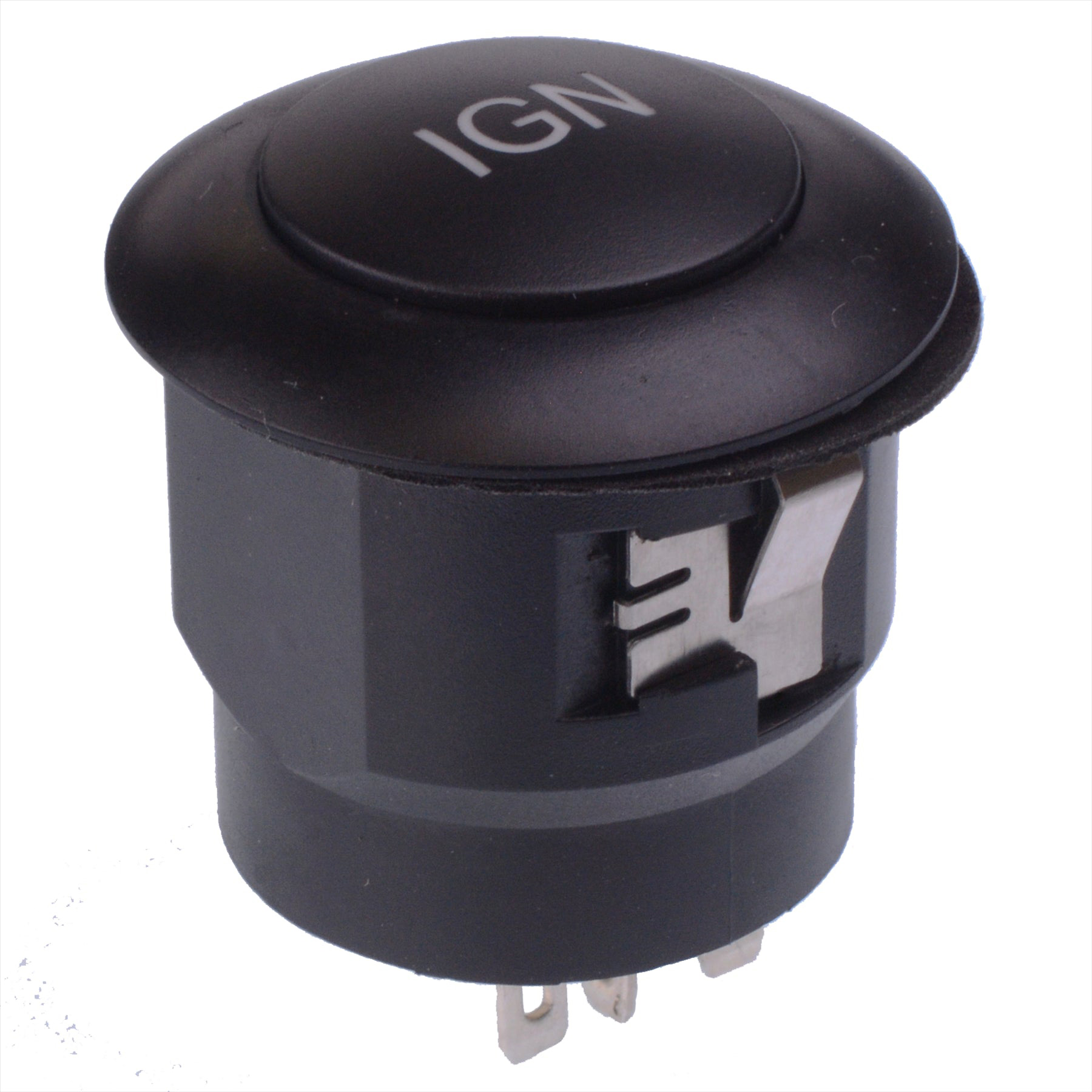

The FPBR1D1222A12D5 is a snap-in 26mm latching push button switch with Off-On function and solder lug terminals. The switch features blue 12V illumination and IGN laser marking. The switch is suitable for applications including autotmotive and fireworks.

On-Off function

DPST function

Snap-in mounting

Blue 12VDC illumination

Solder lug terminals

Panel cut-out: 26mm

Panel thickness: 1.5-2mm

Rating: 4A 12VDC
