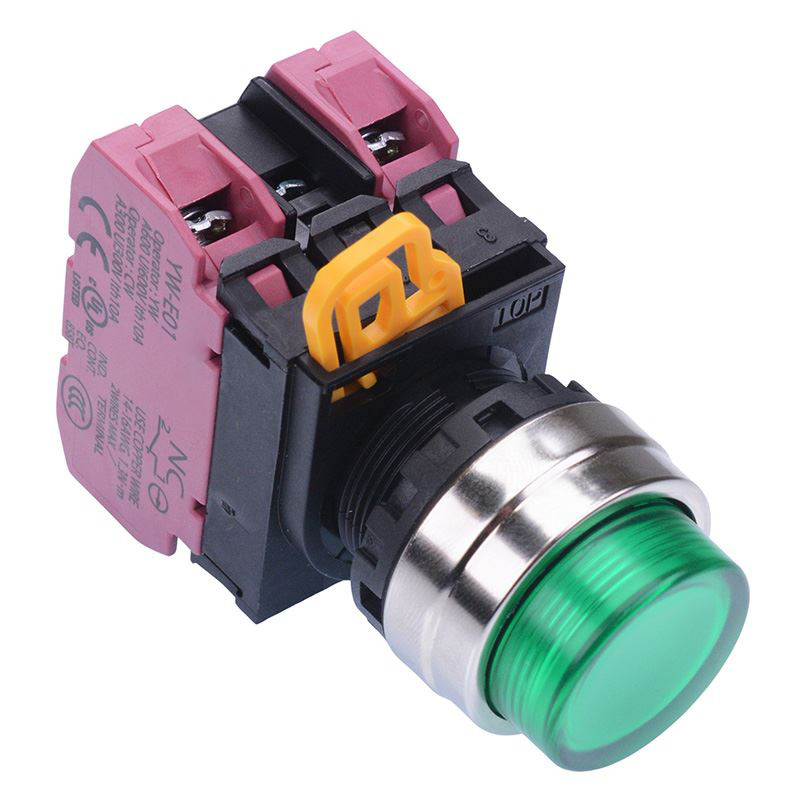

Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch 2NC IP65 YW4L-M2E02Q3G

Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch 2NC IP65 YW4L-M2E02Q3G
Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch 2NC IP65 YW4L-M2E02Q3G
from
$31.00
Ex Tax: $31.00
5 or more $27.59
10 or more $25.73
25 or more $24.18
50 or more $22.94
  • Stock: In Stock
  • Model: SCJ011933
  • SKU: SCJ011933
Products Sold: 0
Product Views: 25
  • Specifications
Attributes List
ActuationMomentary
ColourGreen
Contact Configuration2NC
Head TypeExtended
Contact Rating2A 380V, 6A 240V
Current Rating10A
IlluminatedYes
Electrical Life100,000 Cycles
Illumination ColourRed
Illumination Voltage12V
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-20°C to +55°C
Panel Cut Out22.3mm
Panel Thickness0.8-6mm
Product SeriesYW
Terminal TypeScrew
Voltage Rating600V
  • Description
The YW4B-M2E02Q3G is an illuminated green momentary push button switch from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 2NC contacts
  • 12V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch 2NC IP65 YW4L-M2E02Q3G
