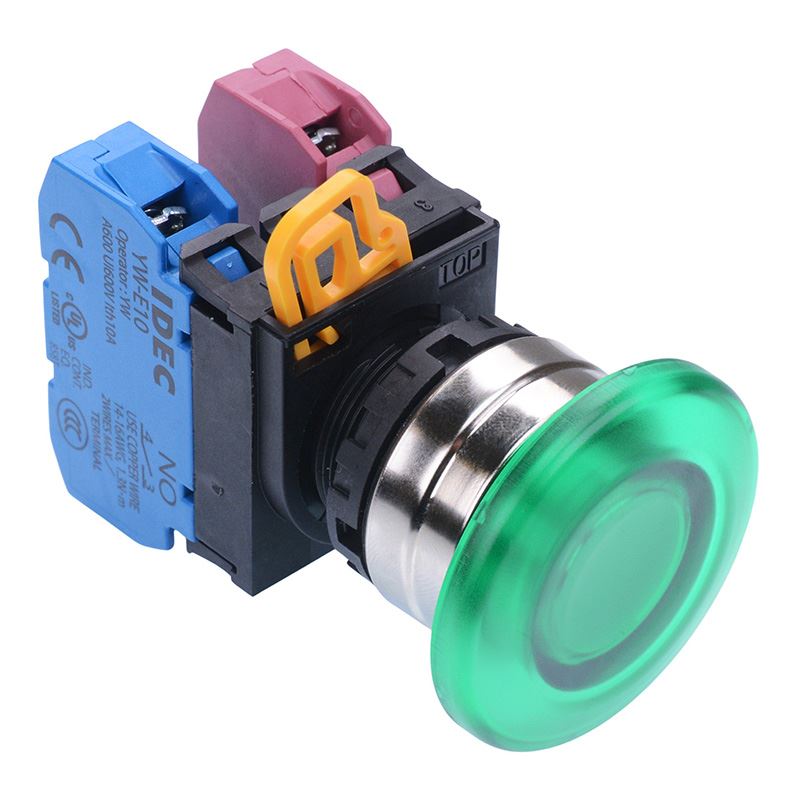

Green 22mm Metal Bezel Mushroom Momentary Push Button Switch 1NO-1NC IP65 YW4L-M4E11Q0G

Green 22mm Metal Bezel Mushroom Momentary Push Button Switch 1NO-1NC IP65 YW4L-M4E11Q0G
Green 22mm Metal Bezel Mushroom Momentary Push Button Switch 1NO-1NC IP65 YW4L-M4E11Q0G
from
$19.86
Ex Tax: $19.86
5 or more $17.68
10 or more $16.48
25 or more $15.49
50 or more $14.70
  • Stock: In Stock
  • Model: SCJ012971
  • SKU: SCJ012971
Products Sold: 0
Product Views: 22
  • Specifications
Attributes List
ActuationMomentary
ColourGreen
Contact Configuration1NO-1NC
Head TypeMushroom
Contact Rating2A 380V, 6A 240V
Current Rating10A
IlluminatedNo
Electrical Life100,000 Cycles
Illumination ColourWhite
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-20°C to +55°C
Panel Cut Out22.3mm
Panel Thickness0.8-6mm
Product SeriesYW
Terminal TypeScrew
Voltage Rating600V
  • Description
The YW4B-M4E11Q0G is a green momentary push button switch with a mushroom head from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 1NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 40mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Green 22mm Metal Bezel Mushroom Momentary Push Button Switch 1NO-1NC IP65 YW4L-M4E11Q0G
