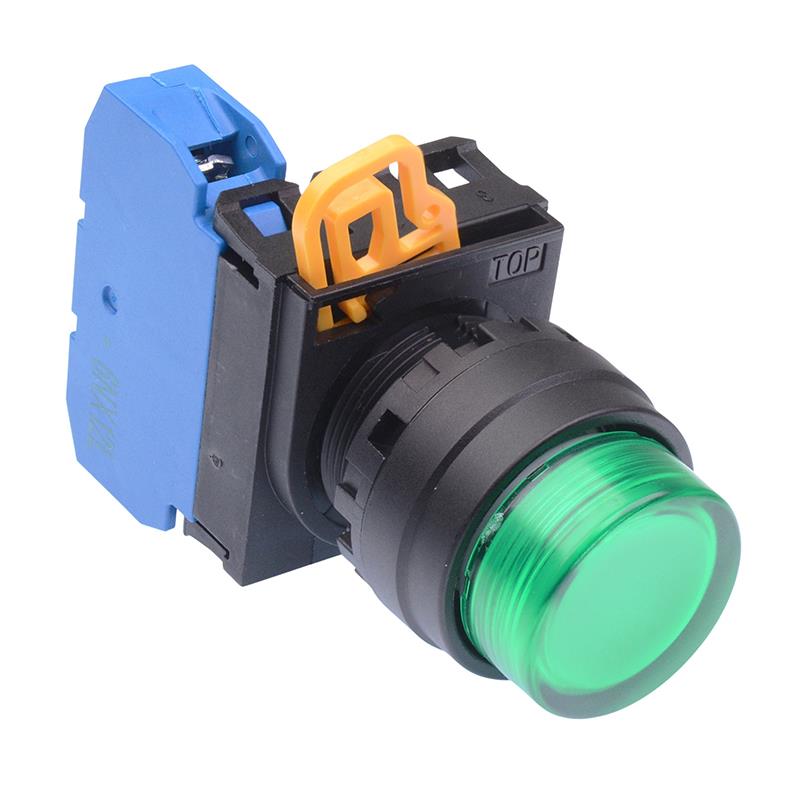

Green 22mm Momentary Push Button Switch NO IP65 YW1L-M2E10Q0G

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Green
Contact Configuration	1NO
Head Type	Extended
Contact Rating	2A 380V, 6A 240V
Current Rating	10A
Illuminated	No
Electrical Life	100,000 Cycles
Rated Thermal Current	10A
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	22.3mm
Panel Thickness	0.8-6mm
Product Series	YW
Terminal Type	Screw
Voltage Rating	600V

Description

The YW1B-M2E10Q0G is a green momentary push button switch from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

NO contacts

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
