Green Latching 12mm Metal Round Push Button Switch NO/NC

Green Latching 12mm Metal Round Push Button Switch NO/NC
Green Latching 12mm Metal Round Push Button Switch NO/NC
Green Latching 12mm Metal Round Push Button Switch NO/NC
Green Latching 12mm Metal Round Push Button Switch NO/NC
Green Latching 12mm Metal Round Push Button Switch NO/NC
0 reviews - Write a review
from
$4.90
Ex Tax: $4.90
10 or more $4.36
25 or more $4.11
50 or more $3.87
100 or more $3.67
  • Stock: In Stock
  • Model: SCJ014326
  • SKU: SCJ014326
Products Sold: 0
Product Views: 111
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
MOQ1
ColourGreen
Contact ConfigurationNO/NC
Contact Rating0.1A 12VDC
Current Rating0.1A
IlluminatedNo
Electrical Life10,000 Cycles
MaterialAluminium Alloy
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP40
Operating Temperature-25°C to +65°C
Panel Cut Out12mm
Panel Thickness4mm Max
Switch OperationOn-On
Terminal TypeSolder
Voltage Rating12VDC
  • Description

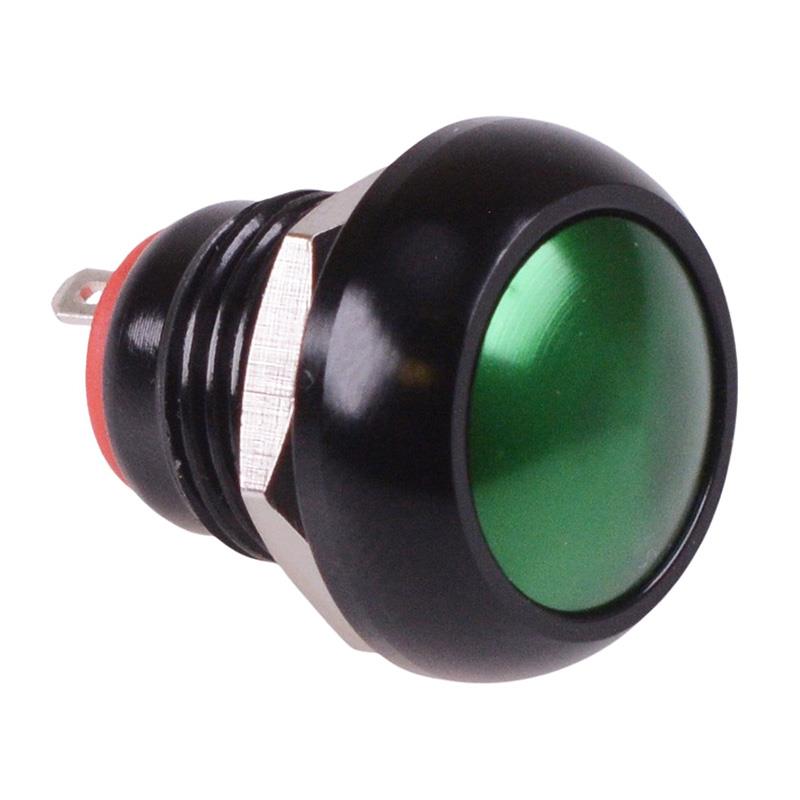

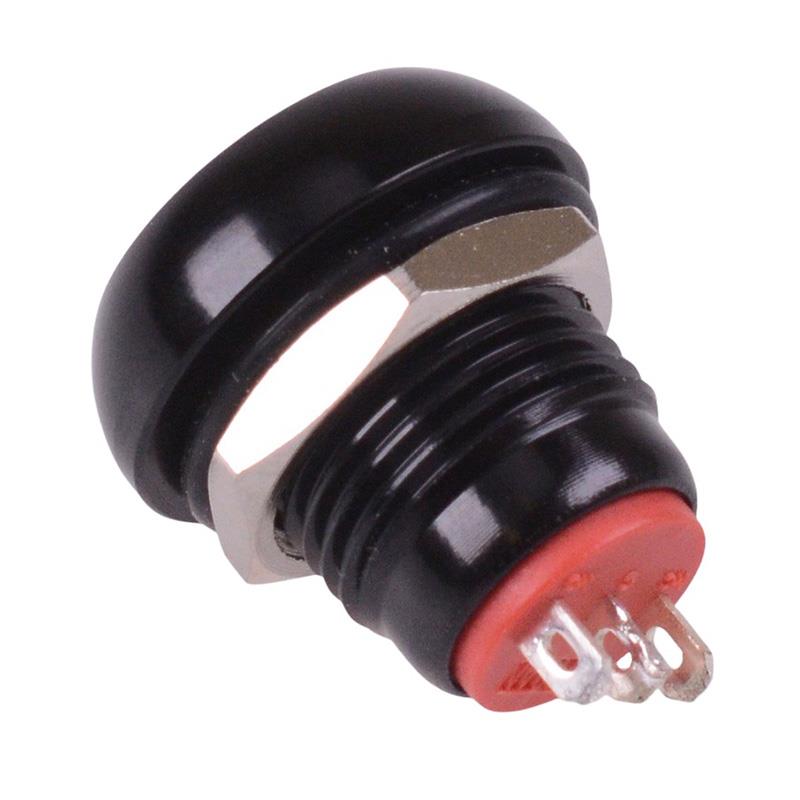

Green Latching 12mm Metal Round Push Button Switch NO/NC

Green latching push button switch featuring a round actuator and normally open contacts. The switch features an aluminium housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Latching operation
  • NO/NC contacts
  • IP40 protection rating
  • Solder terminals
  • Panel cut-out: 12mm
  • Panel thickness: 4mm max
  • Rating: 0.1A 12V
  • Dimensions: 22.3 x 17.8mm (height x diameter)

    • Green Latching 12mm Metal Round Push Button Switch NO/NC

    Green Latching 12mm Metal Round Push Button Switch NO/NC
