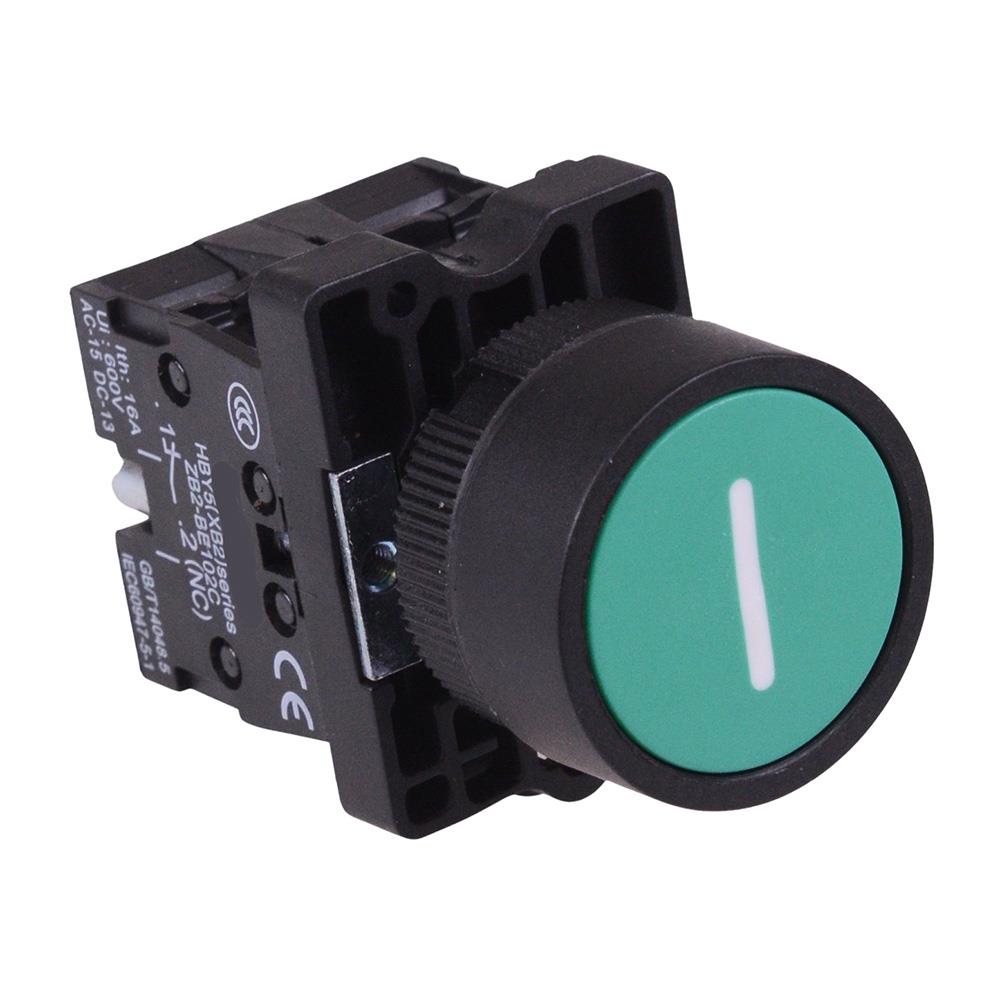

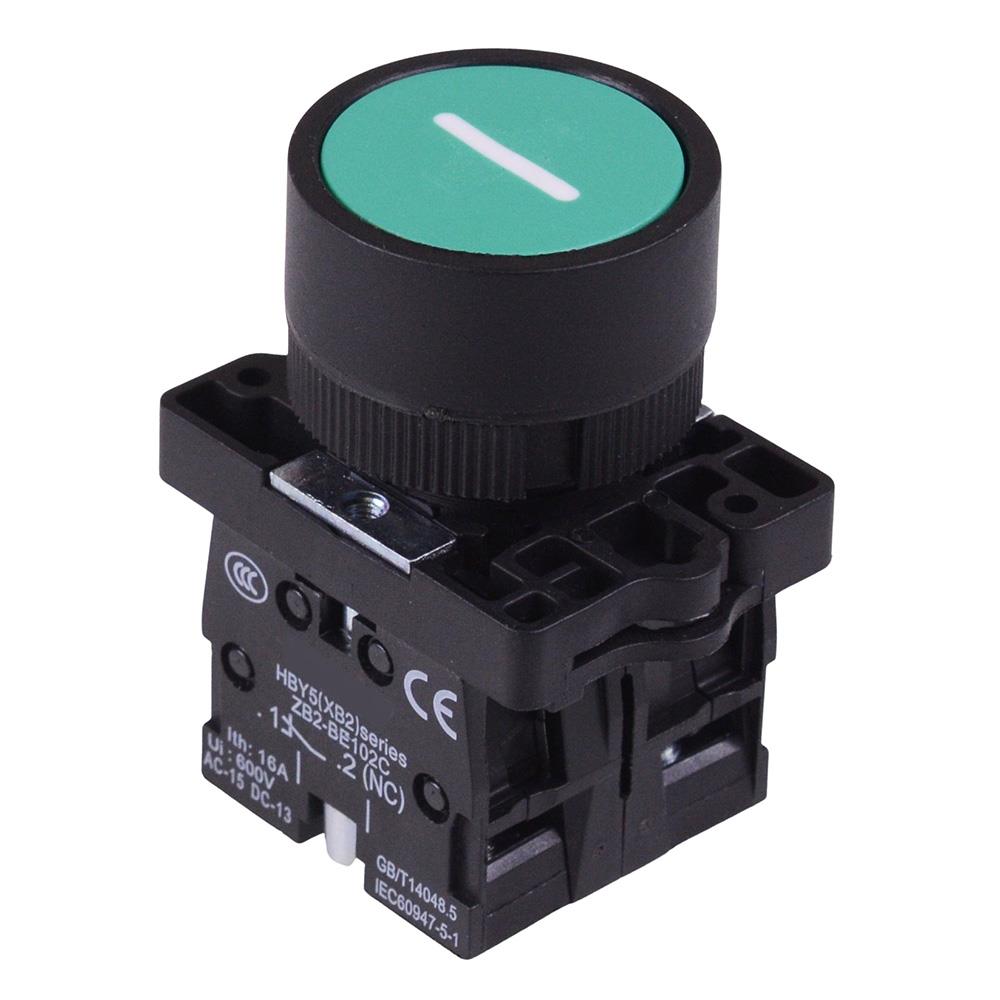

Green Momentary 22mm Push Button Switch White I NO/NC

0 reviews - Write a review

from

$5.83

Ex Tax: $5.83

Stock: In Stock
Model: SCJ013264
SKU: SCJ013264

Products Sold: 0

Product Views: 22

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Green
Contact Configuration	1NO-1NC
Contact Rating	10A 400V
Current Rating	10A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +65°C
Panel Cut Out	22mm
Panel Thickness	5mm
Terminal Type	Screw
Voltage Rating	400V

Description

Green industrial push button switch wth white 'I' symbol, featuring 1NO1NC contacts. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch requires a 22mm panel cut-out and is suitable for a wide range of industrial applications.

Corrosion resistant plastic construction

Interchangeable contact blocks and operators

Panel thickness: 5mm max

Panel cut-out: 22mm

Rated insulation voltage: 400V

Rated thermal current: 10A

1NO and 1NC contacts

Head diameter: 30mm
