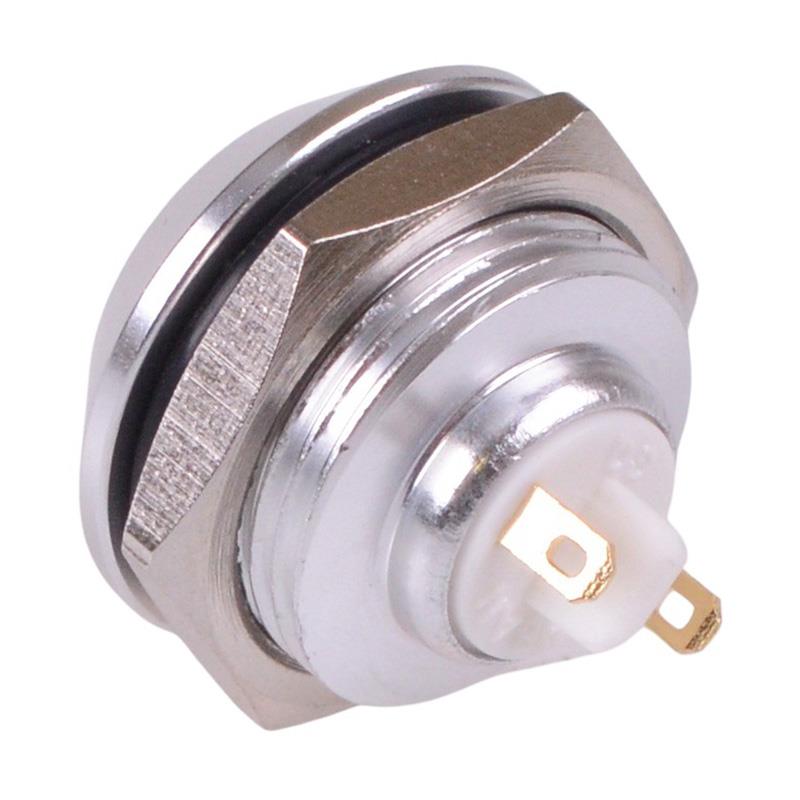

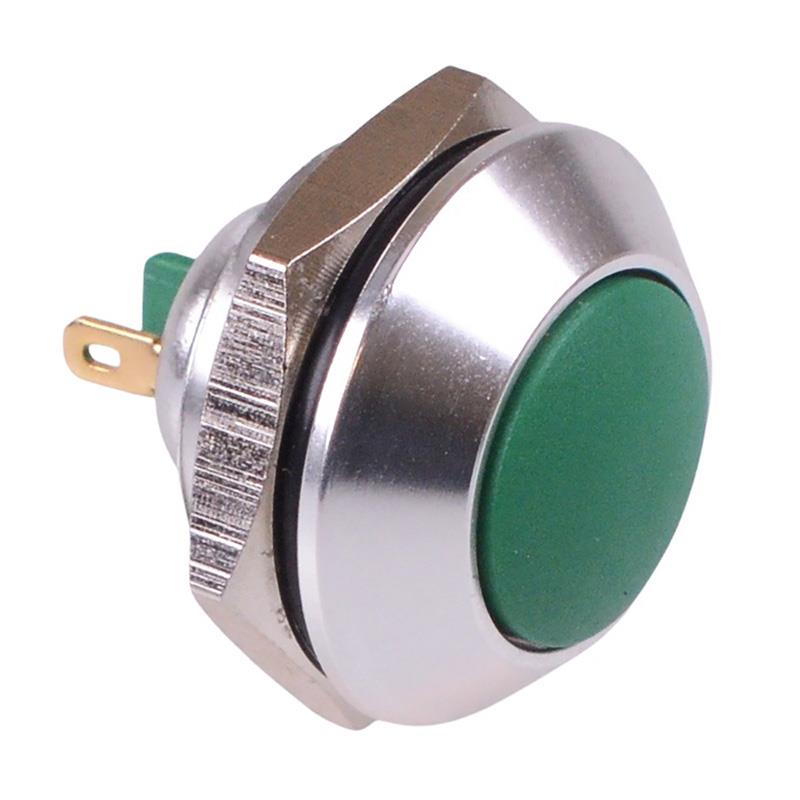

Green Off-(On) 16mm Metal Round Push Button Switch IP65 SPST

Green Off-(On) 16mm Metal Round Push Button Switch IP65 SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Green
Contact Configuration	SPST
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +65°C
Panel Cut Out	16mm
Panel Thickness	4mm Max
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Green Off-(On) 16mm Metal Round Push Button Switch IP65 SPST

Green momentary push button switch featuring a round actuator and normally open contacts. The switch features a stainless steel housing and is suitable for mounting in 16mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

SPST-NO contacts

IP65 protection rating

Solder terminals

Panel cut-out: 16mm

Panel thickness: 4mm max

Rating: 3A 250V

Dimensions: 20.0 x 19.8mm (height x diameter)
