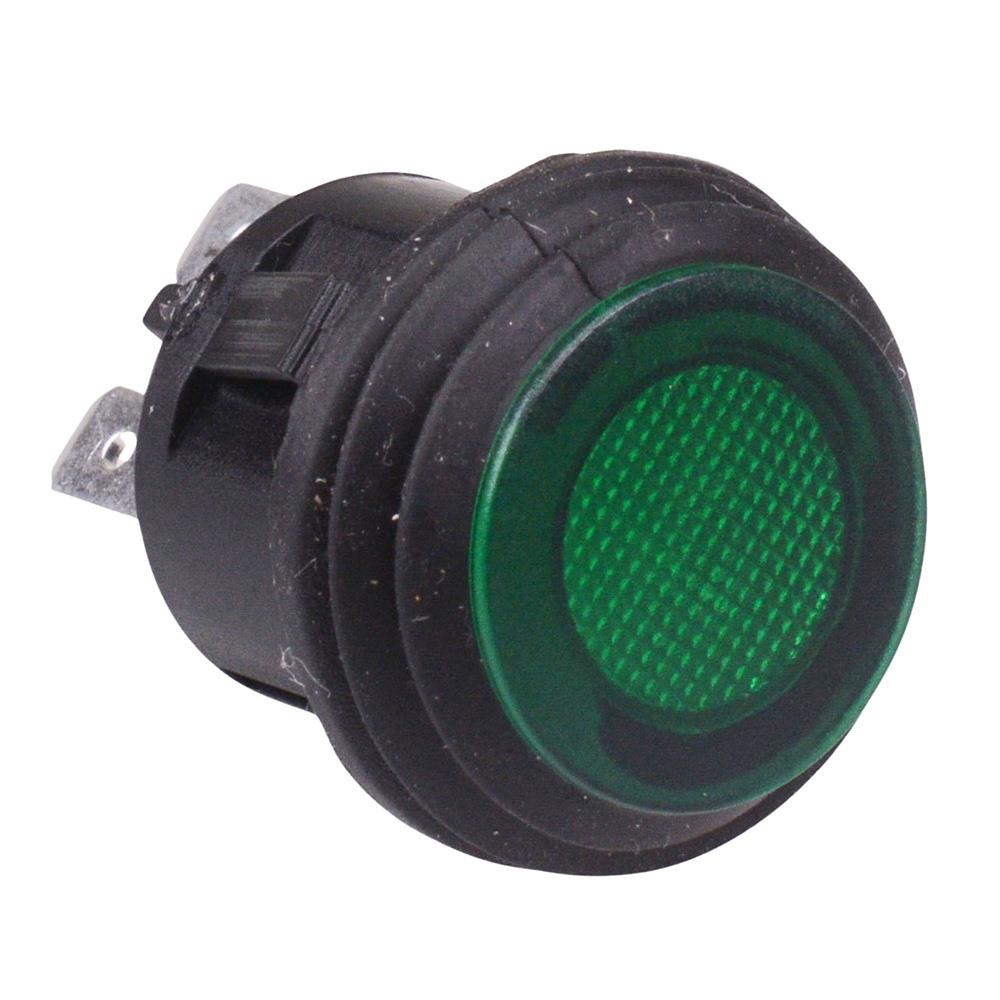

Green On-Off 12V illuminated Push Button Switch 20A

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Green
Contact Configuration	SPST
Contact Rating	20A 12VDC
Current Rating	20A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Green
Illumination Voltage	12VDC
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	20mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	12VDC

Description

Green On-Off 12V illuminated Push Button Switch 20A

illuminated latching push button switch featuring a green LED and 4.8mm quick connect terminals suitable for 12V applications including automotive.

On-Off action

SPST contacts

Green 12V LED

Rating: 20A 12VDC

4.8mm quick connect terminals

Panel cut-out: 20mm

Dimensions: 35.7 x 25mm (Height x Diameter)
