Green On-Off Latching 12mm Red LED Push Button Switch IP65 SPST
from
$4.38
Ex Tax: $4.38
10 or more $3.89
25 or more $3.67
50 or more $3.45
100 or more $3.29
- Stock: In Stock
- Model: SCJ014335
- SKU: SCJ014335
Products Sold: 0
Product Views: 120
Ask a Question About This Product
- Description

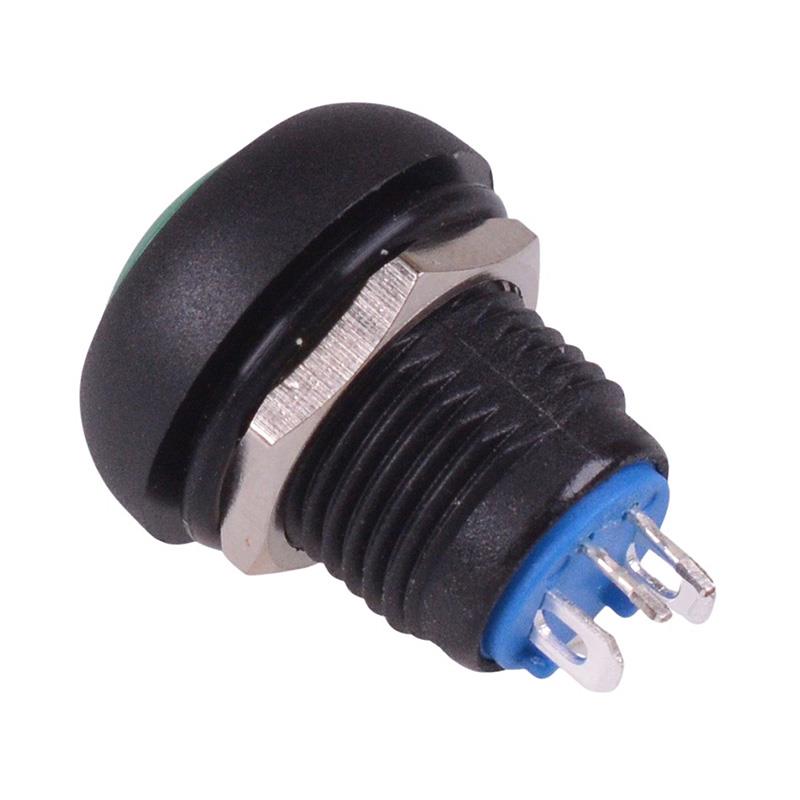

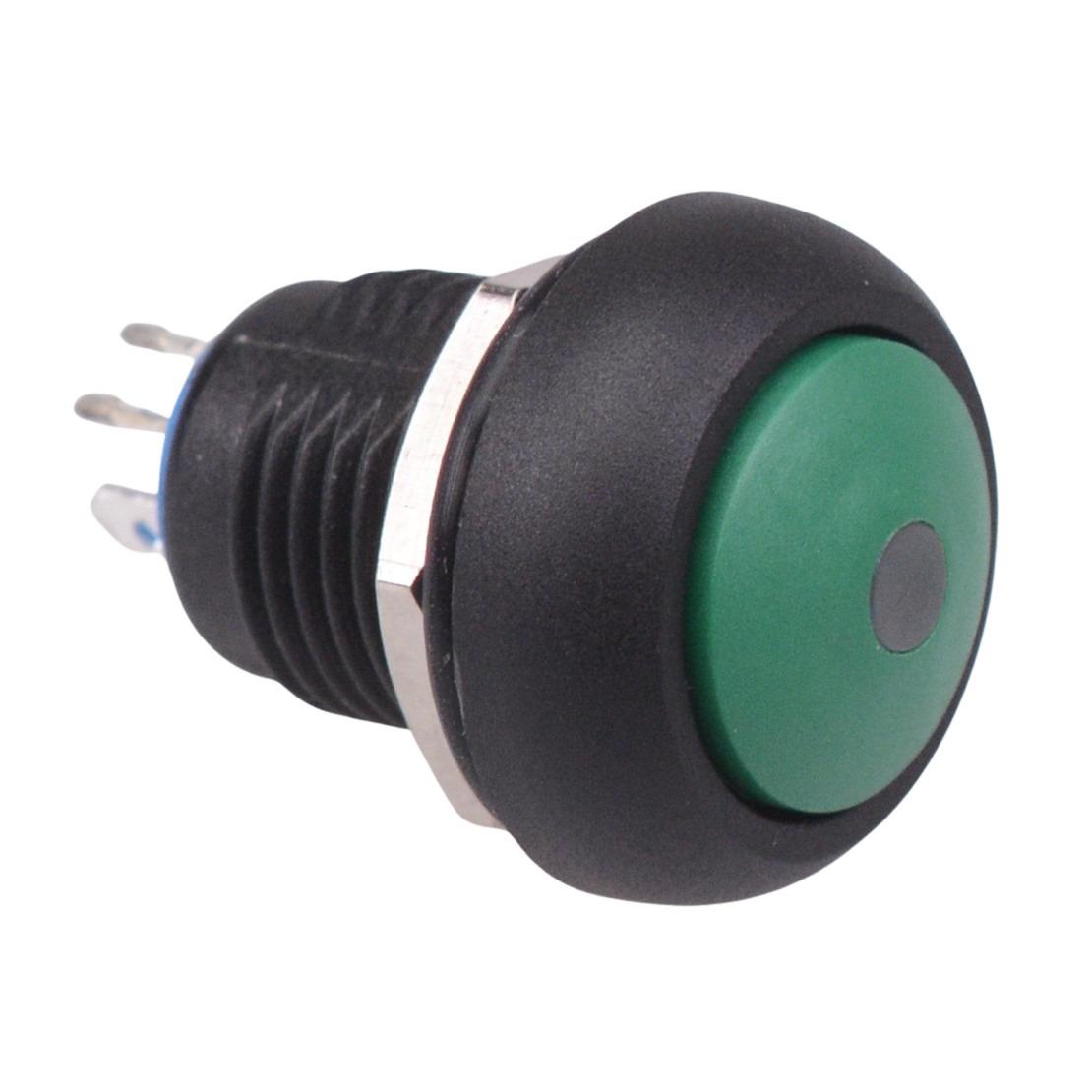

Green On-Off Latching 12mm Red LED Push Button Switch IP65 SPST
Green latching push button switch featuring a round actuator and red LED. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Latching operation SPST contacts IP65 protection rating 2.8x0.5mm quick connect terminals LED voltage: 3V Rated current: 20mA Panel cut-out: 12mm Panel thickness: 6mm max Rating: 2A 250V Dimensions: 24.75 x 18mm (height x diameter)
