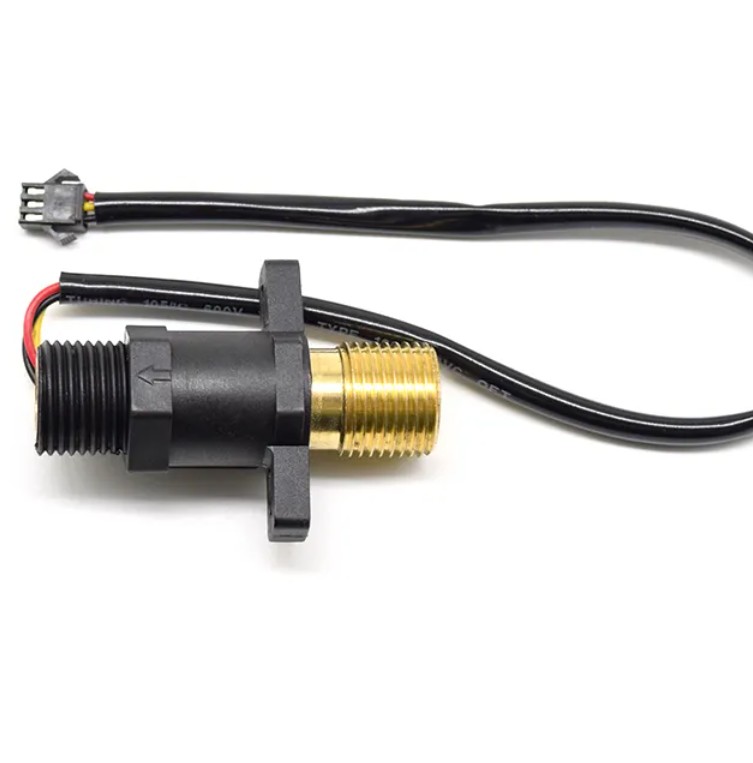

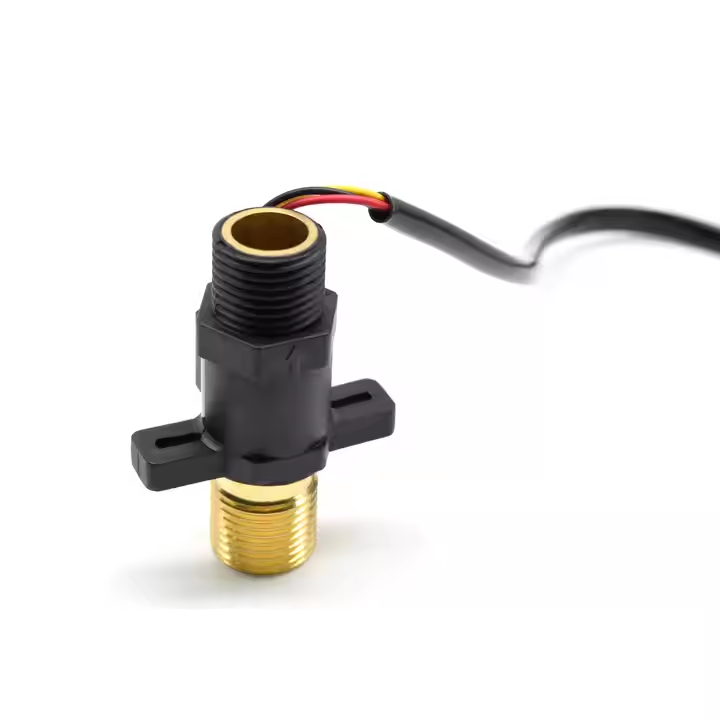

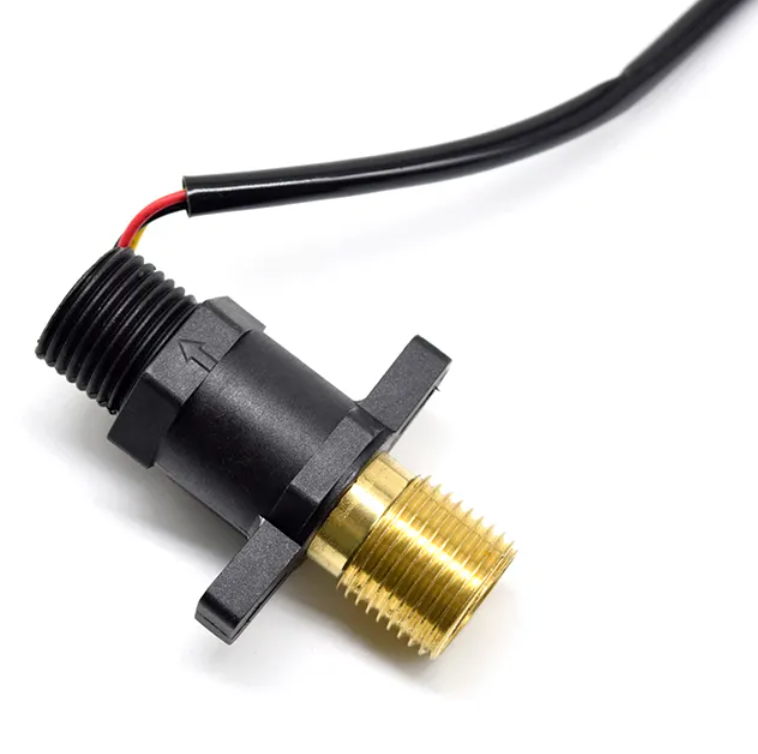

Hall Effect Water Sensor Flow Pulse Signal Style G1/2&quot; Nylon Water Flow Sensor Suitable for Instant Water Heater

1. Water inlet and outlet in a zigzag structure

2. Waterproof and explosion-proof, heat-resistantand cold resistant

3. Can be used as a flow meter or water flow switch

4. Pulse signal output

5. Can be connected to temperature control probes

Buy Now

Technical Parameters

Use

flow detection flow meter

Other attributes

Mounting Type

Any direction

Description

flow rate detection

Model Number

SCJ2300109J

Type

Liquid Flow Sensor

Series

flow sensor

Place of Origin

Guangdong, China

Brand Name

SCJ

Theory

Hall principle

Output

NPN Pulse output

Description

flow rate sensor

using medium

Water, etc

Low temperature version

≤80℃

High temperature version

≤100℃

Flow range

1-30L/min

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X8 cm

Single gross weight:

1.000 kg

Description

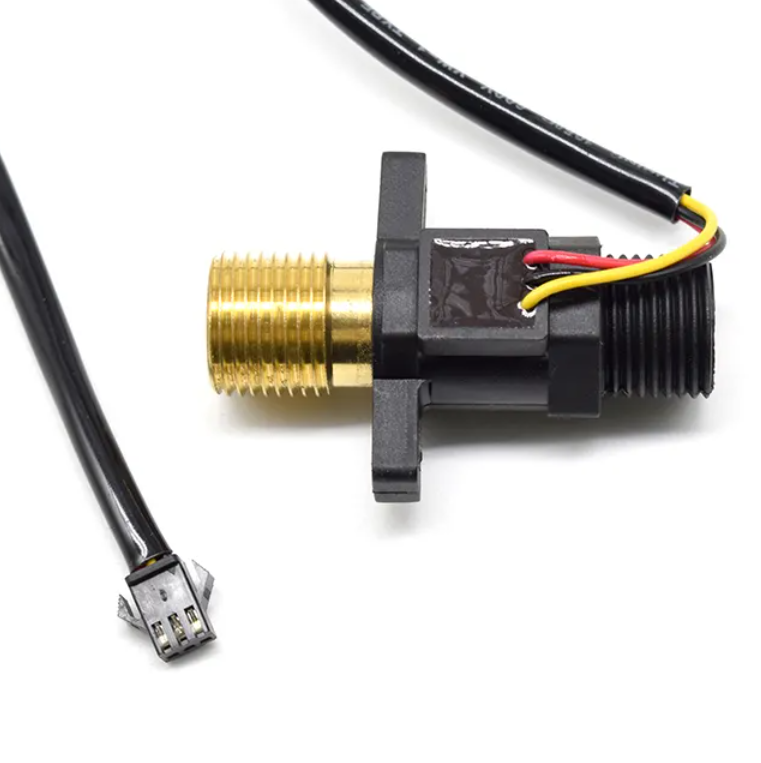

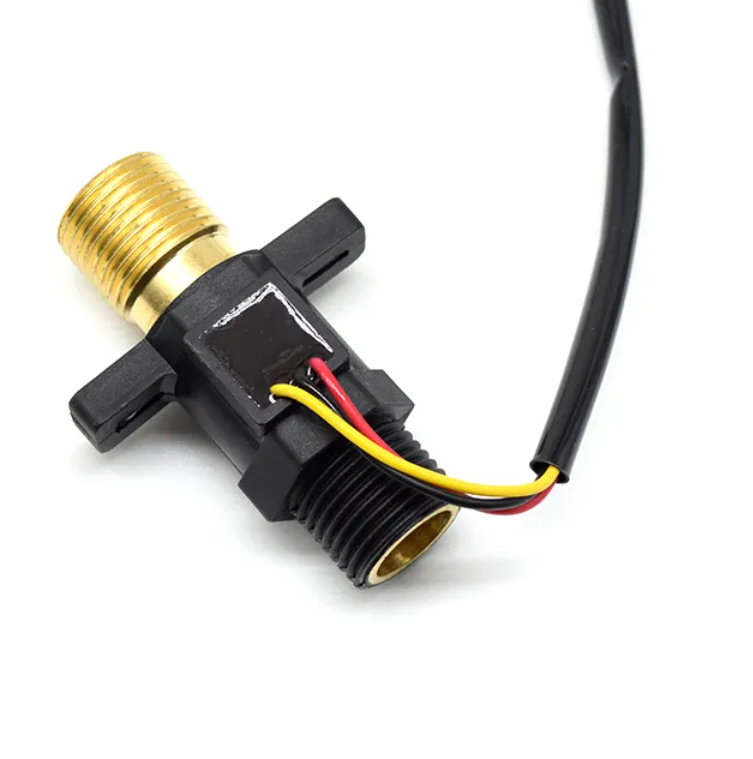

Hall water flow sensor with temperature control probe, straight inlet and outlet water, waterproof and explosion-proof, heat-resistant and cold resistant, Hall working principle, pulse signal output, can be used as a water flow switch, and can also be used to measure flow. Three wire connection: red represents the positive pole, black represents the negative pole, and yellow represents the pulse signal; Can be used for gas wall mounted boilers, electric water heaters, underfloor heating, circulating water systems, water control machines, water vending machines, instruments, mechanical equipment, etc. The length of the connecting wire and the type of connecting terminal can be set according to customer requirements.
