60 MHz Handheld Oscilloscope, 500 MSa/s, Single Channel 1pc
Brief
The 3-in-1 oscilloscope and multimeter offer a bandwidth of 60 MHz, sample rates of 500 MSa/s, and record lengths of 24k points. Digital oscilloscope has the advantages of small in size, lightweight, multifunction and long service life.
Description
Lower-cost single-channel portable oscilloscope with 500 MSa/s sample rates, 8 bits, and 6 kinds of automatic measurement functions. The single-channel oscilloscope can quickly and accurately detect the faults of the circuit under test and can serve as an assistant, and will provide a great convenience for you at work.
Specification
Performance Characteristics
| Model | SCJ009643 |
| Bandwidth | 60 MHz |
| Channel | Single channel |
| Sample rate | 500 MSa/s |
| Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1～2.5～5 |
| Record length | 24K points |
| Display | 3.7" color TFT display (640 * 480 pixels) |
| Waveform refresh rate | 10000 wfrms/s |
| Input coupling | DC, AC, Ground |
| Input impedance | 1 MΩ±2%, in parallel with 18 pF±5 pF |
| Probe attenuation | 1X,10X,100X,1000X |
| Max. input voltage | 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II |
| Bandwidth limit(typical) | 20MHz / Full bandwidth |
| Sampling rate range | 5ns/div ~ 500s/div, step by 1 – 2 - 5 |
| DC Accuracy (average) | average >16: ±(5% reading + 0.05div) for △V |
| Vertical Sensitivity | 5mV/div～5V/div (at input) |
| Rise time (at input, Typical) | ≤ 17.5ns |
| Trigger type | Edge and Video |
| Trigger model | Auto, Normal, Single |
| Trigger level range | ±6 div from the screen center |
| Automatic measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B |
| Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors,auto cursor |
| Communication interface | USB Type-C |
| Acquisition Mode | Sample, Peak Detect, and Average |
| Interpolation | sin (x) / x |
| Vertical Resolution (A/D) | 8 bits |
| Waveform Storage | 4 waveforms |
| Communication Interface | Mini-USB，mini-RS232 |
| Power Supply | 100V-240V AC, 50/60Hz |
Digital Multimeter Specification
| Full-Scale Reading | 3 3/4 digits (max 4000-count) |
| Diode | 0V-1.5V |
| Input Impedance | 10 MΩ |
| On/ Off Test | < 50 (± 30) beeping |
| Voltage | VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V |
| VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz; | |
| Max input: AC 750V (virtual value) | |
| Current | DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits) |
| AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits) | |
| Impedance | 400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits) |
| Capacitance | 51.2nF - 100uF: ±(3% ± 3 digits) |
Accessories
- Power cord
- CD rom
- USB cable
- Probe
- Probe Adjust
- Multimeter lead
- Adapter
- User manual
- 5V, 1KHz Output
- Capacitance Ext Module
- Soft Bag
- Metal Case (optional)

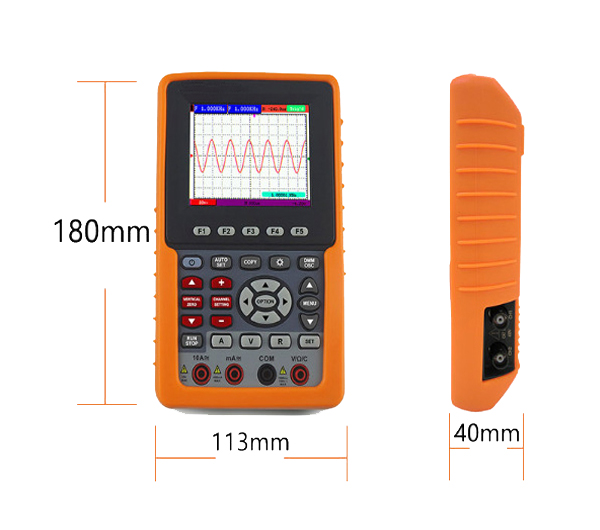

Dimension (mm)
Tips: Tips for using a handheld oscilloscope
- Thermal electronic instruments generally need to avoid frequent startup and shutdown, and the same is true for oscilloscopes.
- If you find that the waveform is disturbed by the outside world, you can ground the oscilloscope shell.
- The voltage of "Y input" should not be too high, so as not to damage the instrument, and it should not exceed 400V at the maximum attenuation. When the "Y input" wire is suspended in the air, interference waveforms will appear due to external electromagnetic interference, which should be avoided.
- Before shutting down, turn the brightness adjustment knob counterclockwise to the bottom to minimize the brightness, and then turn off the power switch. Analog oscilloscope.
- When observing and adjusting the bright spot on the screen, the brightness of the bright spot should be moderate and not too bright.
