PS200 vector antenna analyzer meter 34.375mhz-2.7ghz for swr s11
from
$129.99
Ex Tax: $129.99
- Stock: In Stock
- Model: SCJ003381
- SKU: SCJ003381
Products Sold: 0
Product Views: 450
Ask a Question About This Product
- Description
rf vector antenna analyzer swr meter 34.375mhz-2.7ghz for resistor impedance swr s11 ps200 n1201sa+
illustrate:
The instrument has four interfaces: single-point measurement, digitization, system information, calibration and calibration.
The single-point measurement interface is initialized by default.
Note: For the convenience of users, the calibration option will automatically switch to user calibration each time. At the same time, in order to ensure the integrity of the calibration, the automatic shutdown function is invalid during the calibration process, and the startup is consistent.
Startup and shutdown:
Hold down the ctrl key and press the power switch button.
In the power-on state, press and hold (more than 2s) the switch button, and the instrument will shut down after releasing it.
In the power-on state, press and hold (more than 2s) the switch button, and the instrument will shut down after releasing it.
Notice:
You need to press and hold the second switch and the fourth switch at the same time to turn it on.
Recommended use:
1. To ensure accurate measurements and calibrations, allow the instrument to warm up for at least 15 minutes.
2. Try to use good quality RF cables and connectors.
3. The cable marked with calibration may not need to be calibrated next time and can be used directly.
4. The technology of the test leads affects the measurement accuracy. It is recommended not to choose too long test leads.
5. Before measuring and calibrating, please ensure that you are in an environment with strong wireless signals to avoid interference caused by inaccurate measurements.
6. If you do not understand the impedance measurement itself, you can consult the instructions and tutorials of the vector network analyzer. This instrument is equivalent to a one-port vector network analysis.
Specification:
Frequency: 34.375mhz-2.7ghz
Pitch: 1khz - Display
: 2.4 inches 320x240 tft pixels (qvga) - nominal
Capacity: 2000mah (7.4wh)
- Power Consumption: <1.5w -
Charging current: 400ma
- Charging port: USB (for charging only)
- Auto Power Off: Adjustable (Always On; 5 min 60 60 min) -
Measured data: resistance/reactance/swr/s11 - Resolution:
4 significant figures - frequency
Accuracy: 55ppm - Connector
: SMA-K-
Measuring range:
* Impedance: 0.1Ω～1000Ω (absolute impedance value);
* SWr: 1000 65 65;
* S11(db): 0db to-60db
-Error (single point measurement):
* Impedance:
* Swr:
* S11 (db/°): 0.1 db/5° (0db to -10db); 1dB/10° (-10dB to -20dB); 5db/20° (-20db to -40db)
- Directivity: <35db (35mhz 2 2ghz after calibration); <30db (2ghz~2.7ghz) - Number of scan points
: 280
- Output level: -18dbm - working
Temperature: 0℃~40℃ -
Atmospheric pressure: 860hpa 101060hpa
Size: 98x86x30mm

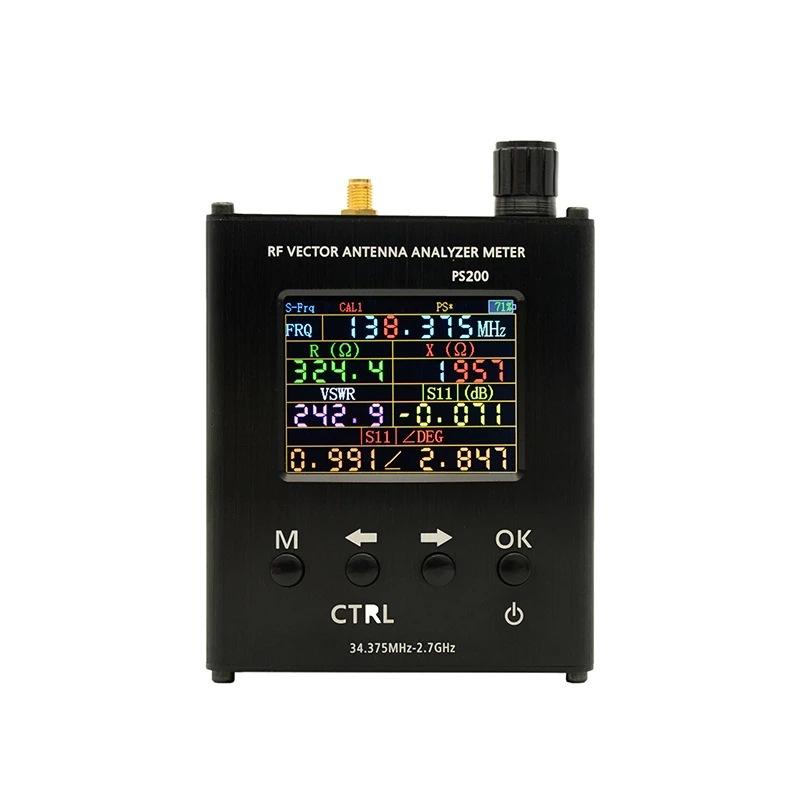

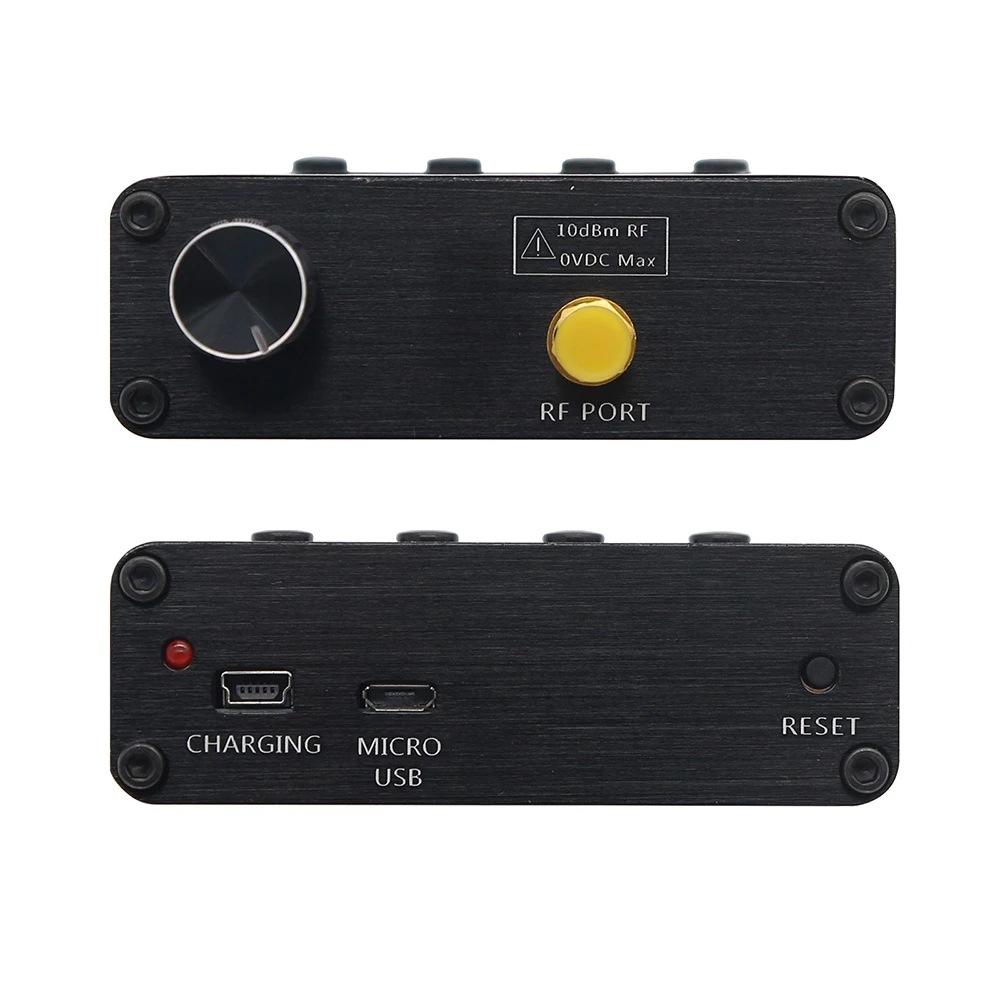

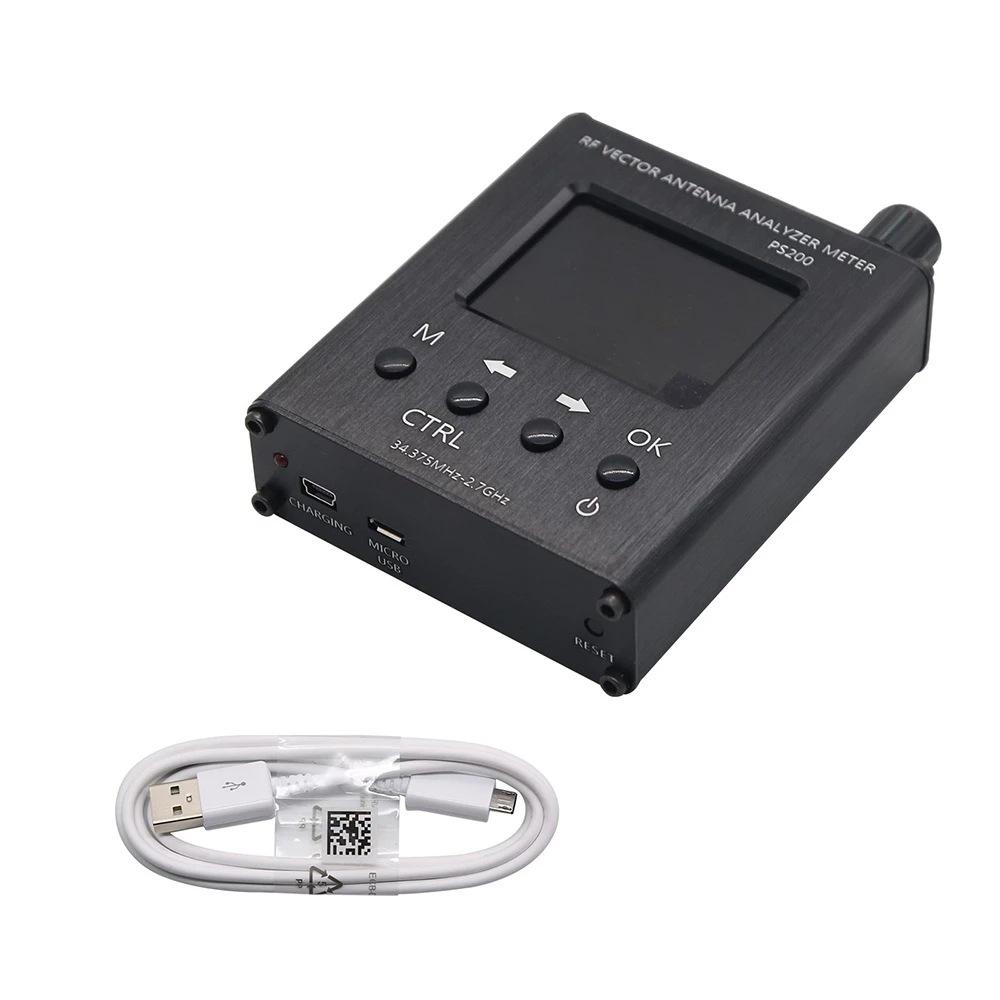

Package includes:
-1 x Analyzer Kit Antenna
