Heavy Duty Connector 10 Pin AC 250V/500V 16A

10 pin heavy duty connector with working voltage AC 250V/500V and current 16A.

Specification:

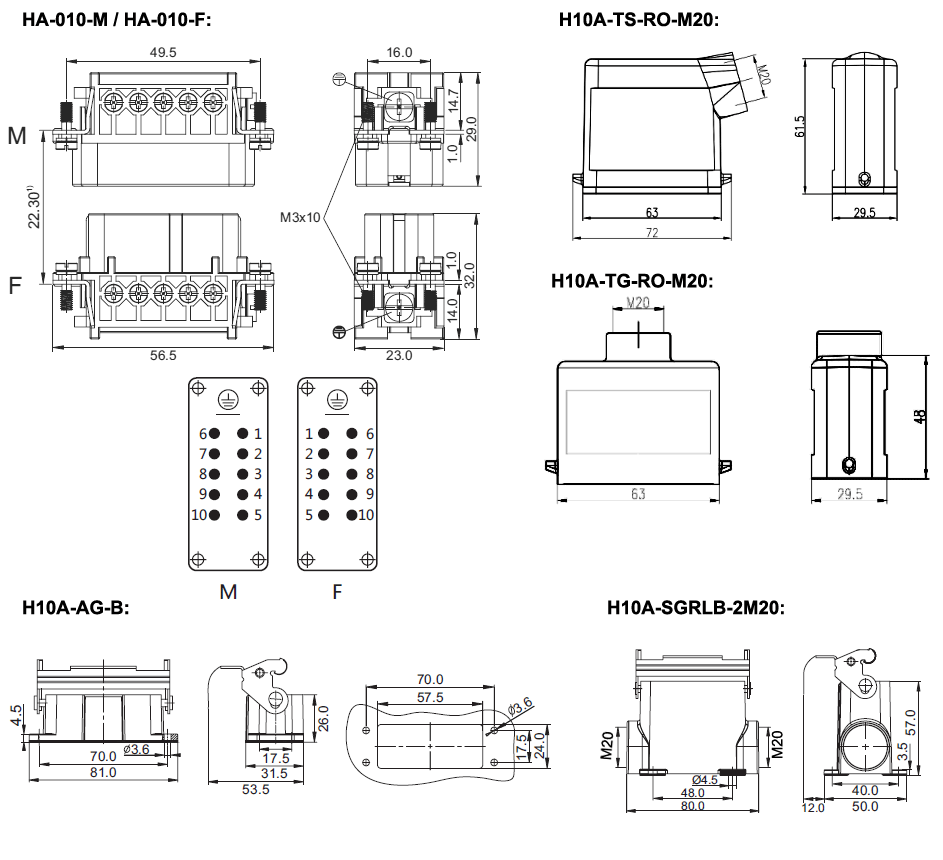

Dimension for 10 pin 250V heavy duty connector (unit: mm):

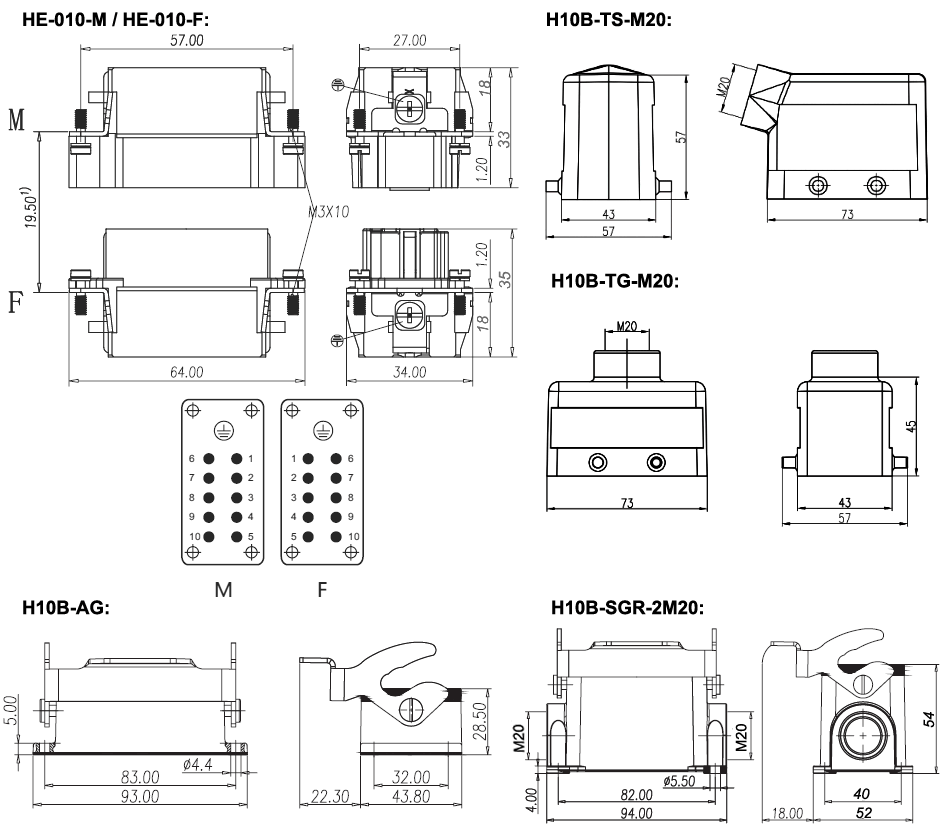

Dimension for 10 pin 500V heavy duty connector (unit: mm):

Tips: What is the pollution degree of heavy-duty connector?

Pollution degree
The following classifications conform to IEC60664-1.
The measurement of the device is related to environmental conditions. Pollution that may occur will affect its electrical conductivity and affect the surface insulation performance with humidity. The degree of contamination affects the structure of the component through creepage distances. The degree of pollution is defined according to environmental conditions as unprotected, bare insulation.

Pollution degree I
No pollution or only dry non-conductive pollution, which has no effect, such as a computer room, measuring equipment room.

Pollution Degree II
Only non-conductive pollution occurs, but it must be expected that condensate will occasionally have transient conductive pollution, such as residential, commercial buildings, laboratories, precision machinery workshops.

Pollution Degree III
There is conductive pollution, or dry non-conductive pollution becomes conductive pollution due to expected condensation. Such as unheated warehouses, workshops or boiler rooms and electrical equipment or machine tools of the unit. Heavy-duty connectors are designed according to pollution degree III.

Pollution Degree IV
Causes persistent conductive pollution, for example, caused by conductive dust or rain and snow. Such as the open air or outdoor spaces, roof equipment of trains or trams.
