24 pin heavy duty connector with working voltage 500VAC and current 16 Amp.
Specification:
| Basic | Model | SCJ009627 | SOCOJE-HDCN-HE-024-2 | SOCOJE-HDCN-HE-024-3 | SOCOJE-HDCN-HE-024-4 |
| Shipping weight | 1kg | ||||
| Standard | DIN EN 60 664-1, DIN EN 61 984 | ||||
| Number of pins | 24 pin + PE | ||||
| Certificate | CCC, CE, ROHS, RU, CSA, TUV | ||||
| Inserts | Item | HE-024-M | HE-024-M | HE-024-M | HE-024-M |
| Working current | 16A | ||||
| Working voltage | 500V | ||||
| Rated pulse voltage urms | 6kV | ||||
| Pollution degree | 3 (C) | ||||
| Insulation resistance | ≥1010Ω | ||||
| Material | Polycarbonate | ||||
| Working temperature Range | -40℃~+125℃ (-40℉~+257℉) | ||||
| Flammability according to UL94 | V0 | ||||
| Working voltage according to UL / CSA | 600V | ||||
| Insertion / withdrawal cycles | ≥500 | ||||
| Contacts | Item | HE-024-F | HE-024-F | HE-024-F | HE-024-F |
| Material | Copper alloy | ||||
| Surface treatment | Silver/ Gold plating | ||||
| Contact resistance | ≤1mΩ | ||||
| Wiring form | Screw connection | ||||
| Wire specification | 0.75-2.5mm2 AWG 18-14 | ||||
| Tightening torque | 0.5N·m | ||||
| Shell | Hood item | H24B-TS-M25 | H24B-TG-M25 | H24B-TS-M25 | H24B-TG-M25 |
| Hood thread | M25 | M25 | M25 | M25 | |
| Housing item | H24B-AG | H24B-AG | H24B-SGR-2M25 | H24B-SGR-2M25 | |
| Housing thread | - | - | 2*M25 | 2*M25 | |
| Material | Cast aluminum | ||||
| Surface treatment | Powder-coated, gray | ||||
| Interlocking element | Interlocking method: metal elastic pressing, material: galvanized iron | ||||
| Sealing element | NBR | ||||
| Applicable temperature range | -40℃~+125℃ (-40℉~+257℉) | ||||
| Flammability class | V0 | ||||
| Protection class | IP65 | ||||

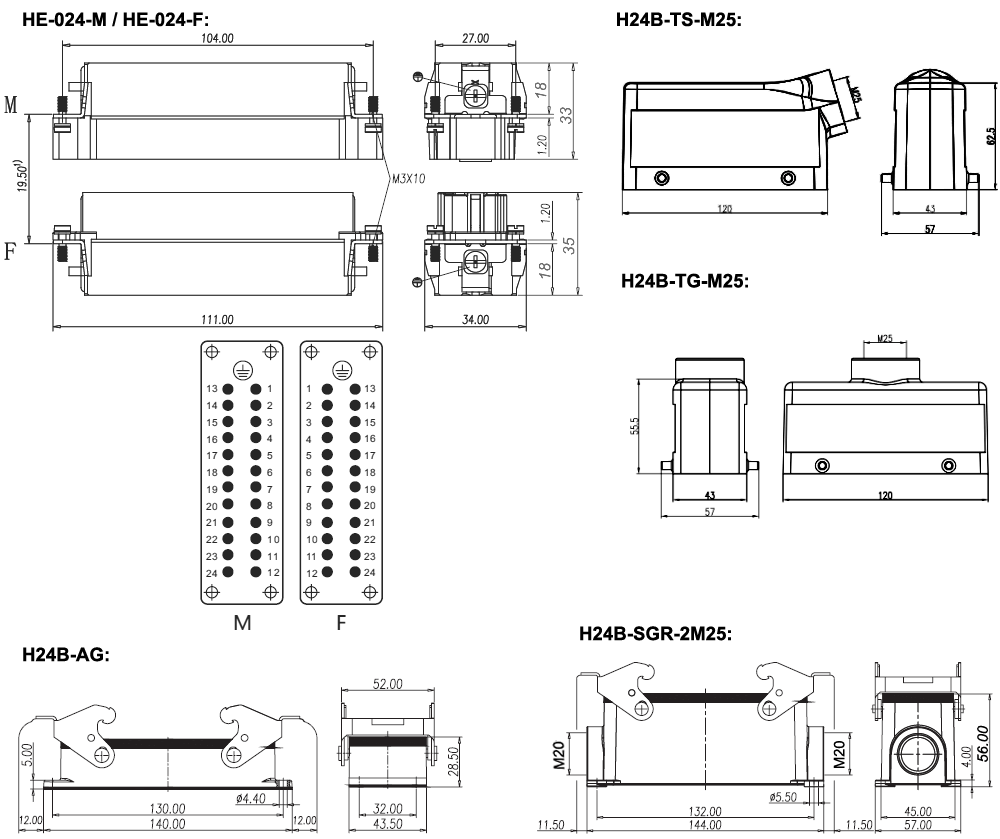

Dimension (unit: mm):
Tips: What are the advantages of heavy duty connector compared with traditional connection methods?
Heavy duty connector is designed for demanding applications. It consists of three important components: inserts, contacts and shell. The inserts and contacts form an electrical module to provide electrical connections for the device, while the housing is made of metal or thermoplastic material, with a strong structure that can provide reliable mechanical and environmental protection for the electrical connection. The waterproof and anti-corrosion characteristics of the metal shell ensure that the heavy duty connector can work in harsh environments and meet the needs of users' outdoor connections.
The heavy-duty connector adopts a modular design and continuously expands functions according to the needs of the application. It not only realizes barrier-free and fast connection between modular equipment, but also guarantees the transmission of signals and power supply, and meets the diverse connection needs of users. For mechanical equipment manufacturers, it can save installation time, improve connection secure and reliable, and reduce overall production costs.
Compared with traditional connection methods, using heavy duty connectors can save installation costs of 20-30% for processing centers, while increasing production efficiency. It is mainly used in industrial automation, equipment manufacturing, industrial system, control technology and other fields.
