Heavy Duty Connector, 3 Pin, AC 250V / 10A
from
$74.81
Ex Tax: $74.81
- Stock: In Stock
- Model: SCJ009622
- SKU: SCJ009622
Products Sold: 0
Product Views: 244
Ask a Question About This Product
- Description
Brief
3 pin heavy duty connector has 10A working current, 250VAC working voltage, 500 insertion/withdrawal cycles and optional 5 shell items. The applicable temperature range is -40℃~+125℃ (-40℉~+257℉). The protection class of heavy duty connector is IP65.
Description
3 pin heavy duty connector with working voltage AC 250V and current 10A.
Specification:
| Basic | Model | SCJ009622 | SOCOJE-HDCN-HA-003-2 | SOCOJE-HDCN-HA-003-3 | SOCOJE-HDCN-HA-003-4 | SOCOJE-HDCN-HA-003-5 |
| Shipping weight | 1kg | |||||
| Standard | DIN EN 60 664-1, DIN EN 61 984 | |||||
| Number of pins | 3 pin + PE | |||||
| Certificate | CCC, CE, ROHS, RU, CSA, TUV | |||||
| Inserts | Item | HA-003-M | HA-003-M | HA-003-M | HA-003-M | HA-003-M |
| Working current | 10A | |||||
| Working voltage | 250V | |||||
| Rated pulse voltage urms | 4kV | |||||
| Pollution degree | 3 (C) | |||||
| Insulation resistance | ≥1010Ω | |||||
| Material | Polycarbonate | |||||
| Working temperature Range | -40℃~+125℃ (-40℉~+257℉) | |||||
| Flammability according to UL94 | V0 | |||||
| Working voltage according to UL / CSA | 600V | |||||
| Insertion / withdrawal cycles | ≥500 | |||||
| Contacts | Item | HA-003-F | HA-003-F | HA-003-F | HA-003-F | HA-003-F |
| Material | Copper alloy | |||||
| Surface treatment | Silver/ Gold plating | |||||
| Contact resistance | ≤1mΩ | |||||
| Wiring form | Screw connection | |||||
| Wire specification | 0.75-1.5mm2 AWG 18-16 | |||||
| Tightening torque | 0.25N·m | |||||
| Shell | Hood item | H3A-MTS-M20 | H3A-MTG-M20 | H3A-MTS-M20 | H3A-MTG-M20 | H3A-MTG-M20 |
| Hood thread | M20 | M20 | M20 | M20 | M20 | |
| Housing item | H3A-MAG | H3A-MAG | H3A-MAGSV-M20 | H3A-MAGSV-M20 | H3A-MTGVB-M20 | |
| Housing thread | - | - | M20 | M20 | M20 | |
| Material | Cast zinc | |||||
| Surface treatment | Powder-coated, gray | |||||
| Interlocking element | Interlocking method: metal elastic pressing, material: stainless steel/galvanized iron | |||||
| Sealing element | NBR | |||||
| Applicable temperature range | -40℃~+125℃ (-40℉~+257℉) | |||||
| Flammability class | V0 | |||||
| Protection class | IP65 | |||||

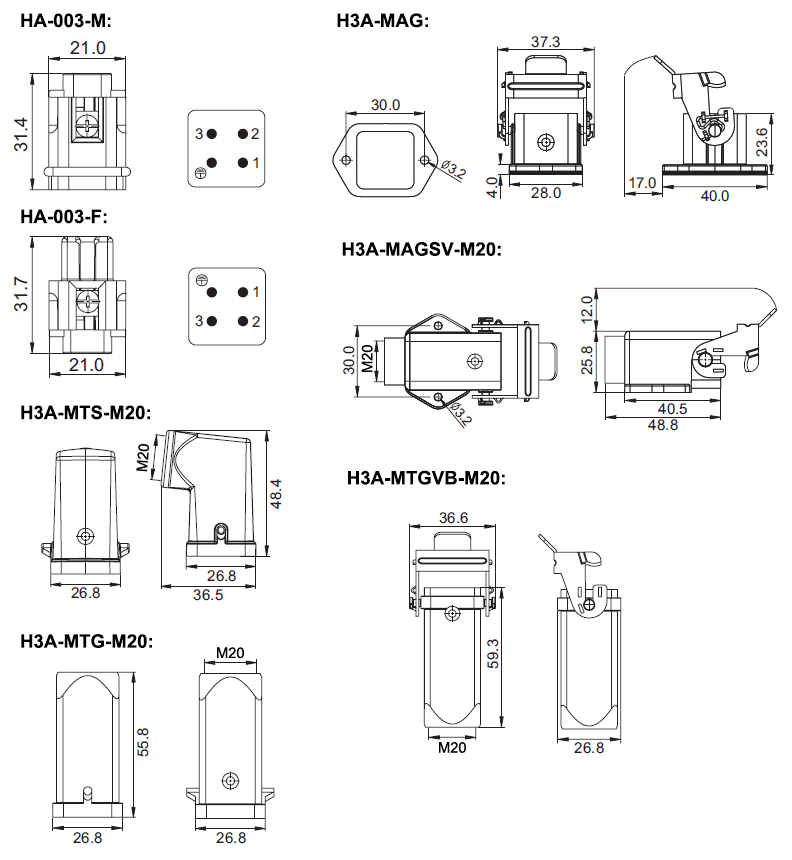

Dimension (unit: mm):
Tips: What are the features of heavy duty connector?
Heavy duty connector has great advantages in structural design and material that makes the heavy duty connector stand out in terms of electrical performance. Its reliability in the electrical connection system cannot be achieved by traditional connection methods.
- Achieve pre-installation: Pre-installation for large and complex circuits can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
- Heavy duty connector provides highly integrated connections, and the rich combination methods maximize the effective utilization of equipment space.
- The heavy duty connector conveniently and efficiently implements the modular structure of each functional template block of the device, making the device convenient and safe for transportation, installation, maintenance and repair. Connectors are widely used in the field of power transmission and distribution.
- The high protection class provided by heavy duty connectors (IP65, IP68) has unparalleled advantages for equipment connection systems in harsh environments. It provides effective protection in harsh environments such as sand, rain, cold, snow, oil, etc.
