Heavy Duty Connector 4 Pin 250VAC / 10A
Brief
Description
4 pin heavy duty connector with working voltage 250VAC and current 10A.
Specification:
| Basic | Model | SCJ009623 | SOCOJE-HDCN-HA-004-2 | SOCOJE-HDCN-HA-004-3 | SOCOJE-HDCN-HA-004-4 | SOCOJE-HDCN-HA-004-5 |
| Shipping weight | 1kg | |||||
| Standard | DIN EN 60 664-1, DIN EN 61 984 | |||||
| Number of pins | 4 pin + PE | |||||
| Certificate | CCC, CE, ROHS, RU, CSA, TUV | |||||
| Inserts | Item | HA-004-M | HA-004-M | HA-004-M | HA-004-M | HA-004-M |
| Working current | 10A | |||||
| Working voltage | 250V | |||||
| Rated pulse voltage urms | 4kV | |||||
| Pollution degree | 3 (C) | |||||
| Insulation resistance | ≥1010Ω | |||||
| Material | Polycarbonate | |||||
| Working temperature Range | -40℃~+125℃ (-40℉~+257℉) | |||||
| Flammability according to UL94 | V0 | |||||
| Working voltage according to UL / CSA | 600V | |||||
| Insertion / withdrawal cycles | ≥500 | |||||
| Contacts | Item | HA-004-F | HA-004-F | HA-004-F | HA-004-F | HA-004-F |
| Material | Copper alloy | |||||
| Surface treatment | Silver/ Gold plating | |||||
| Contact resistance | ≤1mΩ | |||||
| Wiring form | Screw connection | |||||
| Wire specification | 0.75-1.5mm2 AWG 18-16 | |||||
| Tightening torque | 0.25N·m | |||||
| Shell | Hood item | H3A-MTS-M20 | H3A-MTG-M20 | H3A-MTS-M20 | H3A-MTG-M20 | H3A-MTG-M20 |
| Hood thread | M20 | M20 | M20 | M20 | M20 | |
| Housing item | H3A-MAG | H3A-MAG | H3A-MAGSV-M20 | H3A-MAGSV-M20 | H3A-MTGVB-M20 | |
| Housing thread | - | - | M20 | M20 | M20 | |
| Material | Cast zinc | |||||
| Surface treatment | Powder-coated, gray | |||||
| Interlocking element | Interlocking method: metal elastic pressing, material: stainless steel/galvanized iron | |||||
| Sealing element | NBR | |||||
| Applicable temperature range | -40℃~+125℃ (-40℉~+257℉) | |||||
| Flammability class | V0 | |||||
| Protection class | IP65 | |||||

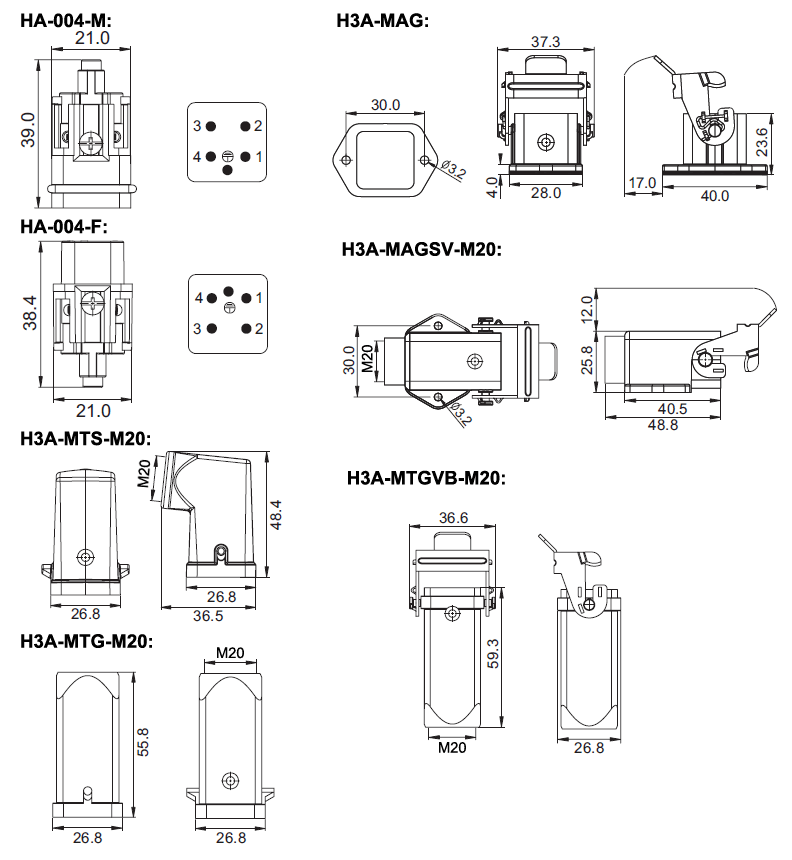

Dimension (unit: mm):
Tips: Heavy duty connectors apply in the automotive assembly line
The automobile assembly line is an operation line for automotive production. Its operation line processes include welding, stamping, painting, powertrain and so on. It can improve the automation level of car manufacturers.
At present, almost all international assembly lines encounter problems such as security protection issues, maintenance issues, and model selection issues. Based on this, heavy-duty connectors perfectly solve such problems. At present, in terms of security protection, the connector protection class can reach IP65 / IP68, etc., which effectively prevents dust and pollution. In terms of maintenance, the heavy duty connector supports plug-and-play for maintenance, supports the production and assembly of components in advance and assembles outer and inner wires for convenient separately. Fast installation and maintenance will reduce installation errors. Not only that, for the cable size and length of the automotive wiring harness, but the connectors can also be pre-customized to meet customers' high-efficiency needs.
Heavy duty connectors are mainly used in the following devices of the automobile assembly lines: automobile body forming systems, welding robots, control cabinets, intelligent control systems, assembly line conveying systems, hoists, I-beam blank workshops, transmission beam adjustment systems, metal beams Combination system, etc.
