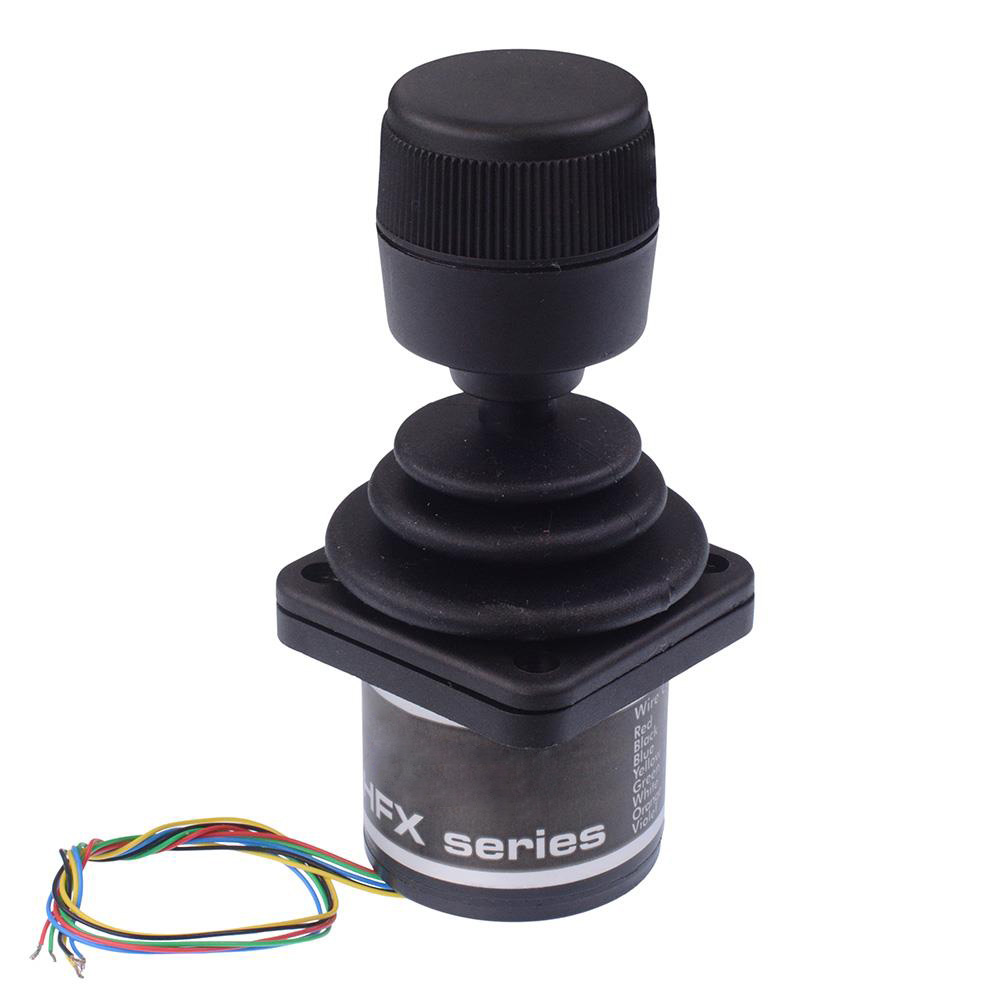

HFX33R10 3 Axis Fingertip Hall Effect Joystick

The HFX33R10 joystick is designed for precision finger operated applications requiring proportional control and long trouble-free life. Featuring 3 axis and non-contacting hall effect technology for three million lifecycle performance. Featuring CH Products core hall effect technology and patented joystick mechanism, the HFX series has been field tested and proven for more than a dozen years. The HFX series joysticks compact size, low operational force and high reliability make it ideally suited for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.

3 axis

IP68 sealing above panel

Rated for 3 million lifecycles

Round limiter plate

Drop-in mounting

Supply voltage: 5VDC

Output: 0V to 5V (Rail to Rail)

Panel cut-out: 41.66mm

Mounting hole pitch: 35.56 x 35.56mm

Dimensions: 48.51 x 48.51 x 108.46mm (length x width x height)
