High Quality Pulse Flow Sensors Hall Effect Water Flow Meter 3-24V 0.3-3.0L/min For Water Dispenser Water Flow Sensor

1. Water inlet and outlet in a zigzag structure

2. Quick insertion self-locking type

3. Can be used as a flow meter or water flow switch

4.Hall working principle, pulse signal output

5. Fast and safe, easy to install

Buy Now

Technical Parameters

Use

Water flow detection flow meter

Other attributes

Mounting Type

Any direction

Description

Water flow detection

Model Number

SCJ2300111J

Type

Liquid Flow Sensor

Series

flow sensor

Place of Origin

Guangdong, China

Brand Name

SCJ

Theory

Hall principle

Output

Pulse signal output

Description

Water flow sensor

Using objects

Water, etc

Low temperature version

≤60℃

High temperature version

≤115℃

Optional voltage range

3V-24V

Rated voltage/current

DC3V,≤10μA or DC5V,≤10mA

insulation resistance

>100MΩ

electric strength

AC500V,50Hz

Flow range

0.3-3L/min

pressure resistant performance

≤1.2 Mpa

Installation method

Using media	Water; Low temperature version ≤ 60 ℃; High temperature version ≤ 115 ℃
Optional voltage range	3V:1.8-5.5V	5V:4.5-18V	24V:4.5-26.4V
Rated voltage/current	DC3V,≤10μA	DC5V,≤10mA	DC5V,≤10mA
Output voltage Pulse duty cycle: 50%	When the rated voltage is less than DC5V: high-level Vcc-0.2V or above, low-level 0.2V or below When the rated voltage is ≥ DC5V: high-level Vcc-0.5V or above, low-level 0.5V or below
insulation resistance	>100 MΩ
Electrical strength	AC500V,50Hz
Flow range	0.3-3.0L/min
Voltage resistance performance	≤1.2 Mpa

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X5 cm

Single gross weight:

0.500 kg

Description

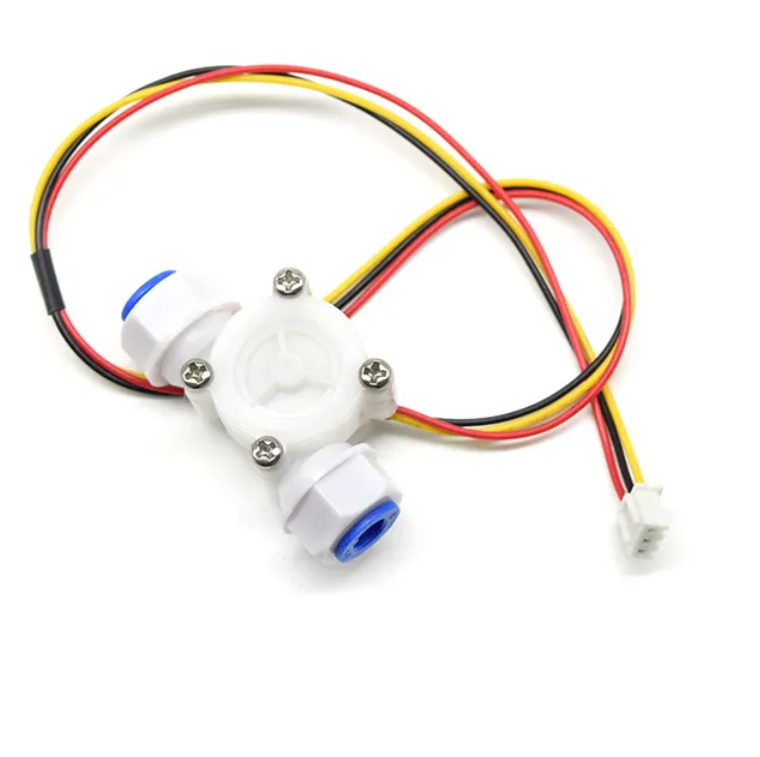

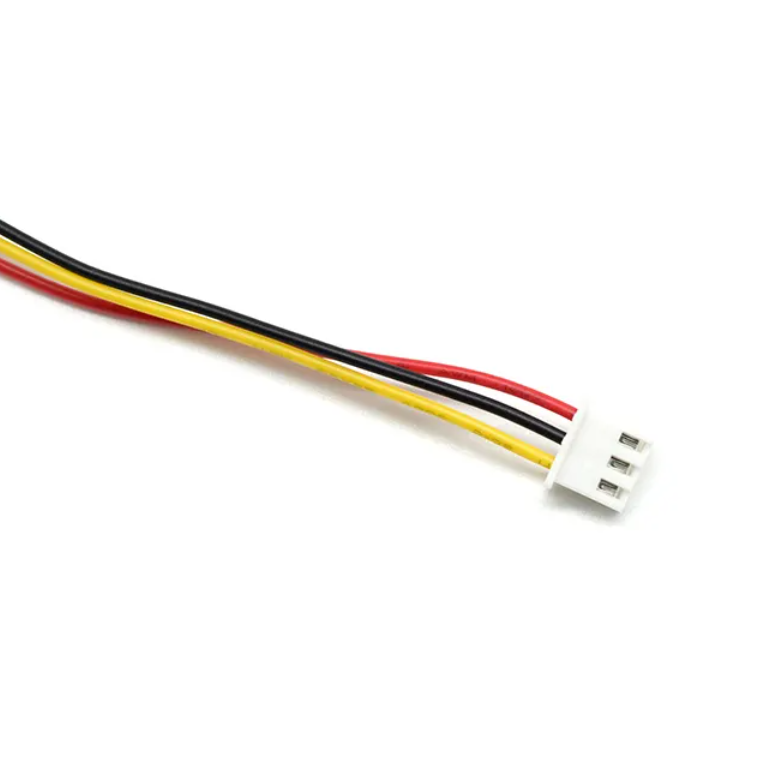

Internal claw type water flow sensor, quick insertion self-locking type, straight in and out water, Hall working principle, pulse signal output, can be used as a water flow switch, and can also be used to measure flow. The material is food grade and can be used in food and medical equipment. Three wire connection: red represents the positive pole, black represents the negative pole, and yellow represents the pulse signal; Can be used for filter managers, direct drinking machines, water purifiers, coffee machines, water dispensers, and instrument equipment. The length of the connecting wire and the type of connecting terminal can be set according to customer requirements.
