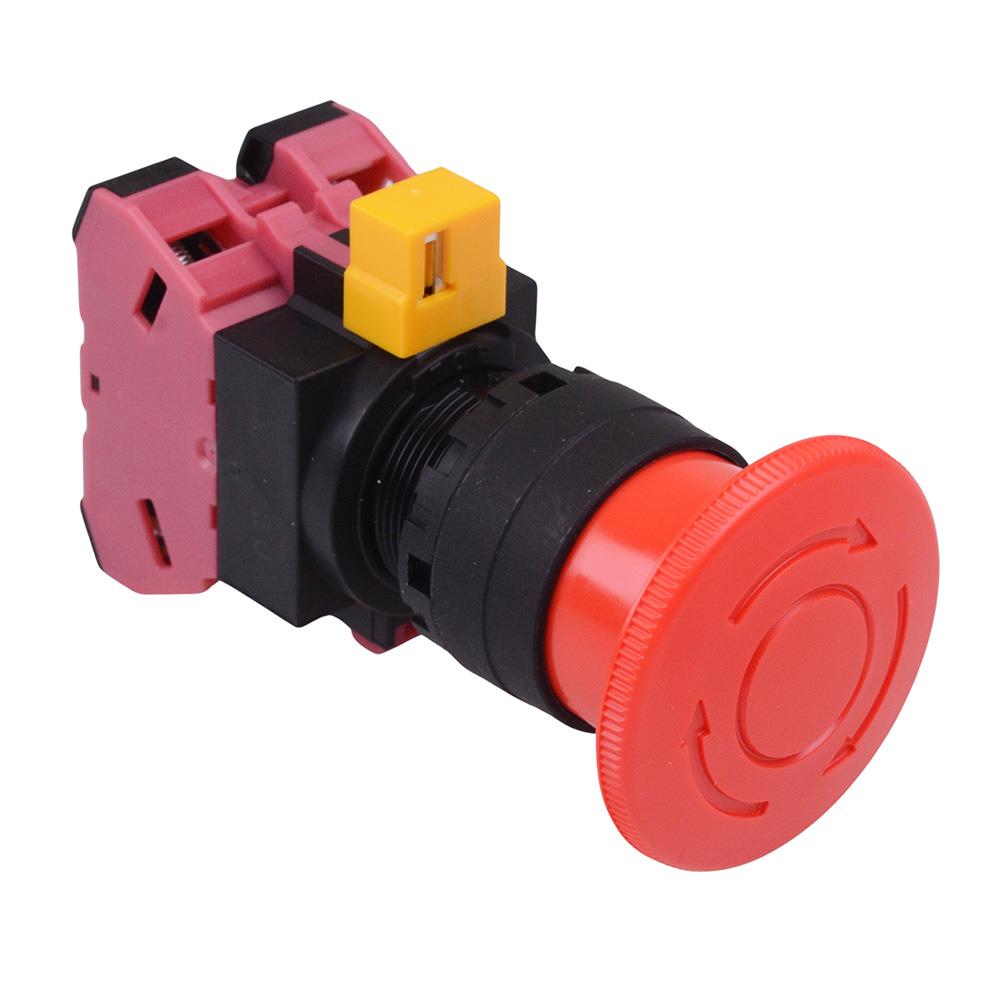

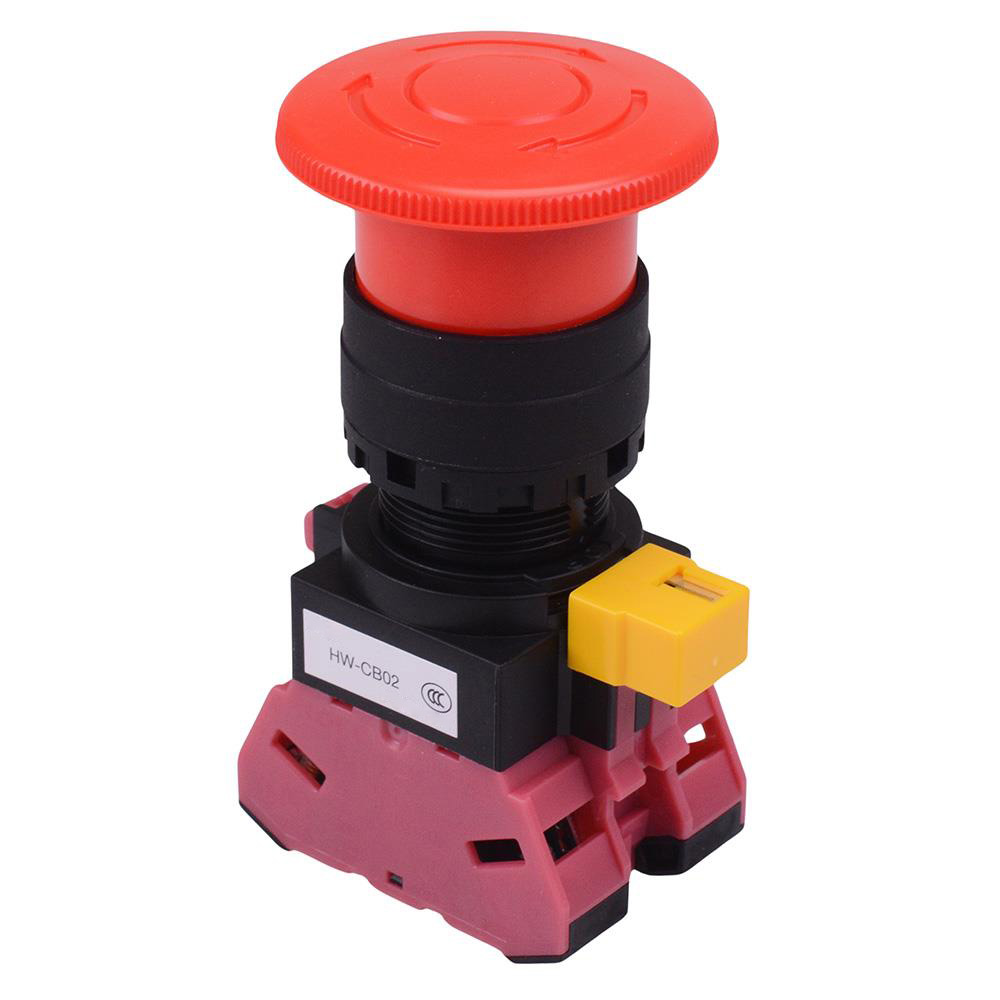

HW1B-V402R 22mm Emergency Stop Switch 40mm Mushroom 2NC

Buy Now

Specifications

Attributes List
Actuation	Twist Release
MOQ	1
Colour	Red
Contact Configuration	2NC
Head Type	Mushroom
Contact Material	Silver
Current Rating	10A
Illuminated	No
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +50°C
Panel Cut Out	22.3mm
Product Series	HW
Terminal Type	Screw
Voltage Rating	600V

Description

The HW1B-V402R is a 22mm E-stop switch by socoje, featuring a tamperproof construction and compliant with SEMI S2 standards. The switch features a 40mm mushroom head and 2NC contacts with screw terminals. The HW series is CE, UL, CSA, CCC, and TUV approved, making these switches suitable for use in almost any part of the world.

Contacts: 2NC

Rated current: 10A

Rated insulation voltage: 600V

Panel cut-out: 22.3mm

Panel thickness: 0.8-6mm

Panel depth: 23.9mm

Head diameter: 40mm

Screw terminals

CE mark, UL, CSA, CCC (Chinese), and TUV approvals
