- Stock: In Stock
- Model: SCJ006518
- SKU: SCJ006518
Ask a Question About This Product
- Description
About this product
Work Table Area: 28.4" x 49"
X-Axis Travel: 610mm (24")
Y-Axis Travel: 915mm (36")
Z-Axis Travel: 135mm (5.31")
Gantry Clearance: 8.8 inches
Product Description
Product Description
Our i2R CNC machines combine high quality components with precise engineering in order to provide you with an extremely capable power house, entry-level, CNC system.
The black, i2R CNC-UCCNC line is configured to work with the innovative UCCNC technology, allowing for a PC based control system. These machines are available in three sizes. Each one is engineered for precision with prismatic linear guides, a fully recirculating ball screw drive system, and an aluminum T-slot table. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.
If you're looking into buying your first CNC or looking to upgrade, the i2R lineup has what you need. Put your mind at ease knowing that every i2R and axiom machine is backed by full customer support and warranty. Every CNC purchased is provided with a digital download link via Google Drive with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.
The Video section also contains some setup tutorials for your Machine and some tips and tricks for UCCNC
Further enhance your learning by signing up for our i2R CNC Hands on Training Workshop.
Every order includes an air cooled spindle, automatic touch off probe for the z-axis, integrated MDF spoil board UCCNC software. PC required. Stand sold separately.
These machines ship directly to your shop for $199. (Residential & lift-gate delivery services included!)
| X axis travel | 610mm (24") |
| Y axis travel | i2R-4 = 610mm (24") i2R-6 = 915mm (36") i2R-8 = 1220mm (48") |
| Z axis travel | 135mm (5.31") |
| Table work area | i2R-4 = 28.4" x 37" i2R-6 = 28.4" x 49" i2R-8 = 28.4" x 61" |
| Electro Spindle | 800W (1HP) ER 11 |
| Spindle speed | 0-24,000 RPM |
| Rapid feed rate | 150 IPM |
| Precision Linear Guideway | X/Y/Z |
| Precision BallScrew | X/Y/Z |
| BallScrew Diameter | 15mm |
| Positional Accuracy | +/- 0.15mm (.00589") |
| Power requirements | 115V, 50~60Hz, 13A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum billet machined |
| Gantry Clearance | 8.8 inches |
| Machine Base | All Welded Steel Frame |

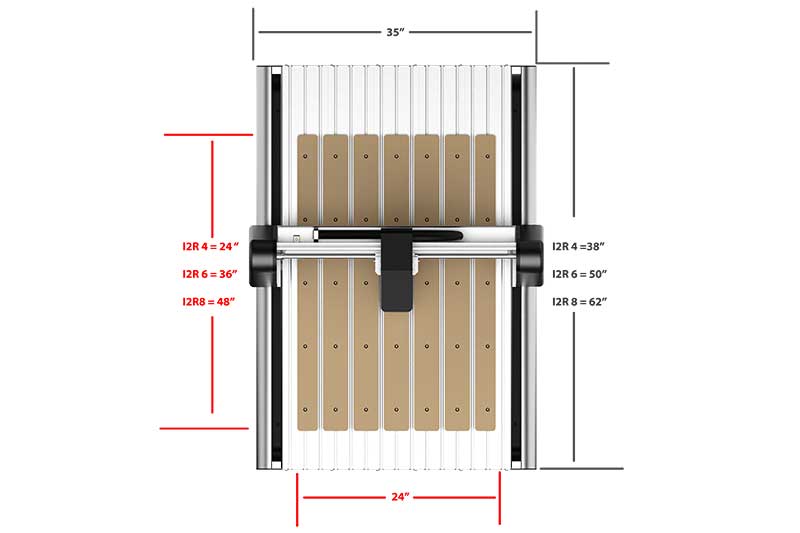

| Machine Dimensions | i2R-4 = 38"L x 35"W x 28"H i2R-6 = 50"L x 35"W x 28"H i2R-8 = 62"L x 35"W x 28"H |
| Shipping Dimensions | i2R-4 = 40" x 37" x 15" i2R-6 = 52" x 37" x 15" i2R-8 = 64" x 37" x 15" |
| Machine Weight | i2R-4 = 176 lbs i2R-6 = 209 lbs i2R-8 = 242 lbs |
| Tool Touch Off | Included |
| Controller | UCCNC PC Control Software |
| Product Manual |
I2R ADVANTAGES
UCCNC Software PC Controlled
UCCNC is a full G-code CNC controller which allows the machine to be used with CAM packages such as Vectric. It allows you to control the i2R CNC router straight from your computer. From there you can start machining your project.
Precision Ball Screws
Motion on every axis of every i2R machine is controlled by high-precision ball screws. These ball screws utilize recirculating ball bearings to provide close tolerance and offer unmatched accuracy. Their ability to create low internal friction, while withstanding high thrust loads at high rates of speed, is paramount to the accuracy of each i2R CNC machine.
Cast Gantry Support
Heavy components travelling at a high rate of speed generate high forces of inertia. The horizontal gantry support (located beneath the table), and the vertical gantry legs take the brunt of that force. Each gravity cast aluminium component is powder coated and engineered to be completely overqualified for their job.
Z-Axis Automatic Touch Off Tool
Every i2R CNC machine comes standard with an automatic touch off tool for accurately determining your Z zero. Simply slide the tool touch-off device beneath the bit, initiate the ‘Auto Touch-Off’ command on your UCCNC interface, and the bit length will automatically be determined and stored in the UCCNC software.
High Rigidity Aluminum Frame
Our welded, structural aluminum frame is rigid, and accurate. It supports the weight of your i2R CNC machine with ease. The frame is build around a solid base and offers mounting flanges in each corner to secure your machine to a optional stand, or your work surface.
Interlocking Aluminum Table
This is a seriously strong table. The massive 30mm thick extruded aluminium table provides a strong, flat surface to support your material. Integrated T-slots allow placement of hold-down clamps in any location, and a sacrificial MDF spoil board ensures that your table will always remain flat and damage free.
Air Cooled Spindle
Every i2R CNC machine comes with a standard an air cooled spindle. At 1 HP, with max speed of 24,0000 RPM, it is silent yet powerful. spindle capable of performing any job.
High Torque Stepper Motors
Each axis is controlled by a NEMA 23 equivalent high-torque stepper motor. Each fast, device is rated for high duty cycles, and will provide thousands of hours of trouble-free precision.
Precision Linear Guide Rails
Our linear guide rails utilize recirculating bearings between a prismatic rail and a bearing block. The coefficient of friction on our linear guides is only a small fraction of what is created by traditional round guides, and are able to take loads in all directions. This is how our CNC machines achieve high precision and greatly enhanced moving accuracy.
