Red Square Momentary NO 12mm Push Button Switch SPST IP67 ICC3SAD6
from
$10.60
Ex Tax: $10.60
- Stock: In Stock
- Model: SCJ014267
- SKU: SCJ014267
Products Sold: 0
Product Views: 118
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
MOQ | 1 |
Colour | Red |
Contact Configuration | SPST |
Contact Material | Gold Plated Silver |
Contact Rating | 5A 28VDC |
Current Rating | 5A |
Illuminated | No |
Material | Zinc Diecast |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Protection Level | IP67 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 13.6mm |
Panel Thickness | 1.5-4mm |
Product Series | IC |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 28VDC |
- Description

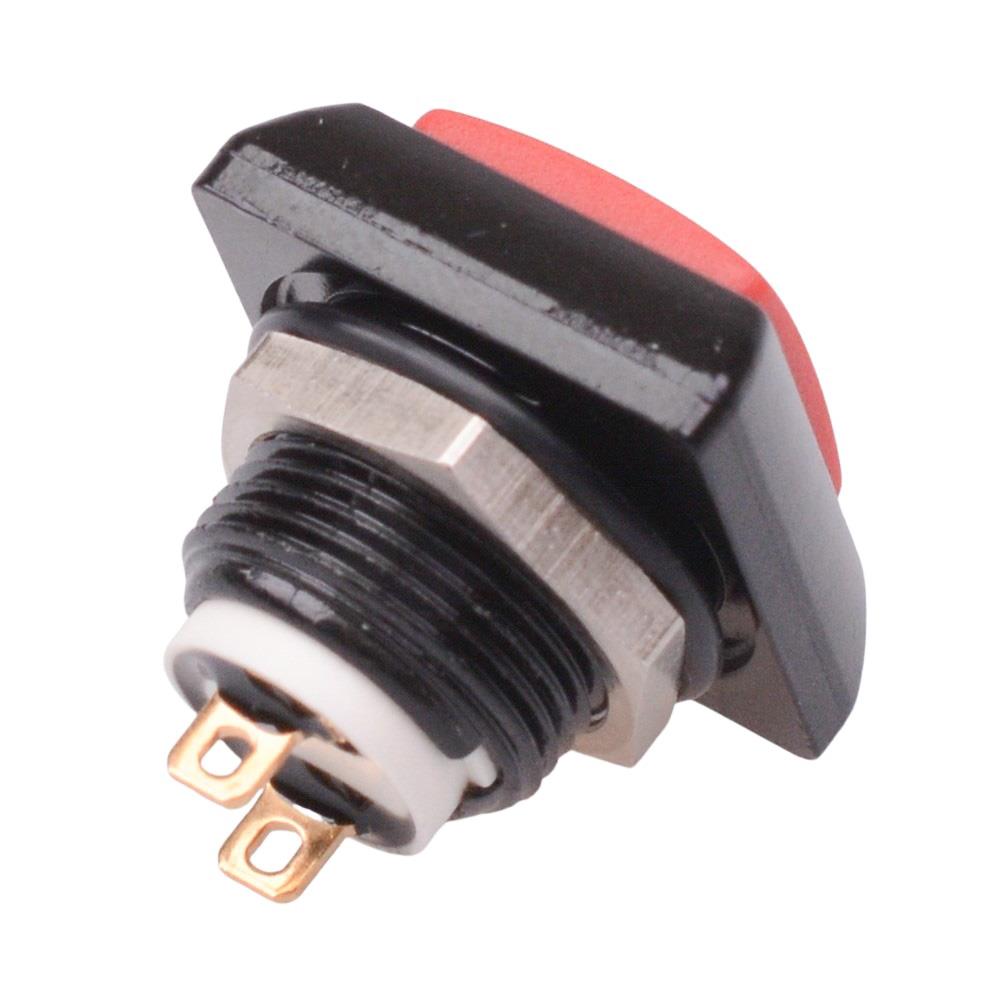

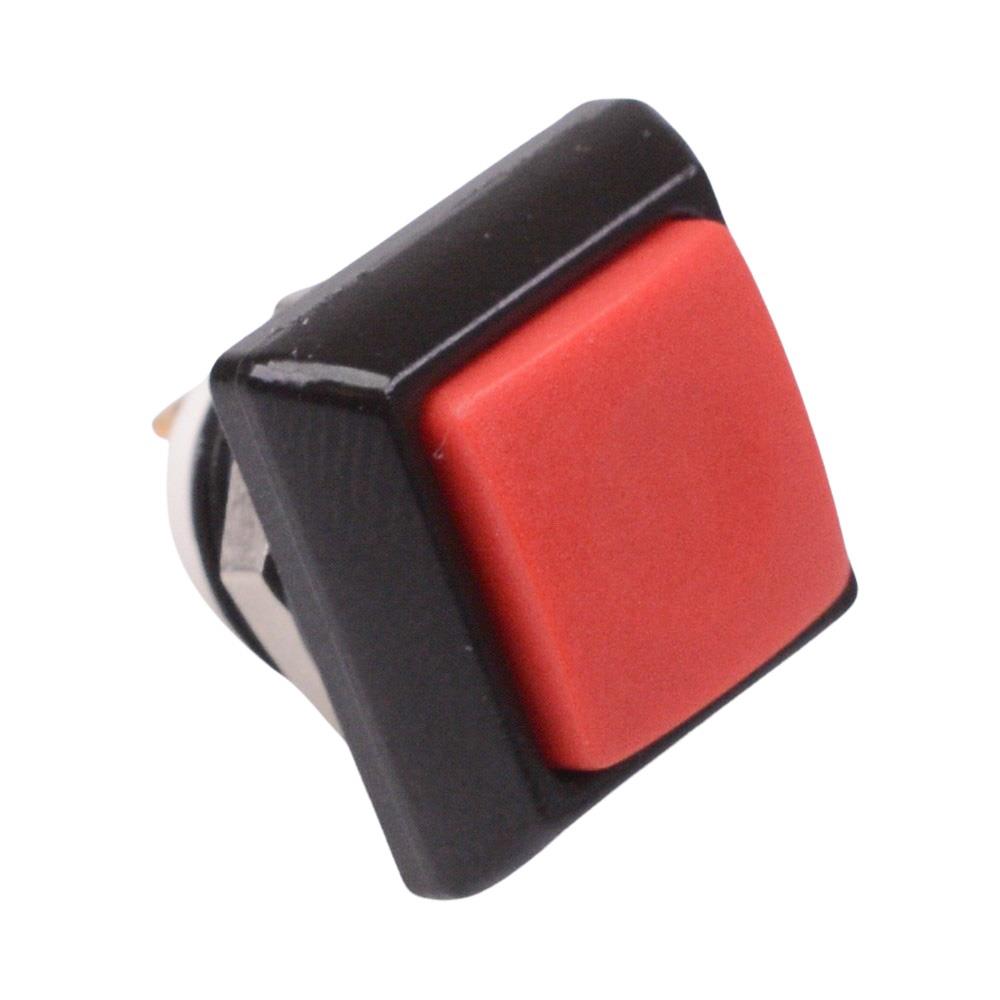

Red Square Momentary NO 12mm Push Button Switch SPST IP67 ICC3SAD6
The ICC3SAD6 is a red momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm chrome bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminas Gold plated silver contacts Rating: 5A 28VDC Panel thickness: 1.5-4mm Dimensions: 20 x 17.5 x 17.5mm (height x width x length)
