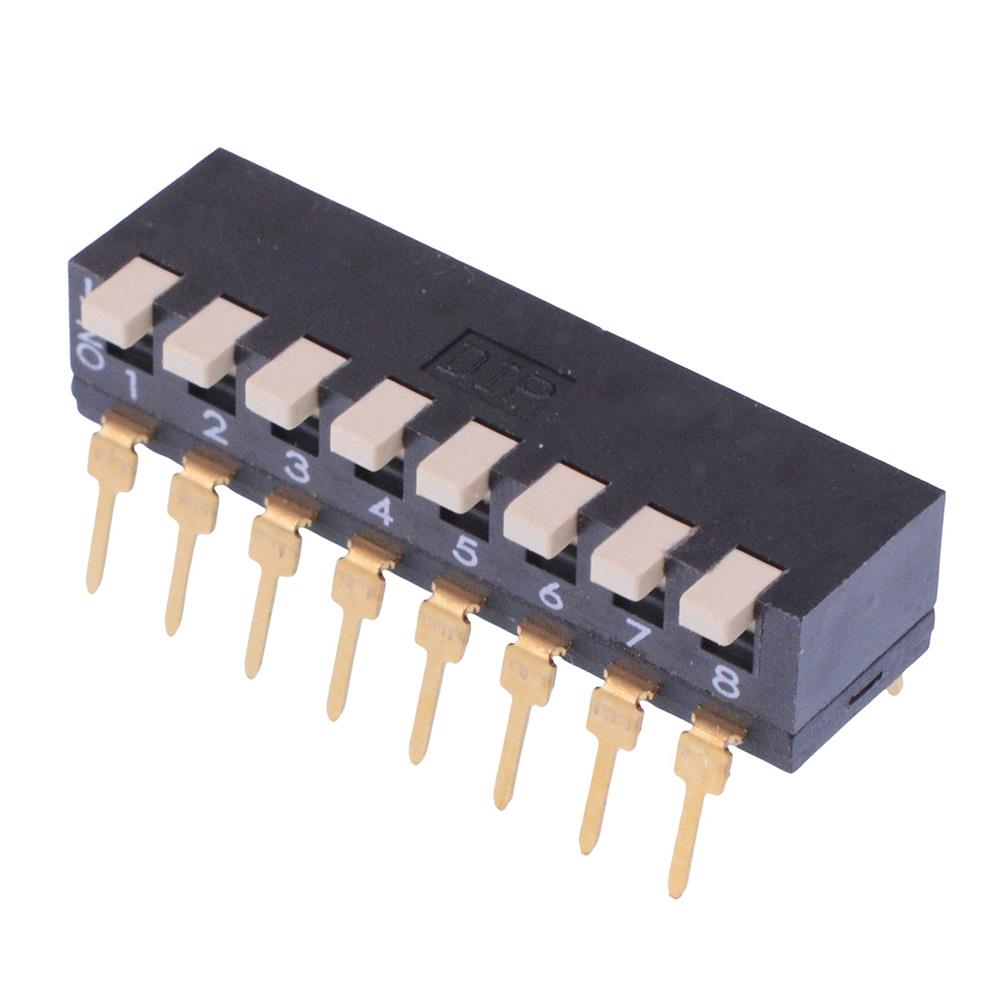

IKP0800101 8-Way 2.54mm Piano PCB DIP Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	Nylon
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	8
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Product Series	IKP
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The IKP0800101 is a 8 way piano style DIP switch featuring SPST contacts and gold plated terminals. The switch features 5mm height from the PCB and 25mA 24VDC switch rating, suitable for through hole PCB applications.

8 ways

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Through hole gold plated terminals

2.54mm pitch

Tape seal
