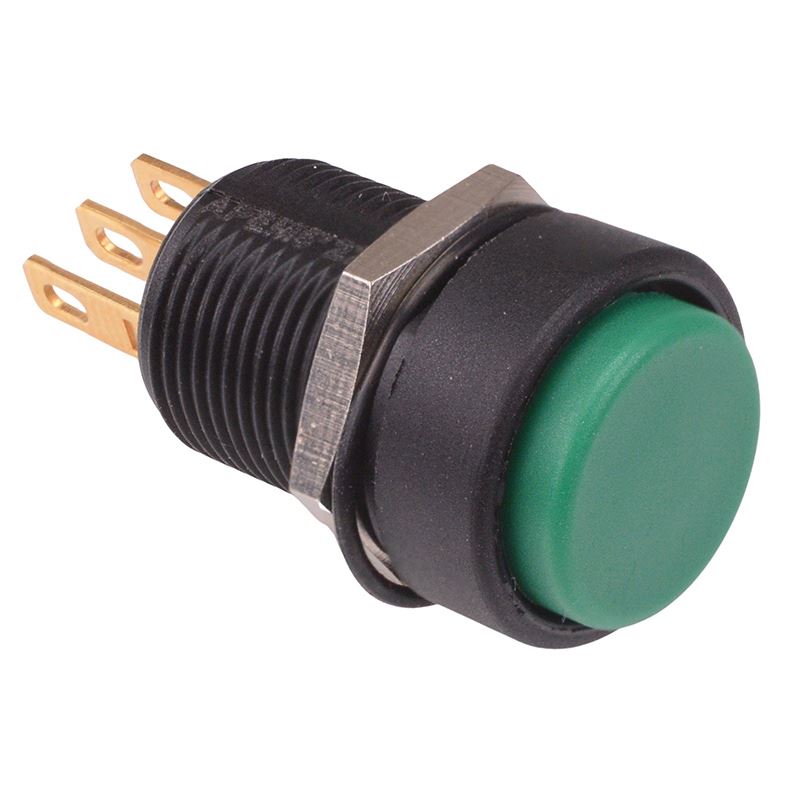

IMP7Z432234UL Green Momentary 12mm Push Button Switch SPDT IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Green
Contact Configuration	SPDT
Contact Rating	3A 28VDC
Current Rating	3A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-10mm
Product Series	IM
Terminal Type	Quick Connect
Voltage Rating	28VDC

Description

The IMP7Z432234UL is a green momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features solder lug terminals and SPDT contacts, suitable for a wide range of applications.

Momentary operation

Snap action: tactile feedback with audible click

SPDT NO/NC contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Quick connect terminals

Rating: 3A 28VDC

Panel thickness: 1.5-10mm

Back of panel space requirement: 20mm minimum

Dimensions: 25.1 x 17.5mm (length x diameter)
