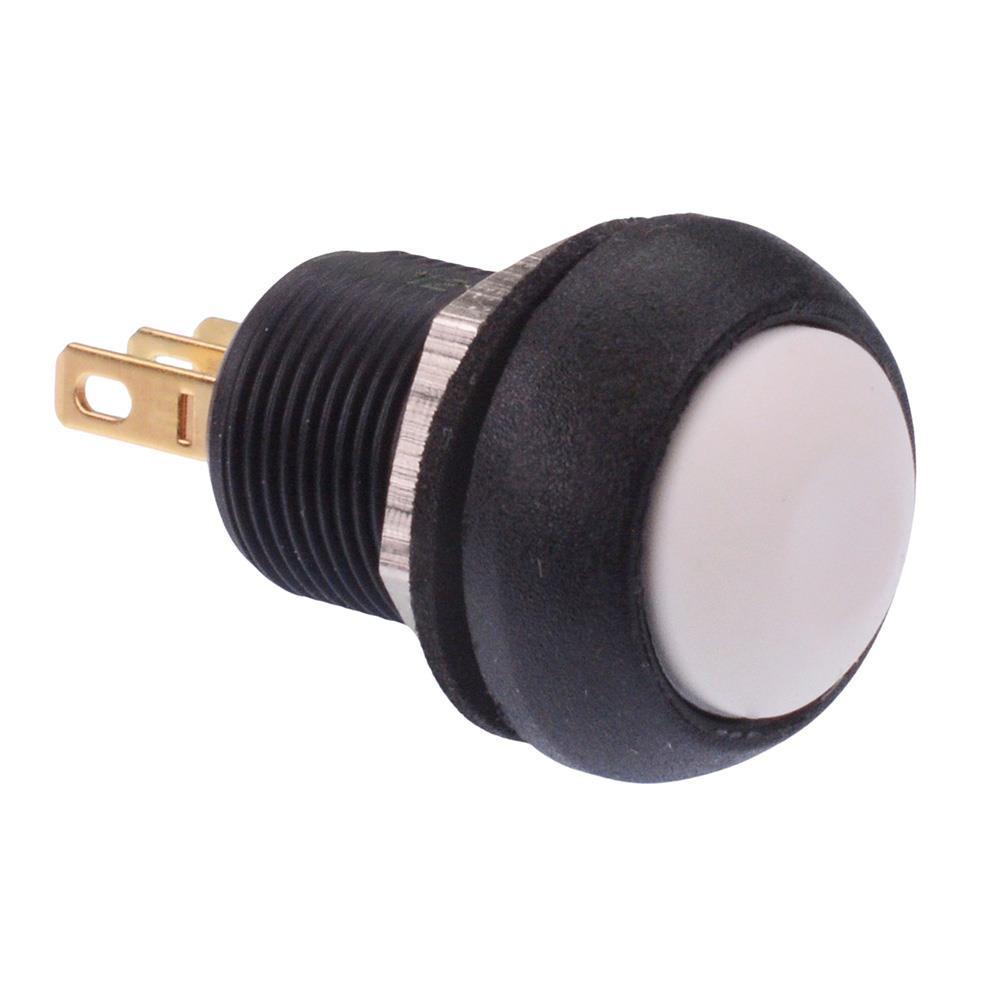

IMR7Z472 White Momentary 12mm Push Button Switch SPDT IP67

IMR7Z472 White Momentary 12mm Push Button Switch SPDT IP67
IMR7Z472 White Momentary 12mm Push Button Switch SPDT IP67
0 reviews - Write a review
from
$8.05
Ex Tax: $8.05
10 or more $7.16
25 or more $6.76
50 or more $6.36
100 or more $6.03
  • Stock: In Stock
  • Model: SCJ014205
  • SKU: SCJ014205
Products Sold: 0
Product Views: 29
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourWhite
Contact ConfigurationSPDT
Contact MaterialGold Plated Silver
Contact Rating3A 28VDC
Current Rating3A
IlluminatedNo
Electrical Life25,000 Cycles
Illumination ColourNon Illuminated
MaterialPolyamide
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-10.0mm
Product SeriesIM
Switch OperationOn-(On)
Terminal TypeQuick Connect
Voltage Rating28VDC
  • Description
The IMR7Z472 is a white momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications including automotive.

  • Momentary operation
  • Snap action: tactile feedback with audible click
  • SPDT NO/NC contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Quick connect terminals
  • Rating: 3A 28VDC
  • Panel thickness: 1.5-10mm
  • Back of panel space requirement: 20mm minimum
  • Dimensions: 25.1 x 17.5mm (length x diameter)
