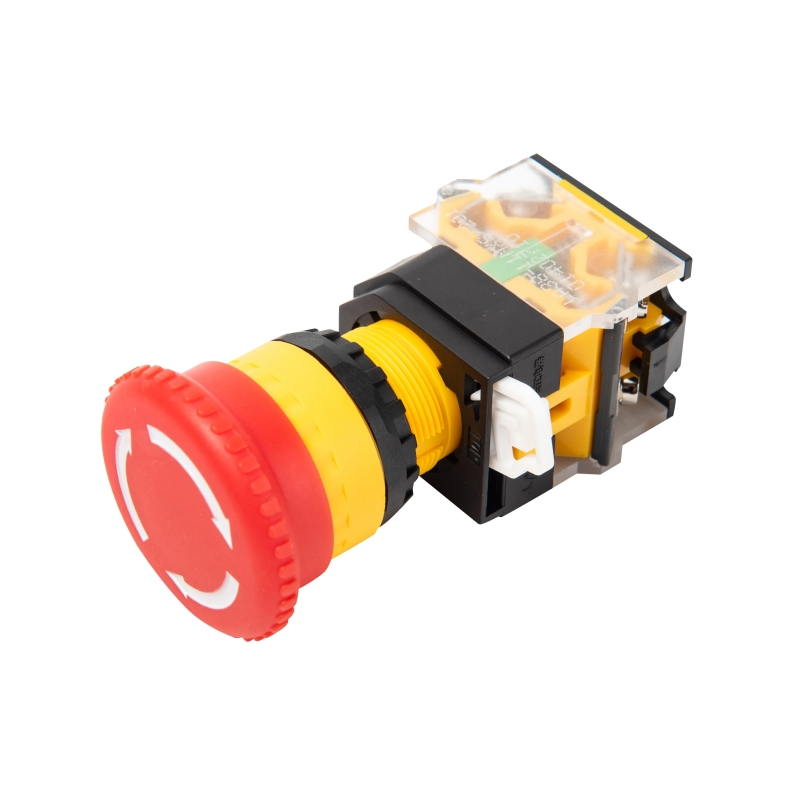

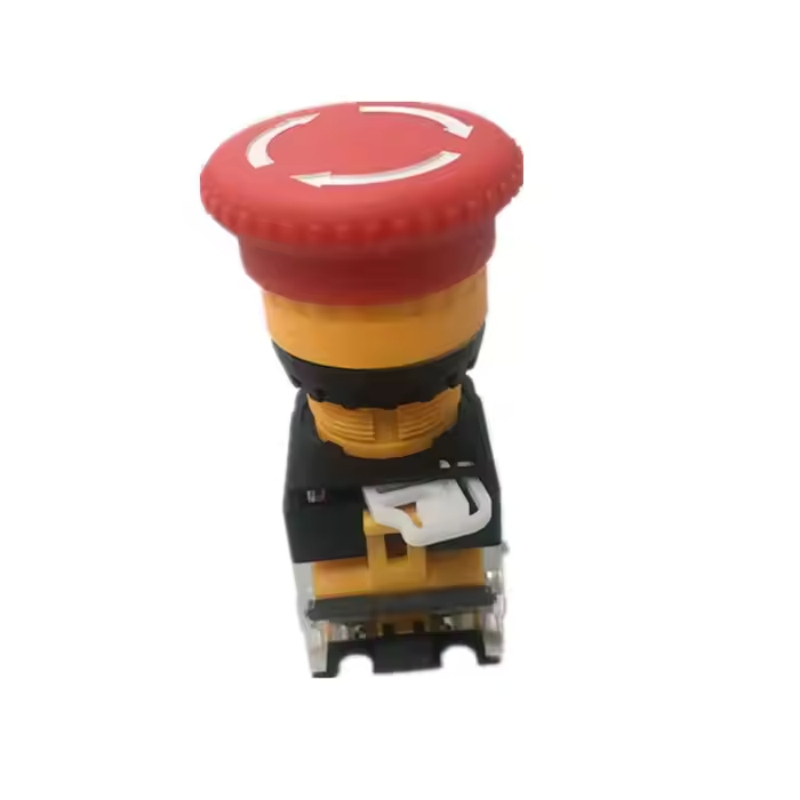

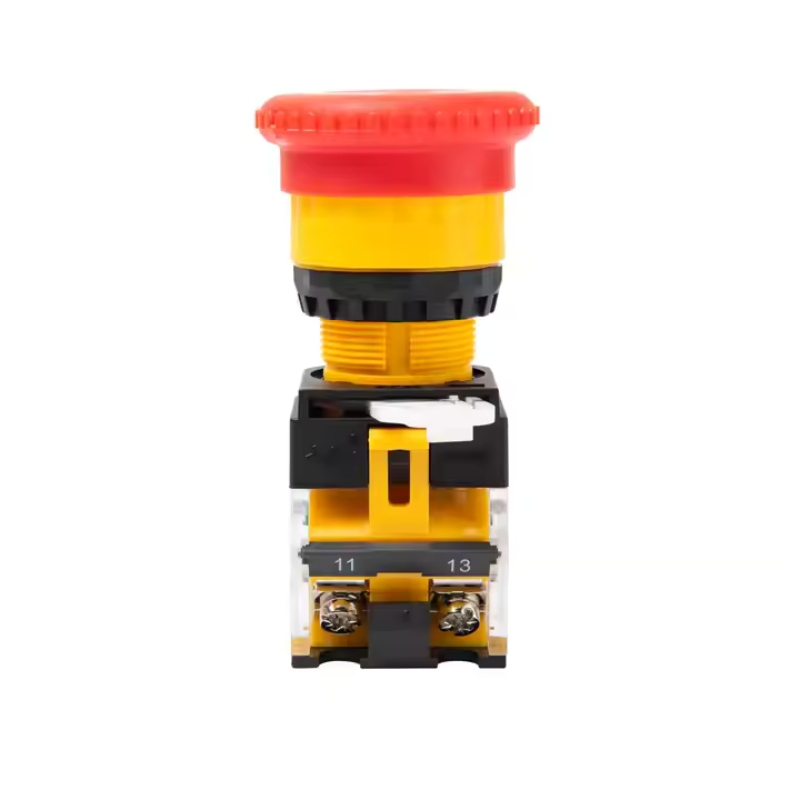

Industrial Push Button Switches Waterproof IP67 Latching Switch 5V/12V Momentary Electronic 22mm Mushroom Head Design

0 reviews - Write a review

$2.70

Ex Tax: $2.70

500 or more $2.30

Stock: In Stock
Model: SCJ2630032C
SKU: SCJ2630032C

Products Sold: 0

Product Views: 3

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

Operation Condition	Altitude height	Environment temperature	Storage temperature	Relative humidity	Pollution class	Install type
	≤2000m	-25~+55℃	-40~+70℃	45-85%RH	3	Ⅲ
Main technical index	Common parameter	Rated insulated Voltage (Ui)			500V
		Rated impulse withstand voltage (Uimp)			3000V,AC50HZ
		Insulated resistance			≥50MΩ
		Front protect class			IP40 Customizable IP65
		Withstand Voltage			1.89KV/5S
	Button parameter	Stipulated hot current Ith			10A
		Contact resistance			≤50mΩ
		Rated working Voltage /Current			AC-15	DC-13
					220V/5.5A 380V/4A	220V/0.45A 110V/1A
		Electrical life			500000
		Mechanical life			1000000
	Lamps parameter	Rated working Voltage/Current			none
		Life of signal lamps			none
	Other parameter	Buzzer volume/frequency			none
		Flash frequency			none

Add to Cart

Buy Now

Technical Parameters

Mounting hole

22mm or 25.5mm(match with conversion ring)

Material

flame-retardant plastic

Operation type

Press locking, rotating reset

Contact configuration

1NO/1NC/2NO/2NC/1NO1NC...

Function

Electronic Control System

Application

Industrial Control

Head shape

Mushroom Head

Button color

Red

Product type

12 Volt Push Button Switch

Description

Industrial Push Button Switches Waterproof IP67 Latching Switch 5V/12V Momentary Electronic 22mm Mushroom Head Design

It is applicable in electromagnetic starter, contactor, relay and other electric circuits with AC 50Hz (or 60 Hz), voltage 380 V and below, DC voltage 220V and below, DC voltage 220V and below as remote control; among them, the button with lamp (LED lighting) is also applied to the occasions that need light signal to indicate. It has passed national CCCcertification as well as EC CE certification and marine product type approval of CCS.
