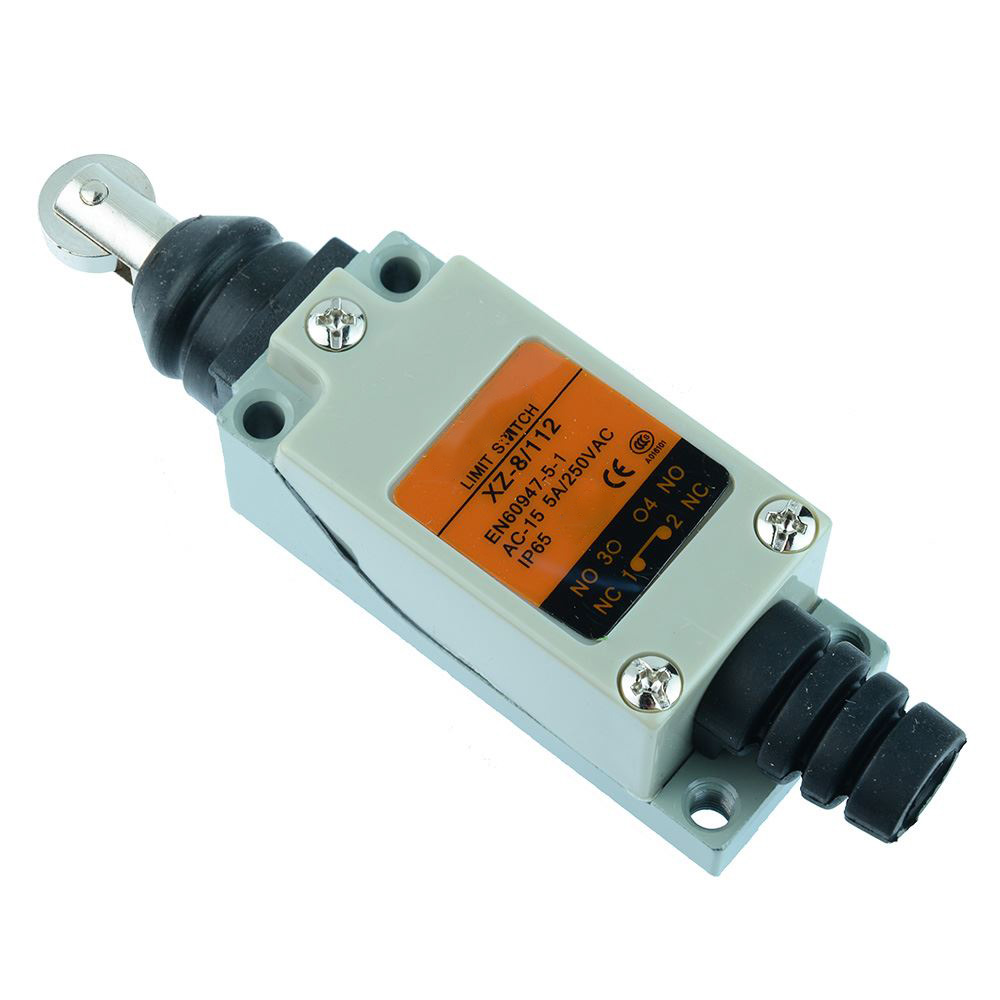

IP65 Roller Actuator Limit Switch Zinc Alloy 2NO/2NC 250V 5A

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Electrical Life	100,000 Cycles
Number of Positions	2
Protection Level	IP65
Operating Force	1100g Max
Operating Temperature	-25°C to +60°C
Terminal Type	Screw
Voltage Rating	250VAC

Description

Compact limit switch with NO / NC contacts housed in a hard wearing zinc alloy and plastic case. The switches are water and oil resistant making them suitable for a wide range of applications including use with industrial equipment and machines.

Rating: 5A 250VAC

Roller actuator

IP65 protection rating

Enclosed screw terminals

Operating force max: 1100g
