IPC1SAD2L0Y Yellow LED Black Square Latching 12mm Push Button Switch SPST IP67
from
$15.90
Ex Tax: $15.90
- Stock: In Stock
- Model: SCJ014272
- SKU: SCJ014272
Products Sold: 0
Product Views: 19
Ask a Question About This Product
- Description

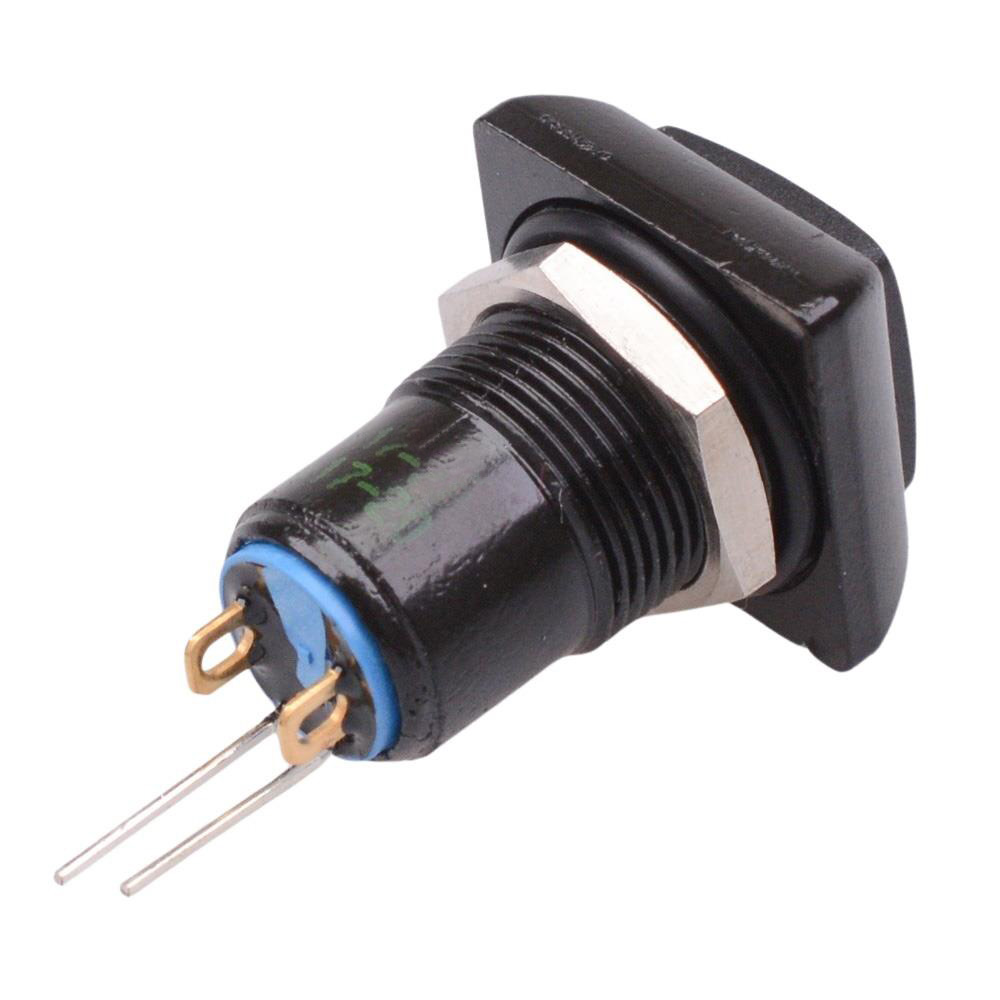

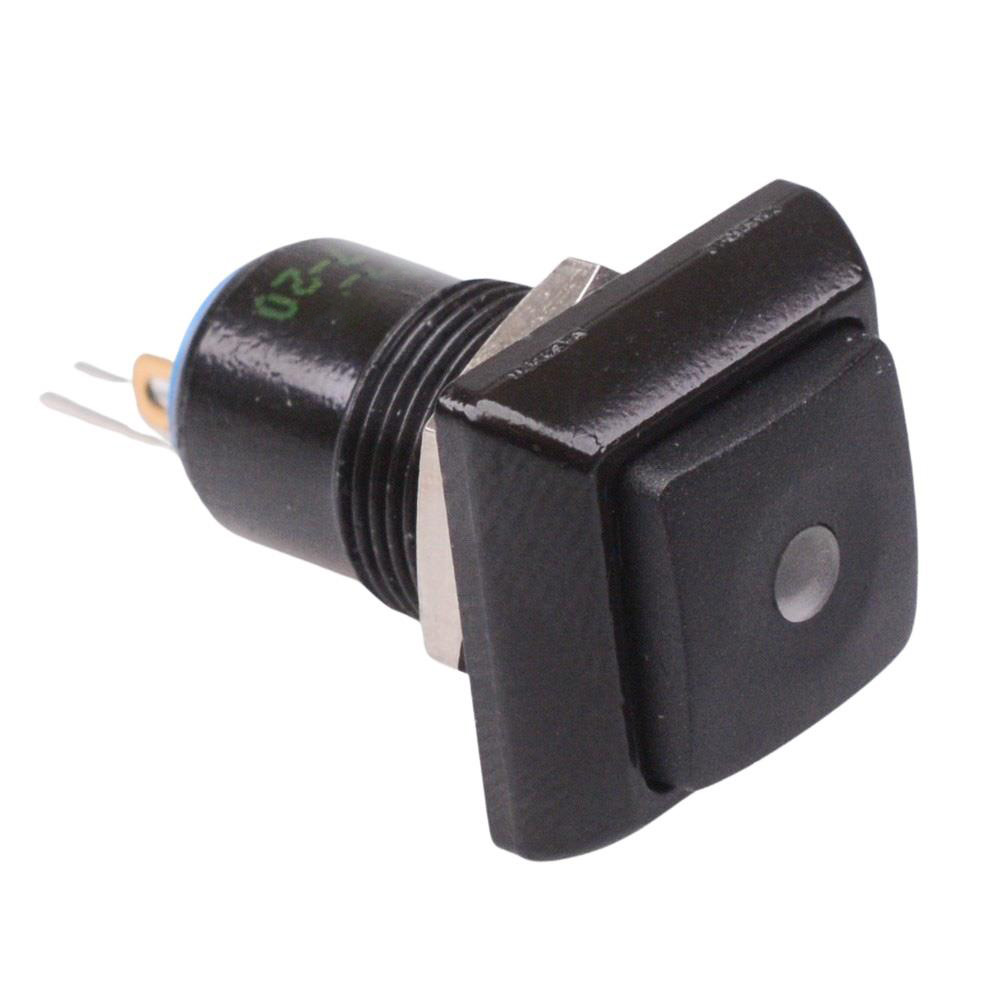

The IPC1SAD2L0Y is an illuminated black latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Black button Latching operation Yellow LED LED forward voltage: 2V LED forward current: 20mA SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts \Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC Panel thickness: 1.5-5.5mm Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
