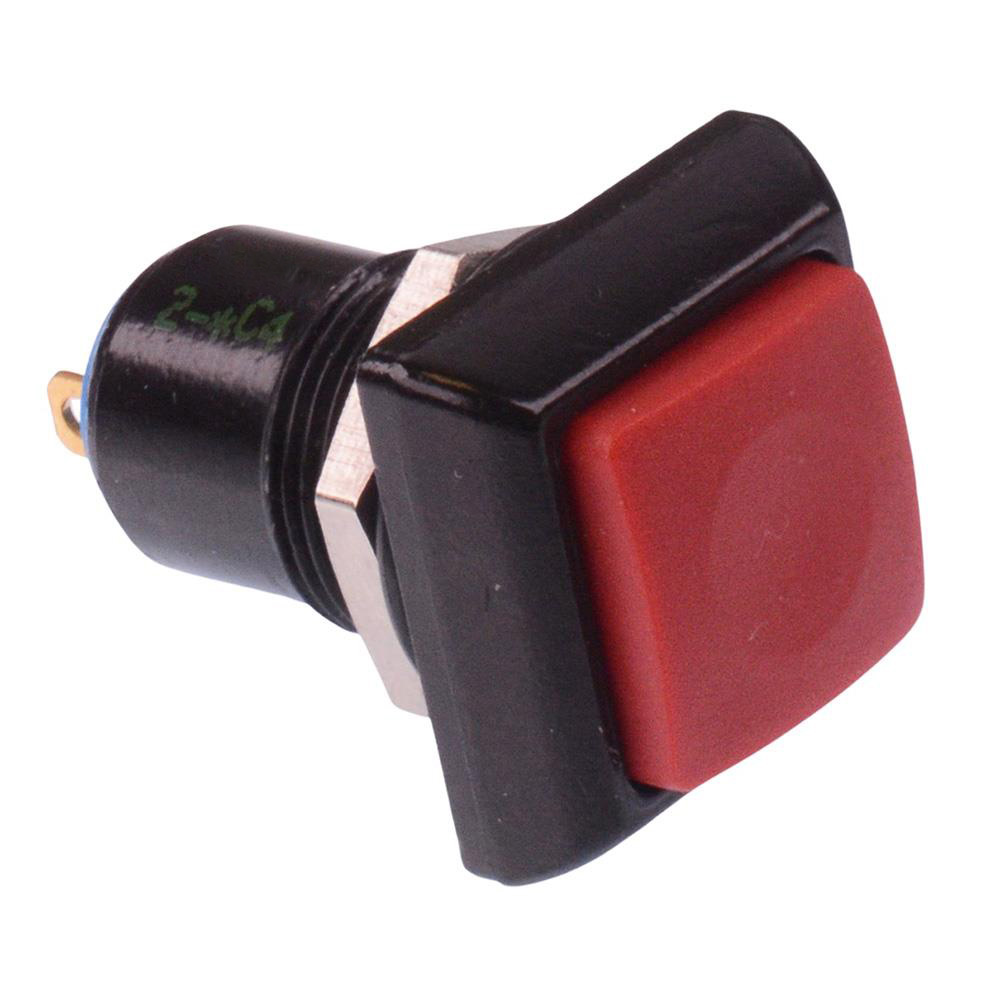

Red Square Latching 12mm Push Button Switch SPST IP67 IPC1SAD6

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	4A 12VDC, 3A 48VDC, 1A 72VDC
Current Rating	4A @ 12VDC
Illuminated	No
Illumination Colour	Non Illuminated
Material	Zinc Diecast
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-5.5mm
Product Series	IP
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	72VDC

Description

Red Square Latching 12mm Push Button Switch SPST IP67 IPC1SAD6

The IPC1SAD6 is a red latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

Latching operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC

Panel thickness: 1.5-5.5mm

Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
