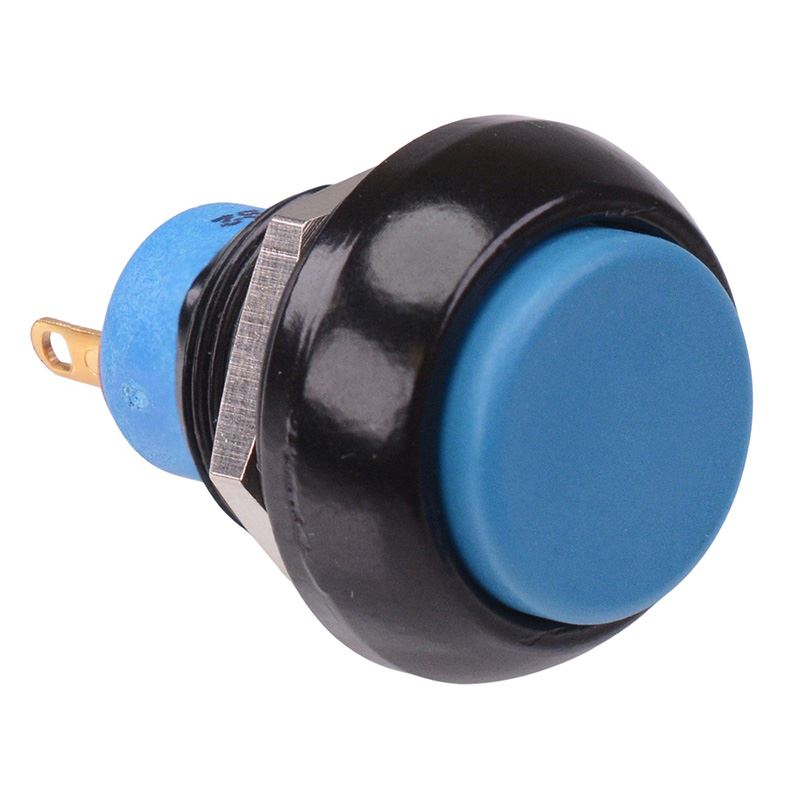

IPP3SAD1 Blue Momentary 12mm Push Button Switch Flat Actuator SPST IP67

IPP3SAD1 Blue Momentary 12mm Push Button Switch Flat Actuator SPST IP67
IPP3SAD1 Blue Momentary 12mm Push Button Switch Flat Actuator SPST IP67
0 reviews - Write a review
from
$23.34
Ex Tax: $23.34
10 or more $20.77
25 or more $19.60
50 or more $18.44
100 or more $17.50
  • Stock: In Stock
  • Model: SCJ014038
  • SKU: SCJ014038
Products Sold: 0
Product Views: 26
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourBlue
Contact ConfigurationSPST
Contact Rating0.5A 28VDC, 0.2A 48VDC
Current Rating0.5A @ 28VDC
IlluminatedNo
Illumination ColourNon Illuminated
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force4N
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-4mm
Product SeriesIP
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating48VDC
  • Description
The IPP3SAD1 is a blue momentary push button switch with a flat round actuator and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Back of panel space requirement: 17.5mm minimum
  • Dimensions: 23.4 x 17.5mm (length x diameter)
