IPP3SAD7/1 White Round Momentary NO 12mm Push Button Switch SPST IP67

IPP3SAD7/1 White Round Momentary NO 12mm Push Button Switch SPST IP67
IPP3SAD7/1 White Round Momentary NO 12mm Push Button Switch SPST IP67
0 reviews - Write a review
from
$21.18
Ex Tax: $21.18
10 or more $18.84
25 or more $17.79
50 or more $16.73
100 or more $15.87
  • Stock: In Stock
  • Model: SCJ014281
  • SKU: SCJ014281
Products Sold: 0
Product Views: 24
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourWhite
Contact ConfigurationSPST
Contact Rating0.5A 28VDC, 0.2A 48VDC
Current Rating0.5A
IlluminatedNo
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force4N
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-4mm
Product SeriesIP
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating48VDC
  • Description

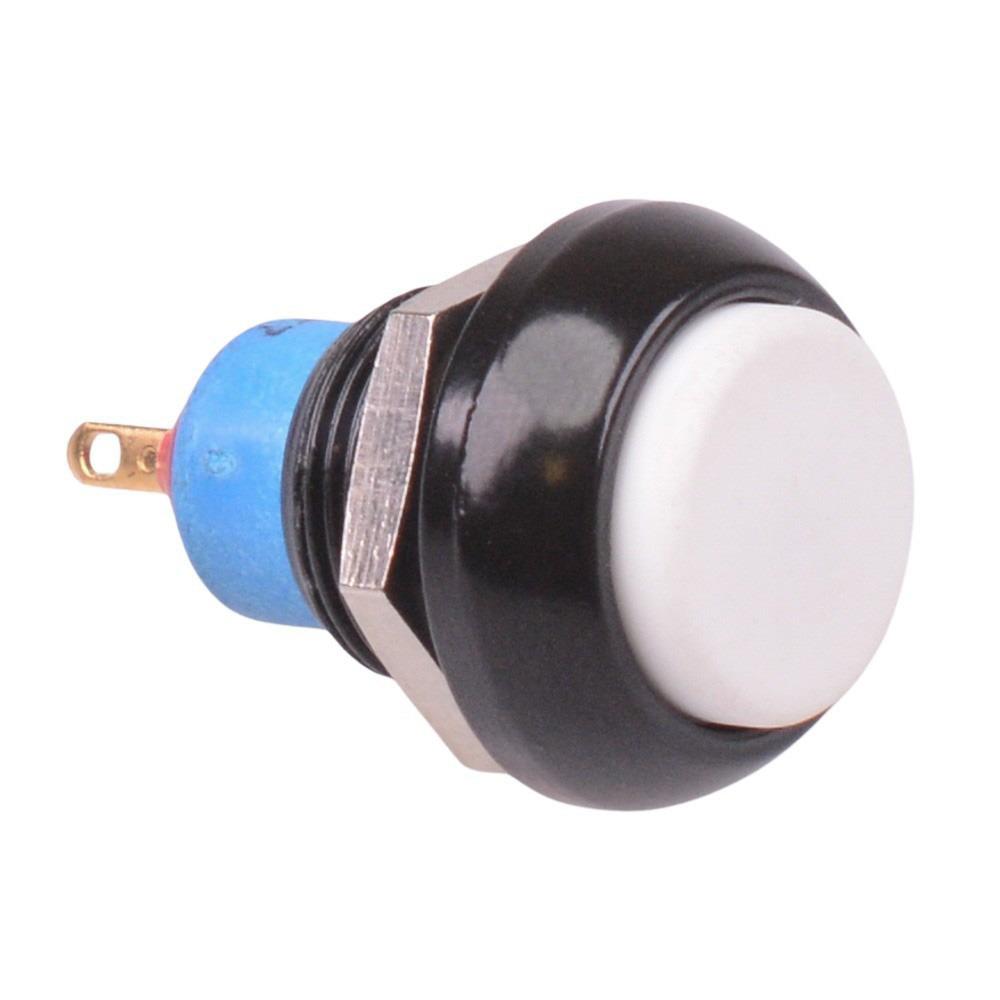

The IPP3SAD7/1 is a white momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and NO contacts, suitable for applications in harsh environments including automotive.

  • Momentary NO operation
  • Solder lug terminals
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Gold plated silver contacts
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 25.4 x 17.5mm (height x diameter)

    • IPP3SAD7/1 White Round Momentary NO 12mm Push Button Switch SPST IP67
