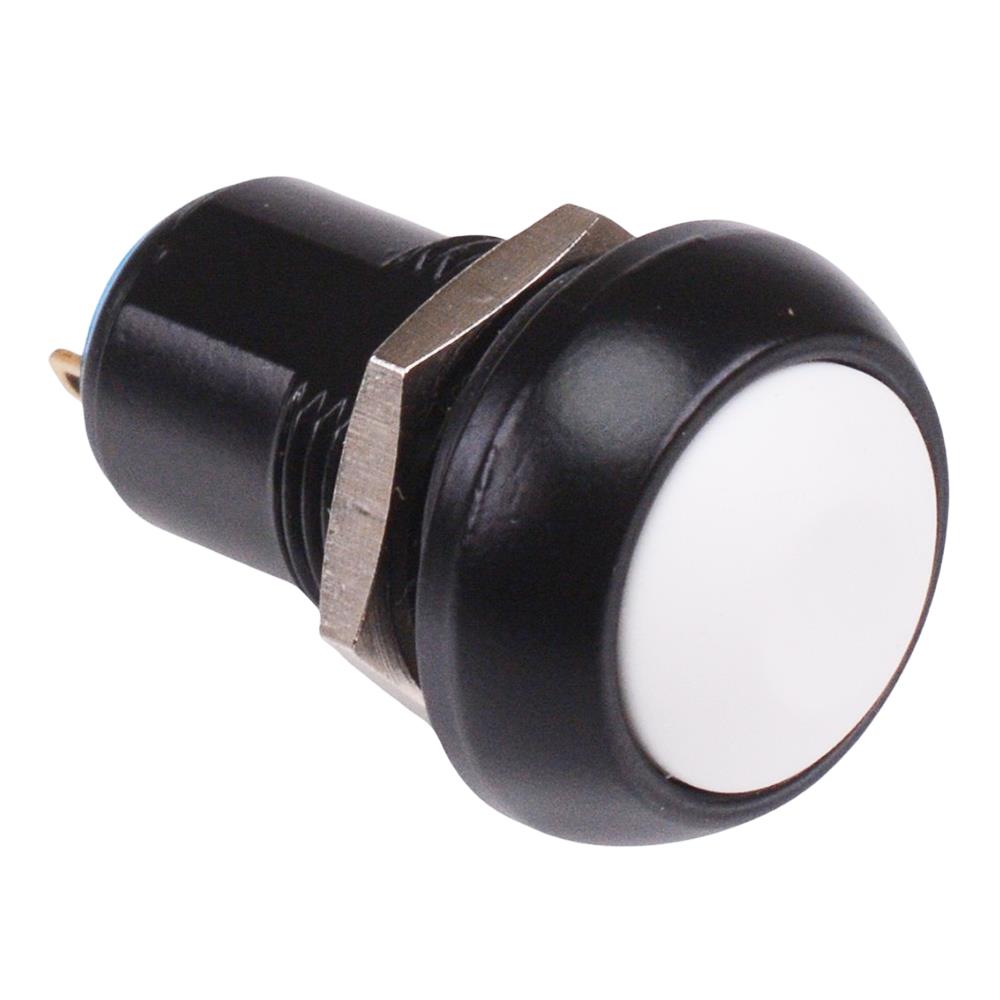

IPR1SAD7/1 White Latching 12mm Push Button Switch SPST IP67

IPR1SAD7/1 White Latching 12mm Push Button Switch SPST IP67
IPR1SAD7/1 White Latching 12mm Push Button Switch SPST IP67
from
$21.37
Ex Tax: $21.37
10 or more $19.02
25 or more $17.95
50 or more $16.88
100 or more $16.03
  • Stock: In Stock
  • Model: SCJ014020
  • SKU: SCJ014020
Products Sold: 0
Product Views: 24
  • Specifications
Attributes List
ActuationLatching
ColourWhite
Contact ConfigurationSPST
Contact Rating4A 12VDC, 3A 48VDC, 1A 72VDC
Current Rating4A @ 12VDC
IlluminatedNo
Illumination ColourNon Illuminated
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force10N
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-5.5mm
Product SeriesIP
Switch OperationOn-Off
Terminal TypeSolder
Voltage Rating72VDC
  • Description
The IPR1SAD7/1 is a white latching push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

  • Latching operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Back of panel space requirement: 19.1mm minimum
  • Dimensions: 27.6 x 17.5mm (length x diameter)
  • IPR1SAD7/1 White Latching 12mm Push Button Switch SPST IP67
