IPR3FAD1L0G Green LED Round Momentary NO Prewired Push Button Switch SPST IP67
from
$16.47
Ex Tax: $16.47
10 or more $14.66
25 or more $13.83
50 or more $13.00
100 or more $12.35
- Stock: In Stock
- Model: SCJ014283
- SKU: SCJ014283
Products Sold: 0
Product Views: 19
Ask a Question About This Product
- Description

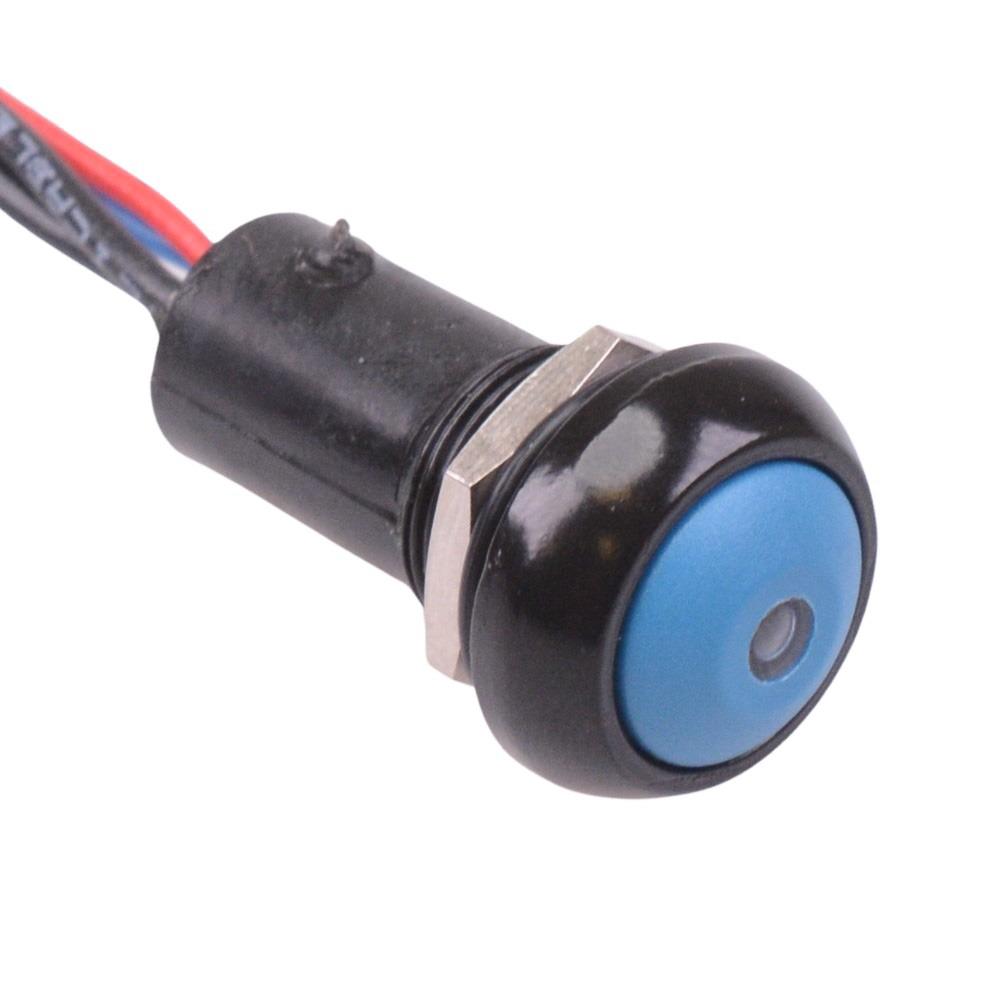

The IPR3FAD1L0G is an illuminated blue button momentary round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary operation Blue button Green LED LED forward voltage: 2.1V LED forward current: 20mA SPST-NO contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm 500mm flying leads Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 29.8 x 17.5mm (height x diameter)
