IPR3FAD1L0S Red LED Round Momentary NO Prewired Push Button Switch SPST IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
Current Rating	5A
Illuminated	Yes
Illumination Colour	Red
Illumination Voltage	2.1V
Material	Zinc Diecast
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-4mm
Product Series	IP
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	28VDC / 48VAC

Description

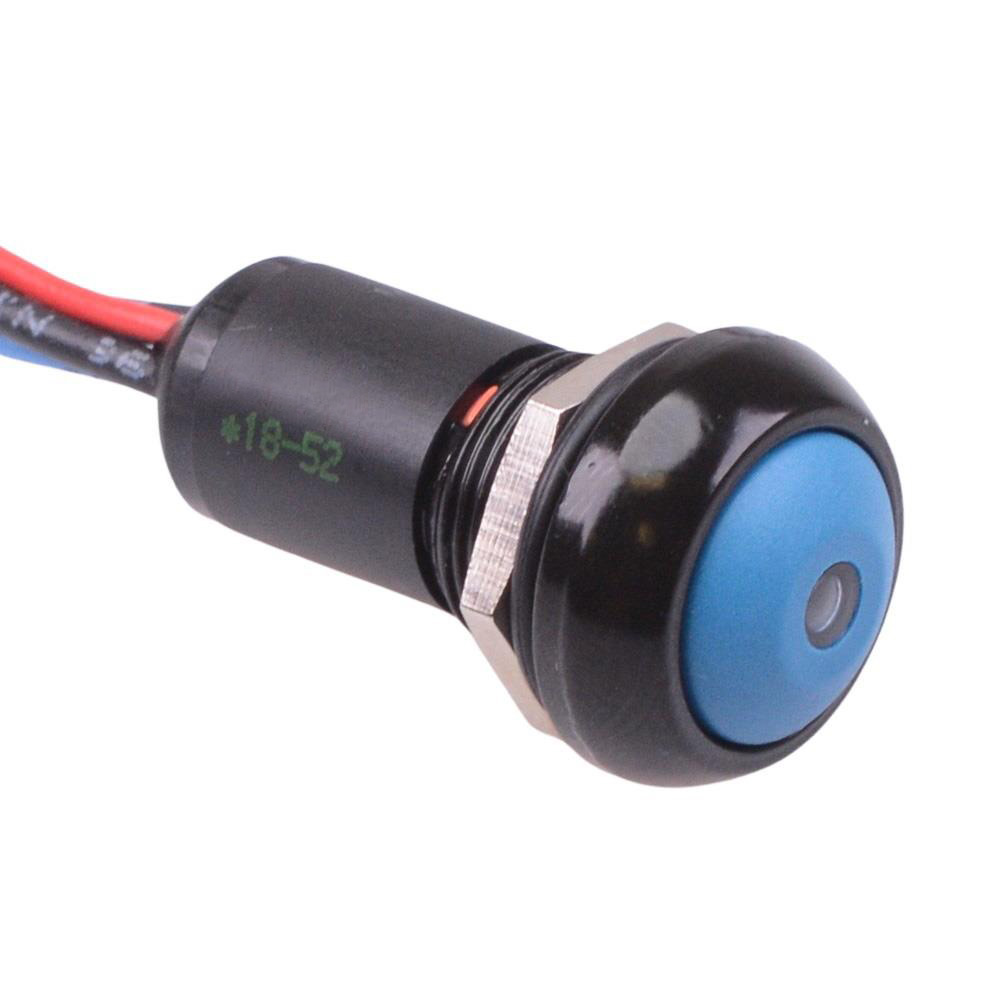

The IPR3FAD1L0G is an illuminated blue button momentary round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

Momentary operation

Blue button

Red LED

LED forward voltage: 2.1V

LED forward current: 20mA

SPST-NO contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Gold plated silver contacts

Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Dimensions: 29.8 x 17.5mm (height x diameter)
