IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67

IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67
IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67
IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67
IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67
IPR3SAD3L0S Red LED Green Round Momentary NO Push Button Switch SPST IP67
0 reviews - Write a review
from
$24.49
Ex Tax: $24.49
10 or more $21.80
25 or more $20.57
50 or more $19.34
100 or more $18.36
  • Stock: In Stock
  • Model: SCJ014307
  • SKU: SCJ014307
Products Sold: 0
Product Views: 23
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourGreen
Contact ConfigurationSPST
Contact MaterialGold Plated Silver
Contact Rating5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
Current Rating5A
IlluminatedYes
Illumination ColourRed
Illumination Voltage2.1V
MaterialZinc Diecast
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force4N
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-4mm
Product SeriesIP
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating28VDC / 48VAC
  • Description

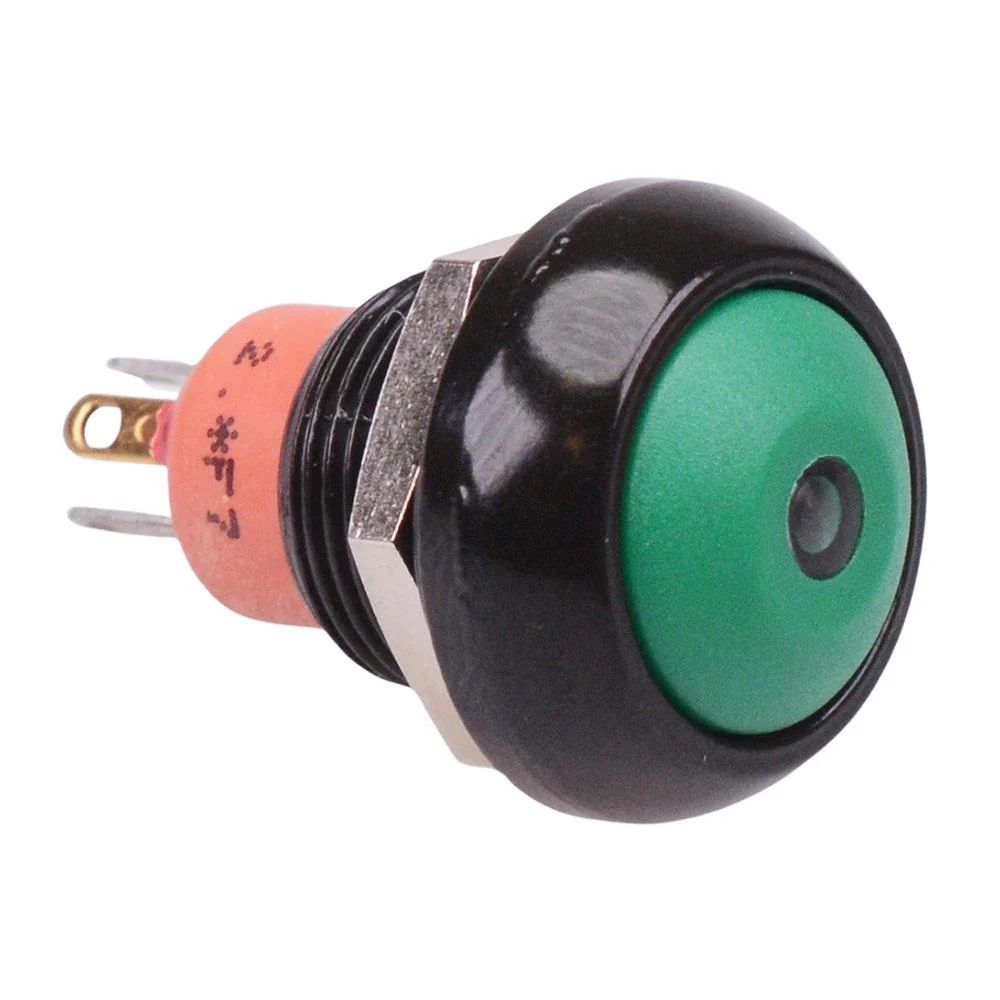

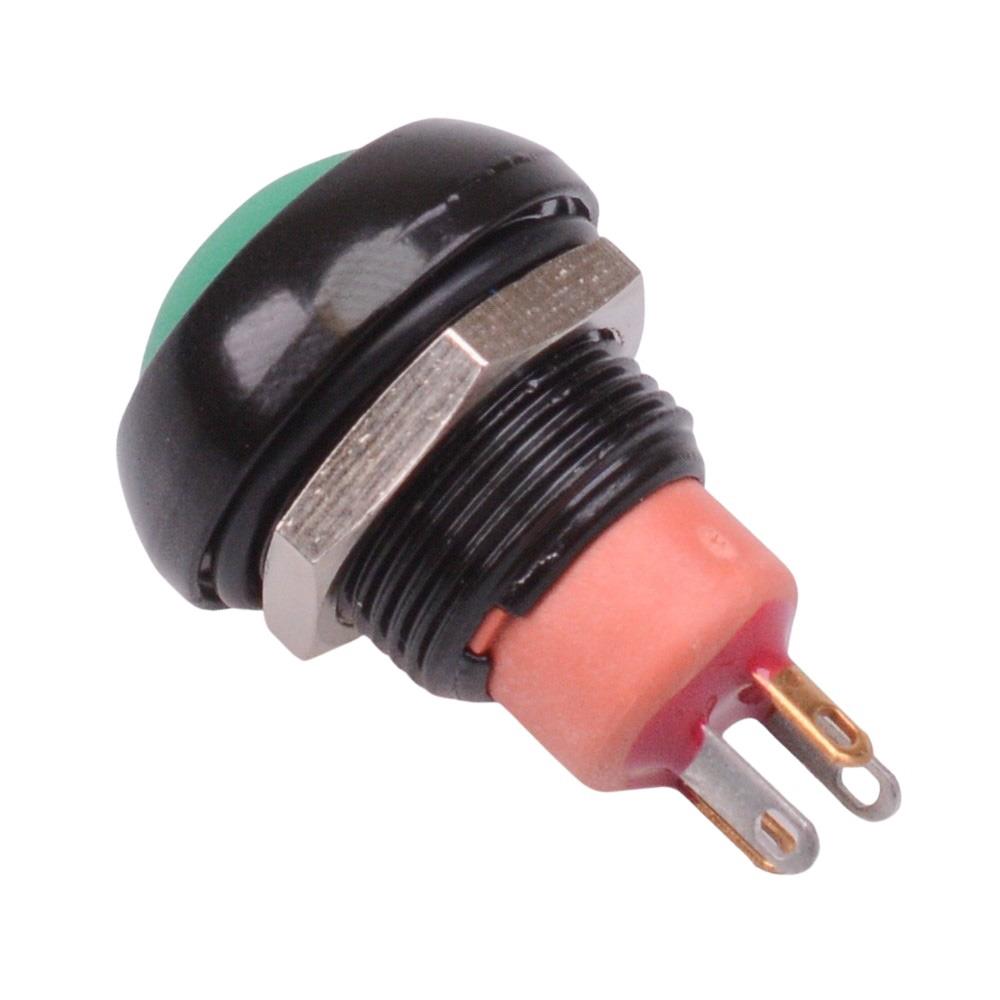

The IPR3SAD3L0S is a green momentary round push button switch with a 12mm bushing and red LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Momentary NO operation
  • Red LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Gold plated silver contacts
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 26.3 x 17.5mm (height x diameter)
