IPR3SAD5L0G Green LED Yellow Round Momentary 12mm Push Button Switch SPST IP67
from
$16.14
Ex Tax: $16.14
10 or more $14.36
25 or more $13.56
50 or more $12.75
100 or more $12.11
- Stock: In Stock
- Model: SCJ014199
- SKU: SCJ014199
Products Sold: 0
Product Views: 26
Ask a Question About This Product
- Description

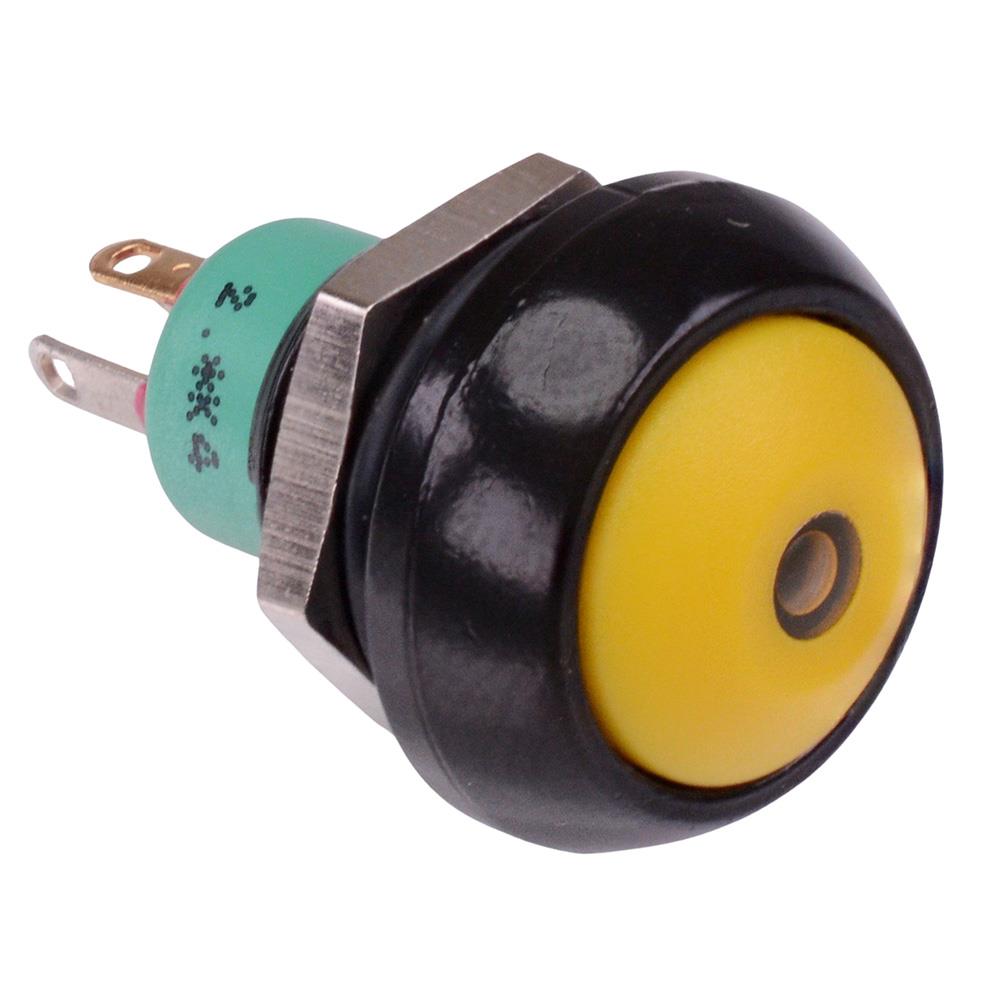

The IPR3SAD5L0G is a yellow momentary round push button switch with a 12mm bushing and green LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary NO operation Green LED LED forward voltage: 2.1V LED forward current: 20mA Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 27.3 x 17.5mm (height x diameter)
