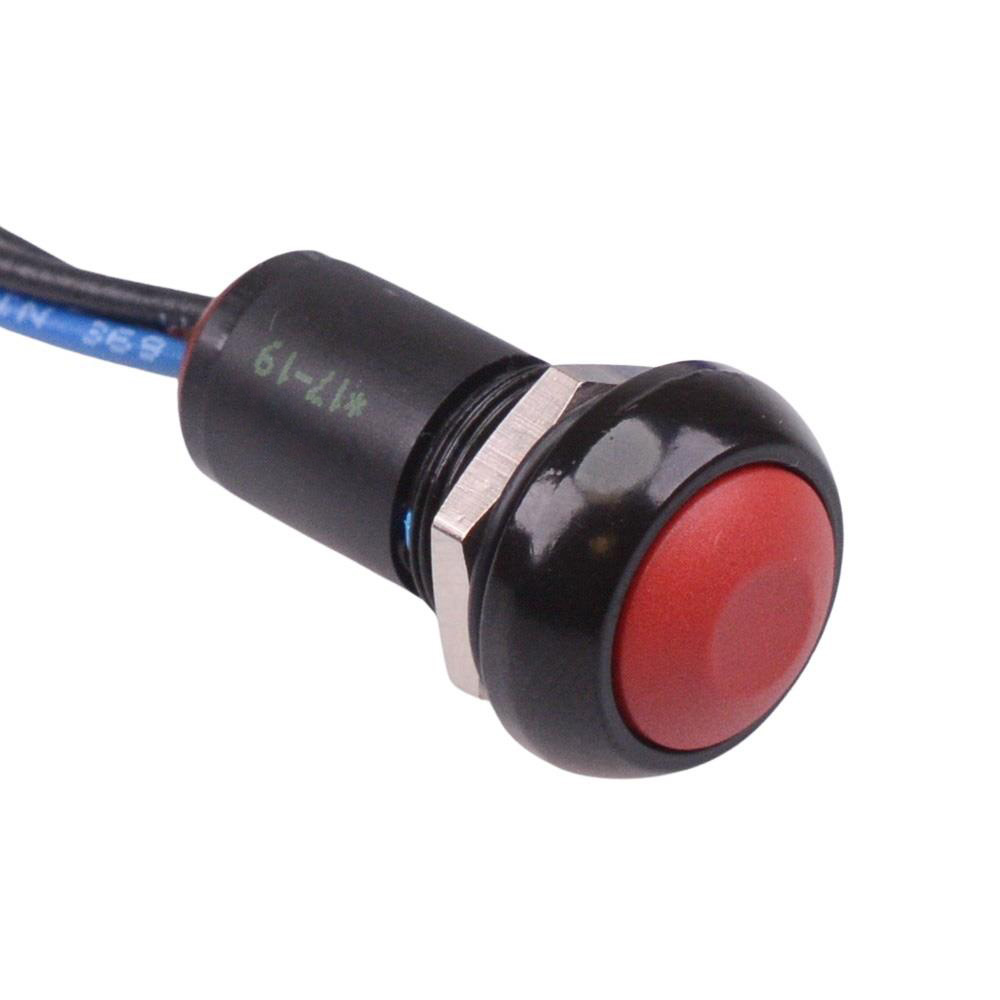

IPR5FAD6 Red Momentary NO/NC Prewired Push Button Switch IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	NO/NC
Contact Material	Gold Plated Silver
Contact Rating	5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
Current Rating	5A
Illuminated	No
Material	Zinc Diecast
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-4mm
Product Series	IP
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	28VDC / 48VAC

Description

The IPR5FAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and NO/NC contacts, suitable for applications in harsh environments.

Momentary operation

NO/NC contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Gold plated silver contacts

Panel thickness: 1.5-4mm

Dimensions: 27.0 x 17.5mm (length x diameter)
