IPR5SAD3 Green Momentary 12mm Push Button Switch SPDT IP67
from
$17.20
Ex Tax: $17.20
10 or more $15.31
25 or more $14.45
50 or more $13.58
100 or more $12.91
- Stock: In Stock
- Model: SCJ014026
- SKU: SCJ014026
Products Sold: 0
Product Views: 24
Ask a Question About This Product
- Description

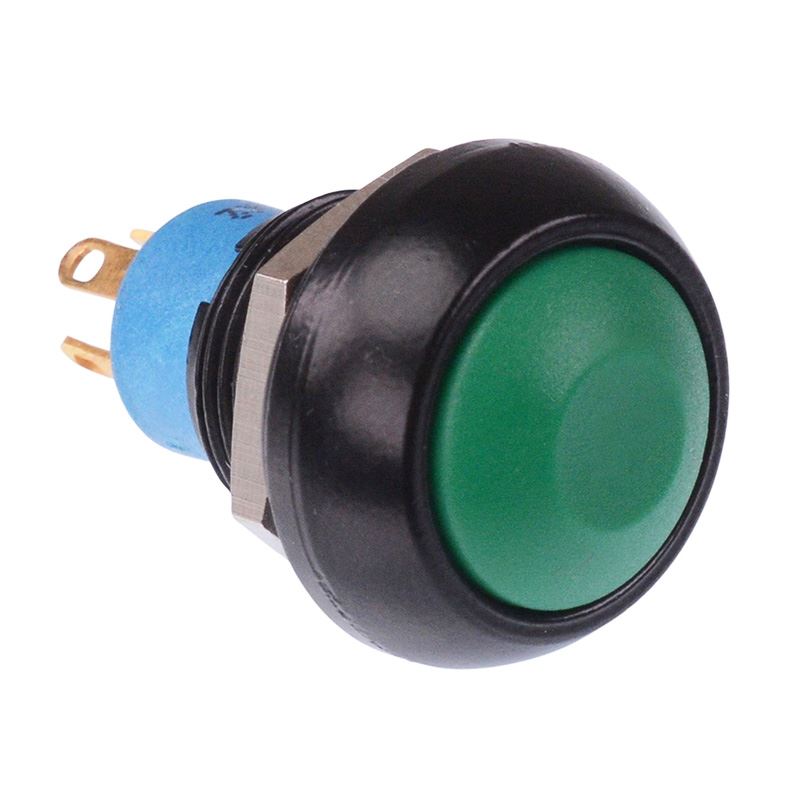

The IPR5SAD3 is a green momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPDT contacts, suitable for applications in harsh environments.
Momentary operation SPDT contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Back of panel space requirement: 17.5mm minimum Dimensions: 23.4 x 17.5mm (length x diameter)
