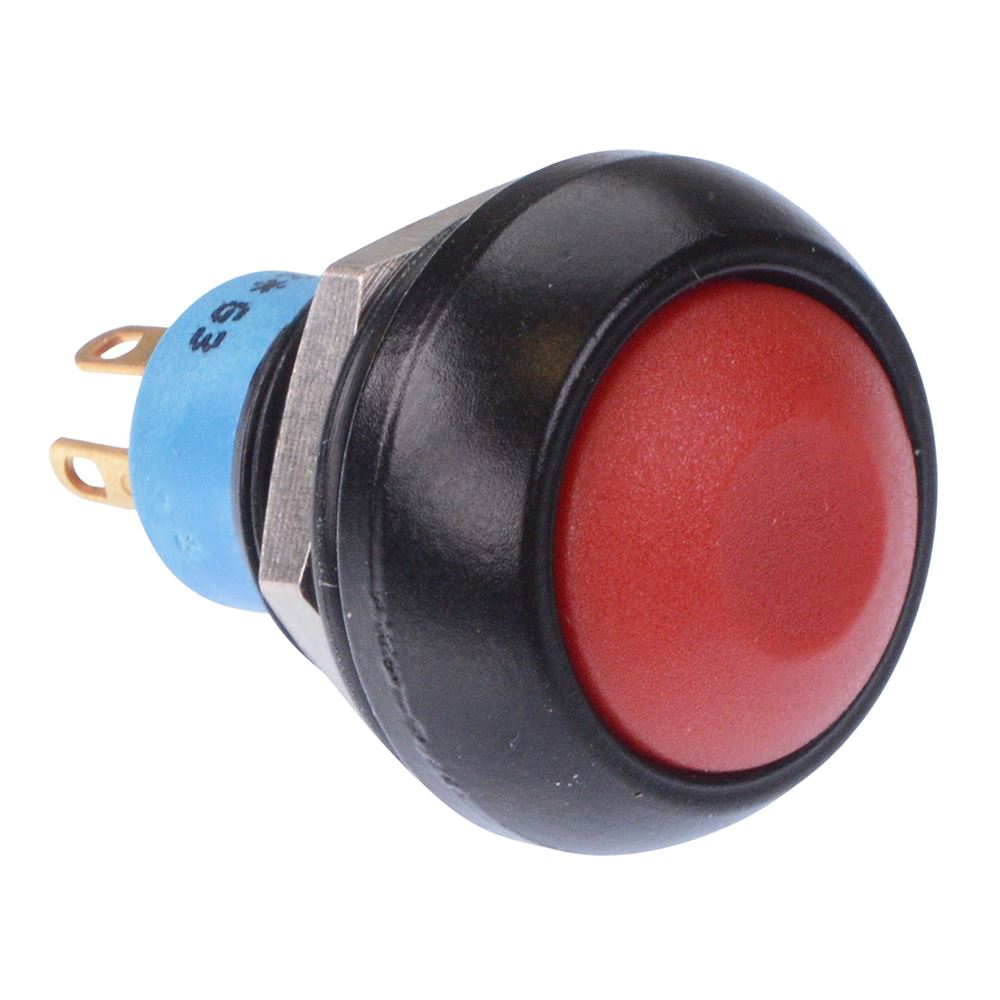

IPR5SAD6 Red Momentary 12mm Push Button Switch SPDT IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPDT
Contact Rating	0.5A 28VDC, 0.2A 48VDC
Current Rating	0.5A @ 28VDC
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-4mm
Product Series	IP
Terminal Type	Solder
Voltage Rating	48VDC

Description

The IPR5SAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPDT contacts, suitable for applications in harsh environments.

Momentary operation

SPDT contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Back of panel space requirement: 17.5mm minimum

Dimensions: 23.4 x 17.5mm (length x diameter)
