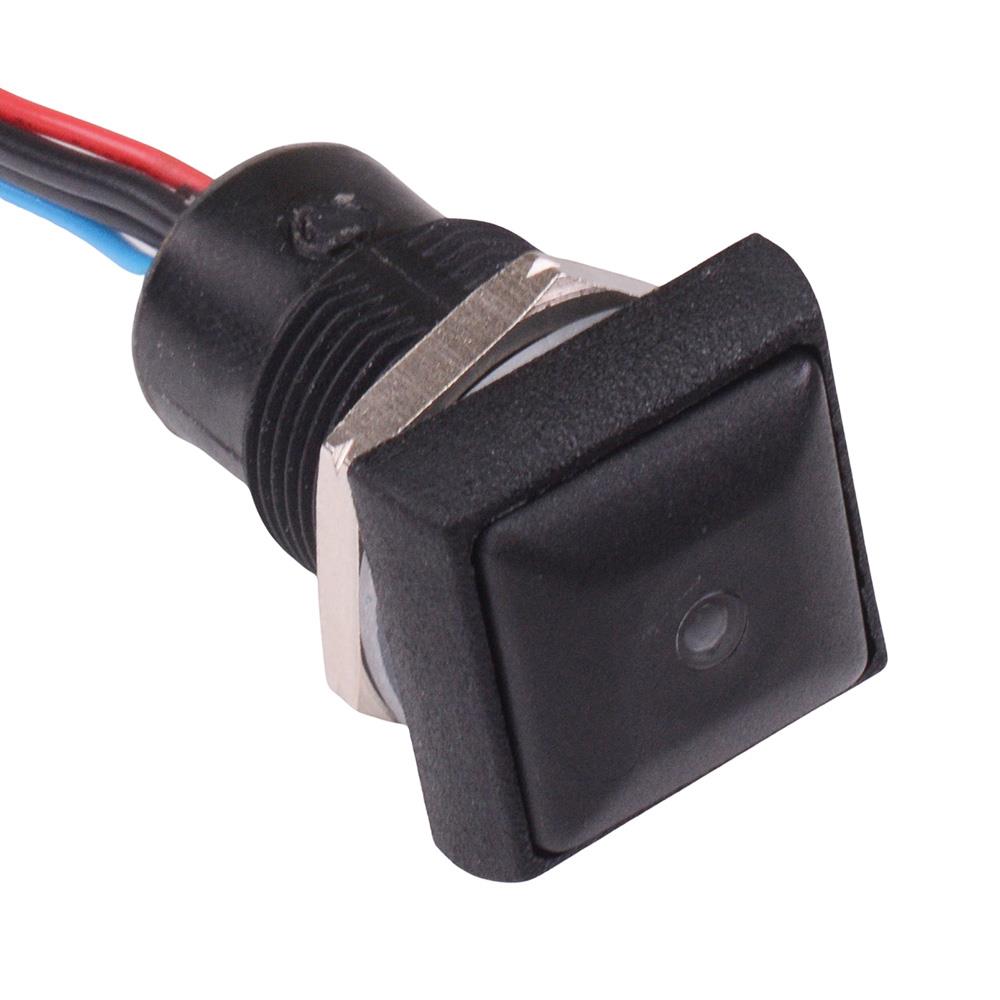

IRC3F422L0Y Yellow LED Black Button Square 16mm Momentary NO Push Button Switch Prewired IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	0.2A 48VDC
Current Rating	0.2A
Illuminated	Yes
Electrical Life	500,000 Cycles
Illumination Colour	Yellow
Illumination Voltage	2.1VDC
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	48VDC

Description

The IRC3F422L0Y is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: black

LED colour: yellow

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
