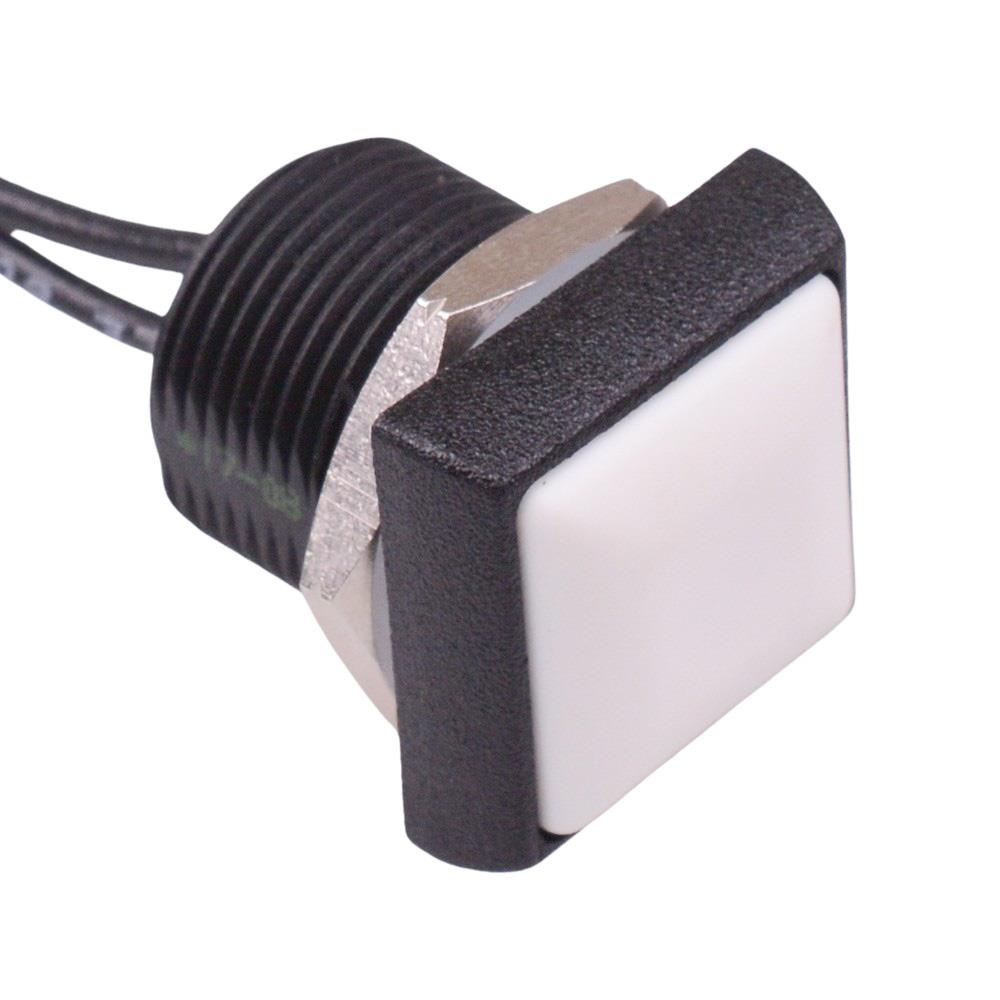

White Square 16mm Momentary NO Push Button Switch Prewired IP67 IRC3F472

White Square 16mm Momentary NO Push Button Switch Prewired IP67 IRC3F472
White Square 16mm Momentary NO Push Button Switch Prewired IP67 IRC3F472
from
$20.71
Ex Tax: $20.71
10 or more $18.43
25 or more $17.39
50 or more $16.36
100 or more $15.53
  • Stock: In Stock
  • Model: SCJ014289
  • SKU: SCJ014289
Products Sold: 0
Product Views: 78
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourWhite
Contact ConfigurationSPST
Contact MaterialGold Plated Silver
Contact Rating200mA 48VDC
Current Rating0.2A
IlluminatedNo
MaterialPA66
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force4N
Operating Temperature-40°C to +85°C
Panel Cut Out16.2mm
Panel Thickness8mm
Product SeriesIR
Switch OperationOff-(On)
Terminal TypeFlying Leads
Voltage Rating48VDC
  • Description

White Square 16mm Momentary NO Push Button Switch Prewired IP67 IRC3F472

The IRC3F472 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features gold plated silver contacts is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

  • Button colour: white
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals: 500mm flying leads
  • Contact rating: 200mA 48VDC
  • Gold plated silver contacts
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
  • IRC3F472 White Square 16mm Momentary NO Push Button Switch Prewired IP67
